SDO HMI 2014-02-26 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.95 | 105.68 | 46.44 | 261.79 | -25.88 | 91.01 | -80.52 | 115.03 | 0.9801 | -73.9 | -102.4 | |
|
previous
or next observation for the same group /

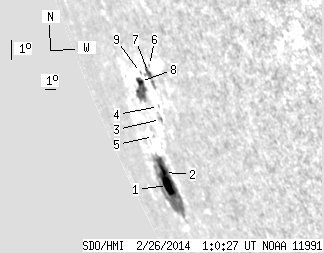

back to the solar disc SDO HMI 2014-02-26 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.85 | 74.67 | 28.50 | 196.56 | -26.66 | 90.06 | -81.47 | 115.87 | 0.9831 | -126.1 | -90.5 | |
| 2.76 | -1.00 | 7.00 | -1.00 | -26.30 | 90.60 | -80.93 | 115.48 | 0.9816 | -477.4 | 999999 | |
| 0.00 | 1.98 | 0.00 | 4.08 | -24.91 | 93.53 | -77.99 | 113.96 | 0.9719 | -266.0 | -204.7 | |
| 0.00 | 0.86 | 0.00 | 1.72 | -24.54 | 94.01 | -77.51 | 113.57 | 0.9701 | -67.0 | 30.6 | |
| 0.00 | 0.69 | 0.00 | 1.63 | -25.22 | 91.52 | -80.00 | 114.35 | 0.9788 | -386.0 | -365.4 | |
| 0.00 | 0.69 | 0.00 | 1.30 | -23.33 | 95.05 | -76.47 | 112.30 | 0.9661 | 382.0 | 364.5 | |
| 2.50 | 8.53 | 4.85 | 16.65 | -23.51 | 94.59 | -76.94 | 112.49 | 0.9680 | 485.1 | 260.3 | |
| 2.84 | 17.57 | 6.09 | 38.43 | -23.62 | 93.11 | -78.41 | 112.65 | 0.9736 | 162.5 | -303.3 | |
| 0.00 | 0.69 | 0.00 | 1.42 | -23.39 | 93.61 | -77.92 | 112.39 | 0.9718 | 129.0 | 120.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
