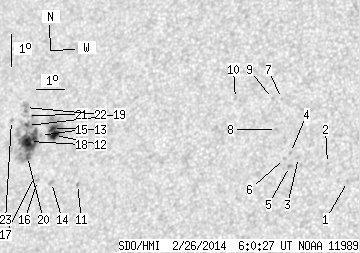

SDO HMI 2014-02-26 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.45 | 120.40 | 20.32 | 77.13 | 8.45 | 132.72 | -36.07 | 67.05 | 0.6341 | 376.7 | 251.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | 6.46 | 143.08 | -25.71 | 62.59 | 0.4876 | -740.0 | -681.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 7.05 | 142.38 | -26.41 | 62.19 | 0.5011 | -696.0 | -514.1 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 7.29 | 141.39 | -27.40 | 62.66 | 0.5160 | -657.0 | -534.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 7.46 | 141.11 | -27.68 | 62.62 | 0.5209 | -803.0 | -637.4 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 7.04 | 141.10 | -27.69 | 63.36 | 0.5180 | -854.0 | -781.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 7.29 | 140.92 | -27.87 | 63.08 | 0.5222 | -618.0 | -481.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 9.15 | 140.67 | -28.12 | 60.19 | 0.5384 | -702.0 | -555.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 8.20 | 140.58 | -28.21 | 61.83 | 0.5329 | -677.0 | -586.3 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 9.17 | 140.36 | -28.43 | 60.43 | 0.5425 | -708.0 | -518.9 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 9.25 | 139.08 | -29.71 | 61.40 | 0.5593 | -623.0 | -432.3 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 6.99 | 133.66 | -35.14 | 68.74 | 0.6152 | -529.0 | -455.5 | |
| 5.00 | 29.22 | 3.20 | 18.73 | 8.57 | 132.65 | -36.14 | 66.99 | 0.6359 | 1130.2 | 507.3 | |
| 2.84 | -12.00 | 1.83 | -12.00 | 8.79 | 132.55 | -36.24 | 66.73 | 0.6383 | 1033.5 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.59 | 7.13 | 132.68 | -36.11 | 69.10 | 0.6282 | 721.0 | 549.7 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 8.61 | 132.12 | -36.67 | 67.24 | 0.6426 | 789.0 | 642.3 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 7.23 | 132.15 | -36.64 | 69.25 | 0.6354 | 737.0 | 595.5 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 7.36 | 132.03 | -36.76 | 69.12 | 0.6376 | 549.0 | 531.0 | |
| 20.51 | 65.59 | 13.28 | 42.55 | 8.46 | 131.73 | -37.06 | 67.69 | 0.6467 | 833.4 | 292.3 | |
| 1.12 | -18.00 | 0.73 | -18.00 | 8.96 | 131.59 | -37.20 | 67.05 | 0.6508 | 505.9 | 999999 | |
| 1.98 | -18.00 | 1.28 | -18.00 | 8.00 | 131.70 | -37.09 | 68.37 | 0.6447 | 849.1 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.74 | 9.27 | 131.55 | -37.24 | 66.63 | 0.6529 | 531.0 | 343.2 | |
| 0.00 | 4.57 | 0.00 | 2.99 | 9.53 | 131.45 | -37.34 | 66.33 | 0.6555 | 80.0 | 118.4 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 9.17 | 130.96 | -37.83 | 67.12 | 0.6595 | 603.0 | 479.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
