SDO HMI 2014-02-26 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.95 | 25.00 | 8.89 | 36.42 | 15.53 | 101.82 | -66.97 | 70.56 | 0.9416 | -41.4 | 51.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

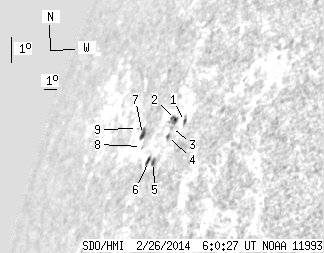

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 2.56 | 15.77 | 103.60 | -65.19 | 69.87 | 0.9320 | -192.0 | -192.5 | |
| 1.03 | 5.52 | 1.45 | 7.77 | 15.93 | 102.82 | -65.97 | 69.91 | 0.9367 | -383.2 | -32.3 | |
| 0.00 | 3.27 | 0.00 | 4.60 | 15.70 | 102.66 | -66.13 | 70.19 | 0.9373 | 361.0 | 215.2 | |
| 0.00 | 2.07 | 0.00 | 2.91 | 15.43 | 102.53 | -66.26 | 70.50 | 0.9376 | 393.0 | 279.8 | |
| 0.95 | 2.41 | 1.36 | 3.47 | 14.68 | 101.90 | -66.90 | 71.43 | 0.9401 | 501.3 | 428.2 | |
| 1.38 | 2.93 | 2.03 | 4.31 | 14.77 | 101.44 | -67.35 | 71.45 | 0.9428 | 244.3 | 189.8 | |
| 2.59 | 5.52 | 4.05 | 8.63 | 15.76 | 100.27 | -68.52 | 70.71 | 0.9503 | -334.0 | -124.2 | |
| 0.00 | 0.86 | 0.00 | 1.33 | 15.36 | 100.47 | -68.32 | 71.07 | 0.9487 | -332.0 | -288.7 | |
| 0.00 | 0.52 | 0.00 | 0.84 | 16.03 | 99.64 | -69.15 | 70.58 | 0.9538 | -74.0 | -79.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
