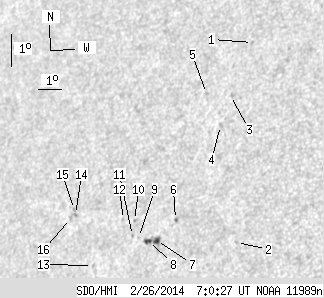

SDO HMI 2014-02-26 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.96 | 23.80 | 2.79 | 16.87 | 5.11 | 124.27 | -43.97 | 75.53 | 0.7165 | -217.1 | -164.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.77 | 9.72 | 127.85 | -40.40 | 67.76 | 0.6925 | -494.0 | -418.6 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 3.62 | 127.82 | -40.42 | 76.32 | 0.6684 | -534.0 | -487.2 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 8.14 | 127.18 | -41.06 | 70.23 | 0.6933 | -601.0 | -583.6 | |
| 0.00 | 2.15 | 0.00 | 1.48 | 7.25 | 126.89 | -41.35 | 71.59 | 0.6932 | -652.0 | -499.6 | |
| 0.00 | 1.21 | 0.00 | 0.84 | 8.29 | 126.20 | -42.04 | 70.49 | 0.7054 | -593.0 | -407.2 | |
| 0.00 | 1.21 | 0.00 | 0.84 | 4.53 | 125.32 | -42.92 | 75.98 | 0.7021 | -653.0 | -549.9 | |
| 1.98 | 8.53 | 1.39 | 5.99 | 3.96 | 124.58 | -43.66 | 77.03 | 0.7091 | -795.3 | -592.2 | |
| 1.98 | -7.00 | 1.40 | -7.00 | 3.96 | 124.25 | -43.99 | 77.15 | 0.7131 | -680.3 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 4.12 | 123.82 | -44.42 | 77.08 | 0.7186 | -427.0 | -382.8 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 4.65 | 123.62 | -44.63 | 76.43 | 0.7227 | 710.0 | 526.2 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 4.20 | 123.57 | -44.68 | 77.05 | 0.7219 | -361.0 | -254.9 | |
| 0.00 | 1.21 | 0.00 | 0.87 | 4.72 | 123.15 | -45.10 | 76.49 | 0.7283 | 500.0 | 480.0 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 3.45 | 121.91 | -46.33 | 78.59 | 0.7390 | -444.0 | -429.3 | |
| 0.00 | 1.47 | 0.00 | 1.10 | 5.07 | 121.04 | -47.20 | 76.74 | 0.7533 | 787.0 | 654.9 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 5.23 | 120.98 | -47.26 | 76.56 | 0.7544 | 609.0 | 546.3 | |
| 0.00 | 1.38 | 0.00 | 1.04 | 4.97 | 120.83 | -47.42 | 76.94 | 0.7553 | 566.0 | 475.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
