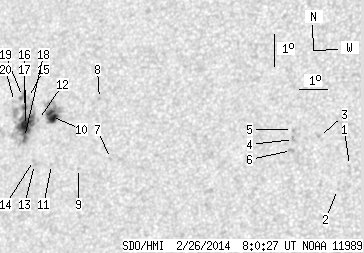

SDO HMI 2014-02-26 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.48 | 106.02 | 15.57 | 66.91 | 8.42 | 132.76 | -34.94 | 66.39 | 0.6197 | 462.0 | 279.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.53 | 6.46 | 143.11 | -24.58 | 61.49 | 0.4724 | -664.0 | -493.9 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 5.75 | 142.75 | -24.94 | 63.19 | 0.4721 | -660.0 | -597.0 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 7.41 | 142.07 | -25.63 | 60.82 | 0.4933 | -633.0 | -590.4 | |
| 0.00 | 2.84 | 0.00 | 1.63 | 7.37 | 141.20 | -26.49 | 61.72 | 0.5044 | -768.0 | -673.4 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 7.67 | 141.15 | -26.55 | 61.23 | 0.5074 | -642.0 | -588.5 | |
| 0.00 | 2.59 | 0.00 | 1.48 | 7.03 | 141.16 | -26.54 | 62.35 | 0.5027 | -916.0 | -730.7 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 7.19 | 134.90 | -32.80 | 66.98 | 0.5861 | 749.0 | 565.2 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 9.08 | 134.33 | -33.37 | 64.46 | 0.6042 | 615.0 | 550.1 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 6.97 | 133.77 | -33.93 | 68.06 | 0.5996 | -529.0 | -429.8 | |
| 8.79 | 26.89 | 5.55 | 17.00 | 8.65 | 132.63 | -35.07 | 66.23 | 0.6230 | 1071.9 | 469.0 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 7.16 | 132.77 | -34.93 | 68.37 | 0.6134 | 742.0 | 610.8 | |
| 0.00 | 0.34 | 0.00 | 0.22 | 8.59 | 132.16 | -35.54 | 66.61 | 0.6286 | 708.0 | 660.8 | |
| 0.00 | 1.38 | 0.00 | 0.87 | 7.21 | 132.14 | -35.55 | 68.67 | 0.6216 | 712.0 | 549.4 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 7.34 | 132.10 | -35.60 | 68.50 | 0.6229 | 733.0 | 648.0 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 9.30 | 131.70 | -36.00 | 65.85 | 0.6379 | 481.0 | 427.7 | |
| 12.67 | 56.80 | 8.09 | 36.32 | 8.44 | 131.69 | -36.01 | 67.11 | 0.6336 | 876.7 | 357.4 | |
| 1.90 | -16.00 | 1.22 | -16.00 | 9.00 | 131.59 | -36.11 | 66.35 | 0.6377 | 544.8 | 999999 | |
| 1.12 | -16.00 | 0.71 | -16.00 | 8.07 | 131.69 | -36.01 | 67.65 | 0.6317 | 886.4 | 999999 | |
| 0.00 | 3.96 | 0.00 | 2.55 | 9.35 | 131.47 | -36.22 | 65.92 | 0.6410 | 522.0 | 385.2 | |
| 0.00 | 2.15 | 0.00 | 1.39 | 9.22 | 131.19 | -36.51 | 66.28 | 0.6438 | -202.0 | -159.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
