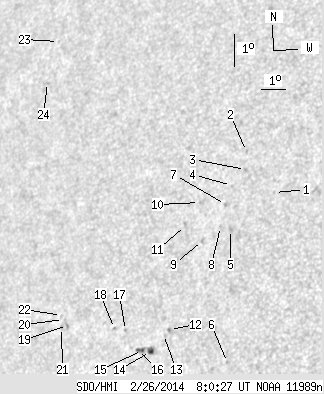

SDO HMI 2014-02-26 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 31.78 | 2.57 | 22.21 | 6.37 | 125.00 | -42.70 | 73.35 | 0.7057 | -296.9 | -285.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.74 | 8.36 | 129.16 | -38.54 | 68.65 | 0.6641 | -482.0 | -462.9 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 9.73 | 127.90 | -39.80 | 67.43 | 0.6856 | -514.0 | -376.8 | |
| 0.00 | 1.47 | 0.00 | 0.99 | 9.17 | 127.94 | -39.76 | 68.17 | 0.6826 | -668.0 | -468.2 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 8.72 | 127.44 | -40.26 | 69.04 | 0.6863 | -692.0 | -565.8 | |
| 0.00 | 2.33 | 0.00 | 1.57 | 7.36 | 127.57 | -40.13 | 70.86 | 0.6790 | -617.0 | -426.2 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 3.31 | 127.76 | -39.93 | 76.59 | 0.6611 | -688.0 | -607.5 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 8.15 | 127.28 | -40.42 | 69.91 | 0.6858 | -670.0 | -599.4 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 7.49 | 127.16 | -40.54 | 70.88 | 0.6844 | -464.0 | -428.6 | |
| 0.00 | 2.15 | 0.00 | 1.47 | 7.12 | 126.48 | -41.22 | 71.71 | 0.6910 | -483.0 | -407.6 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 8.30 | 126.22 | -41.48 | 70.21 | 0.6989 | -629.0 | -465.9 | |
| 0.00 | 2.50 | 0.00 | 1.73 | 7.64 | 125.74 | -41.96 | 71.33 | 0.7018 | -381.0 | -310.8 | |
| 0.00 | 1.64 | 0.00 | 1.12 | 4.51 | 125.39 | -42.30 | 75.78 | 0.6945 | -643.0 | -563.4 | |
| 0.00 | 0.43 | 0.00 | 0.30 | 4.37 | 125.16 | -42.54 | 76.05 | 0.6969 | -396.0 | -433.6 | |
| 2.41 | 8.27 | 1.67 | 5.75 | 3.90 | 124.66 | -43.04 | 76.89 | 0.7015 | -730.0 | -568.5 | |
| 0.78 | -14.00 | 0.54 | -14.00 | 3.96 | 124.33 | -43.37 | 76.92 | 0.7056 | -710.3 | 999999 | |
| 0.52 | -14.00 | 0.36 | -14.00 | 4.01 | 124.12 | -43.58 | 76.93 | 0.7083 | -631.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 4.64 | 123.58 | -44.12 | 76.27 | 0.7166 | 713.0 | 598.7 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 4.74 | 123.11 | -44.59 | 76.30 | 0.7225 | 680.0 | 572.9 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 5.02 | 121.08 | -46.62 | 76.62 | 0.7466 | 738.0 | 596.5 | |
| 0.00 | 0.34 | 0.00 | 0.26 | 5.22 | 120.88 | -46.82 | 76.43 | 0.7493 | 435.0 | 498.5 | |
| 0.00 | 1.38 | 0.00 | 1.03 | 4.98 | 120.82 | -46.88 | 76.76 | 0.7494 | 551.0 | 454.2 | |
| 0.00 | 0.60 | 0.00 | 0.45 | 5.35 | 120.78 | -46.92 | 76.29 | 0.7508 | 426.0 | 340.0 | |
| 0.00 | 0.43 | 0.00 | 0.35 | 13.97 | 119.02 | -48.68 | 66.32 | 0.7980 | -448.0 | -361.2 | |
| 0.00 | 1.03 | 0.00 | 0.84 | 12.70 | 118.85 | -48.84 | 67.89 | 0.7950 | -602.0 | -482.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
