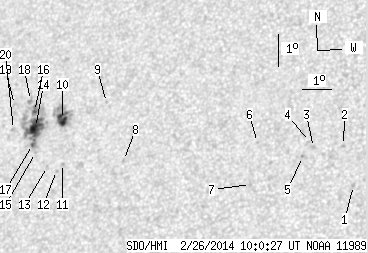

SDO HMI 2014-02-26 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.82 | 112.30 | 18.72 | 70.02 | 8.40 | 132.67 | -33.94 | 65.78 | 0.6071 | 459.8 | 278.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.91 | 6.00 | 142.83 | -23.77 | 61.55 | 0.4579 | -861.0 | -659.9 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 7.24 | 142.44 | -24.16 | 59.63 | 0.4726 | -827.0 | -657.9 | |
| 0.00 | 2.07 | 0.00 | 1.17 | 7.23 | 141.45 | -25.15 | 60.67 | 0.4857 | -913.0 | -636.6 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 7.42 | 141.31 | -25.30 | 60.47 | 0.4890 | -815.0 | -673.2 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 6.98 | 141.10 | -25.50 | 61.47 | 0.4884 | -739.0 | -709.4 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 7.49 | 139.57 | -27.04 | 62.00 | 0.5125 | -745.0 | -639.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 6.22 | 139.41 | -27.20 | 64.39 | 0.5059 | -781.0 | -542.8 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 7.24 | 134.98 | -31.63 | 66.11 | 0.5712 | 561.0 | 478.7 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 9.07 | 134.21 | -32.40 | 63.79 | 0.5920 | 618.0 | 569.0 | |
| 8.96 | 28.18 | 5.58 | 17.57 | 8.66 | 132.67 | -33.94 | 65.48 | 0.6089 | 1051.9 | 466.8 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 7.30 | 132.80 | -33.81 | 67.47 | 0.5998 | 771.0 | 619.1 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 7.10 | 132.60 | -34.01 | 67.91 | 0.6013 | 724.0 | 607.5 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 7.25 | 132.26 | -34.35 | 67.89 | 0.6064 | 567.0 | 503.1 | |
| 18.53 | 63.35 | 11.67 | 39.96 | 8.48 | 131.70 | -34.90 | 66.37 | 0.6200 | 828.2 | 321.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 7.71 | 131.78 | -34.83 | 67.48 | 0.6149 | 710.0 | 573.0 | |
| 1.38 | -14.00 | 0.87 | -14.00 | 8.98 | 131.61 | -34.99 | 65.69 | 0.6239 | 573.8 | 999999 | |
| 0.95 | -14.00 | 0.60 | -14.00 | 7.97 | 131.64 | -34.96 | 67.18 | 0.6180 | 791.5 | 999999 | |
| 0.00 | 3.10 | 0.00 | 1.97 | 9.34 | 131.42 | -35.18 | 65.29 | 0.6281 | 459.0 | 388.0 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 9.26 | 130.84 | -35.77 | 65.78 | 0.6349 | 375.0 | 294.5 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 8.48 | 130.89 | -35.72 | 66.87 | 0.6301 | 351.0 | 315.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
