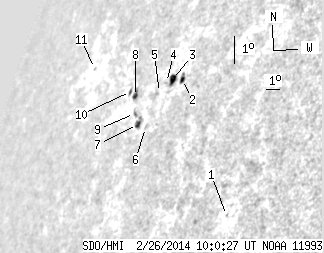

SDO HMI 2014-02-26 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.60 | 27.34 | 13.89 | 36.25 | 15.43 | 101.76 | -64.85 | 70.13 | 0.9288 | 2.6 | 80.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.87 | 11.02 | 108.59 | -58.01 | 73.00 | 0.8726 | 457.0 | 362.7 | |
| 1.81 | 3.71 | 2.23 | 4.56 | 15.81 | 103.82 | -62.79 | 69.19 | 0.9171 | -324.8 | -358.1 | |
| 4.05 | 6.38 | 5.12 | 8.06 | 15.90 | 103.08 | -63.52 | 69.30 | 0.9220 | -222.8 | 30.1 | |
| 0.00 | 0.60 | 0.00 | 0.78 | 15.85 | 102.69 | -63.92 | 69.46 | 0.9244 | 338.0 | 328.1 | |
| 0.00 | 0.52 | 0.00 | 0.67 | 15.57 | 102.35 | -64.26 | 69.84 | 0.9260 | 137.0 | 165.2 | |
| 0.00 | 1.21 | 0.00 | 1.57 | 14.52 | 101.94 | -64.67 | 71.05 | 0.9268 | 355.0 | 327.0 | |
| 2.24 | 5.00 | 3.01 | 6.70 | 14.69 | 101.25 | -65.35 | 71.04 | 0.9312 | 429.5 | 399.5 | |
| 1.81 | 4.40 | 2.54 | 6.17 | 15.66 | 100.51 | -66.09 | 70.22 | 0.9370 | -405.6 | -280.4 | |
| 0.00 | 1.90 | 0.00 | 2.60 | 15.09 | 100.79 | -65.82 | 70.74 | 0.9345 | 221.0 | 239.2 | |
| 0.69 | 1.90 | 0.99 | 2.73 | 15.88 | 99.98 | -66.63 | 70.13 | 0.9403 | -25.9 | -6.1 | |
| 0.00 | 0.86 | 0.00 | 1.54 | 17.10 | 95.94 | -70.66 | 69.83 | 0.9620 | 171.0 | 179.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
