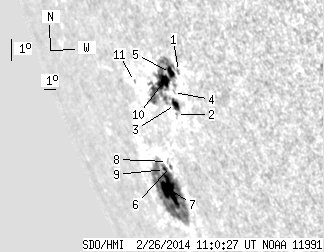

SDO HMI 2014-02-26 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.68 | 186.57 | 75.32 | 316.49 | -25.41 | 91.72 | -74.34 | 114.45 | 0.9560 | -55.8 | -44.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 2.14 | -23.31 | 95.99 | -70.06 | 112.27 | 0.9345 | 535.0 | 543.3 | |
| 0.00 | 1.21 | 0.00 | 1.79 | -24.50 | 94.25 | -71.81 | 113.50 | 0.9442 | 139.0 | 89.3 | |
| 4.74 | 70.49 | 6.94 | 104.59 | -24.21 | 94.55 | -71.51 | 113.20 | 0.9426 | 190.9 | -20.9 | |
| 0.00 | 0.52 | 0.00 | 0.75 | -23.85 | 94.82 | -71.24 | 112.83 | 0.9411 | 432.0 | 417.2 | |
| 5.52 | -3.00 | 7.81 | -3.00 | -23.26 | 95.27 | -70.78 | 112.20 | 0.9385 | 582.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 2.49 | -25.86 | 91.39 | -74.66 | 114.91 | 0.9582 | -528.0 | -496.3 | |
| 22.06 | 108.58 | 40.40 | 200.03 | -26.46 | 90.11 | -75.95 | 115.54 | 0.9637 | -361.0 | -51.4 | |
| 0.00 | 1.72 | 0.00 | 2.95 | -25.69 | 91.32 | -74.74 | 114.73 | 0.9585 | -442.0 | -436.4 | |
| 1.38 | -7.00 | 2.44 | -7.00 | -25.86 | 90.60 | -75.46 | 114.92 | 0.9616 | -483.0 | 999999 | |
| 11.98 | -3.00 | 17.73 | -3.00 | -23.44 | 94.33 | -71.73 | 112.38 | 0.9437 | 300.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.75 | -23.11 | 91.52 | -74.54 | 112.04 | 0.9577 | -115.0 | -117.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
