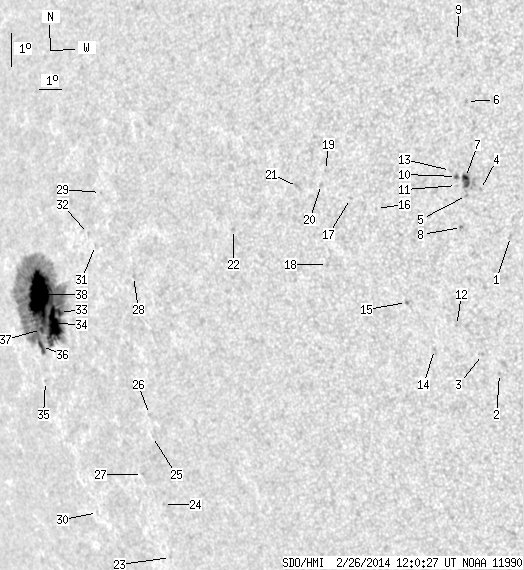

SDO HMI 2014-02-26 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.10 | 395.32 | 84.99 | 357.10 | -13.06 | 108.35 | -57.16 | 100.99 | 0.8331 | 222.1 | -46.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.02 | -12.96 | 128.39 | -37.12 | 102.06 | 0.6036 | 700.0 | 659.4 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -17.00 | 127.12 | -38.39 | 108.32 | 0.6279 | 615.0 | 543.8 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -16.39 | 126.59 | -38.92 | 107.22 | 0.6333 | 624.0 | 479.5 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -11.48 | 127.49 | -38.02 | 99.52 | 0.6143 | 793.0 | 569.2 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -11.62 | 126.93 | -38.58 | 99.69 | 0.6220 | 786.0 | 667.0 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -8.84 | 127.33 | -38.18 | 95.20 | 0.6156 | 606.0 | 538.4 | |
| 2.15 | 13.27 | 1.36 | 8.36 | -11.09 | 126.97 | -38.54 | 98.83 | 0.6210 | 839.9 | 734.0 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -12.55 | 126.57 | -38.94 | 101.15 | 0.6276 | 671.0 | 526.3 | |
| 0.00 | 1.38 | 0.00 | 0.87 | -7.04 | 127.19 | -38.33 | 92.28 | 0.6182 | 768.0 | 584.6 | |
| 0.60 | 2.41 | 0.38 | 1.53 | -11.03 | 126.63 | -38.88 | 98.72 | 0.6256 | 656.4 | 519.6 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -11.29 | 126.59 | -38.92 | 99.14 | 0.6263 | 589.0 | 488.6 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -15.44 | 125.77 | -39.74 | 105.57 | 0.6420 | 674.0 | 592.8 | |
| 0.00 | 1.46 | 0.00 | 0.93 | -10.83 | 126.43 | -39.08 | 98.39 | 0.6282 | 538.0 | 354.7 | |
| 0.00 | 1.12 | 0.00 | 0.73 | -16.09 | 124.72 | -40.79 | 106.35 | 0.6564 | 608.0 | 435.5 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -14.60 | 123.94 | -41.57 | 103.97 | 0.6641 | 531.0 | 489.9 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -11.72 | 123.31 | -42.20 | 99.58 | 0.6693 | -440.0 | -439.9 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -11.33 | 122.31 | -43.20 | 98.96 | 0.6818 | 602.0 | 498.5 | |
| 0.00 | 1.21 | 0.00 | 0.83 | -13.20 | 120.94 | -44.57 | 101.59 | 0.6998 | 478.0 | 369.0 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -10.42 | 121.43 | -44.08 | 97.60 | 0.6926 | 572.0 | 544.6 | |
| 0.00 | 1.81 | 0.00 | 1.24 | -10.82 | 121.19 | -44.32 | 98.17 | 0.6956 | 376.0 | 382.8 | |
| 0.00 | 2.33 | 0.00 | 1.63 | -10.79 | 120.17 | -45.34 | 98.11 | 0.7082 | 166.0 | 252.0 | |
| 0.00 | 1.46 | 0.00 | 1.08 | -11.80 | 117.10 | -48.41 | 99.45 | 0.7445 | -80.0 | -108.3 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -21.18 | 110.35 | -55.16 | 110.89 | 0.8214 | -284.0 | -325.0 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -19.58 | 110.82 | -54.69 | 108.99 | 0.8154 | -621.0 | -568.3 | |
| 0.00 | 0.69 | 0.00 | 0.58 | -17.52 | 111.20 | -54.31 | 106.49 | 0.8100 | -501.0 | -405.6 | |
| 0.00 | 1.21 | 0.00 | 1.01 | -16.86 | 111.33 | -54.18 | 105.68 | 0.8083 | -311.0 | -295.0 | |
| 0.00 | 1.12 | 0.00 | 0.97 | -18.59 | 110.15 | -55.36 | 107.71 | 0.8208 | -595.0 | -509.0 | |
| 0.00 | 1.55 | 0.00 | 1.27 | -12.73 | 112.00 | -53.51 | 100.56 | 0.8000 | -576.0 | -408.4 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -10.10 | 111.03 | -54.48 | 97.30 | 0.8101 | 508.0 | 511.7 | |
| 0.00 | 1.03 | 0.00 | 0.96 | -19.45 | 107.09 | -58.42 | 108.50 | 0.8492 | -324.0 | -267.4 | |
| 0.00 | 0.60 | 0.00 | 0.52 | -11.63 | 110.34 | -55.17 | 99.19 | 0.8167 | 438.0 | 431.1 | |
| 0.00 | 1.38 | 0.00 | 1.18 | -11.24 | 110.08 | -55.43 | 98.72 | 0.8193 | 572.0 | 470.8 | |
| 1.98 | 344.67 | 1.80 | 322.25 | -13.38 | 107.75 | -57.76 | 101.33 | 0.8414 | -841.8 | -99.5 | |
| 23.52 | -33.00 | 21.67 | -33.00 | -13.67 | 107.34 | -58.17 | 101.68 | 0.8451 | -748.5 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.33 | -15.31 | 106.10 | -59.41 | 103.59 | 0.8563 | -530.0 | -480.5 | |
| 4.91 | -33.00 | 4.65 | -33.00 | -14.27 | 106.33 | -59.18 | 102.37 | 0.8542 | -433.2 | 999999 | |
| 2.07 | -33.00 | 1.95 | -33.00 | -13.77 | 106.54 | -58.97 | 101.79 | 0.8523 | 272.7 | 999999 | |
| 56.87 | -33.00 | 53.18 | -33.00 | -12.73 | 106.77 | -58.74 | 100.57 | 0.8503 | 661.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
