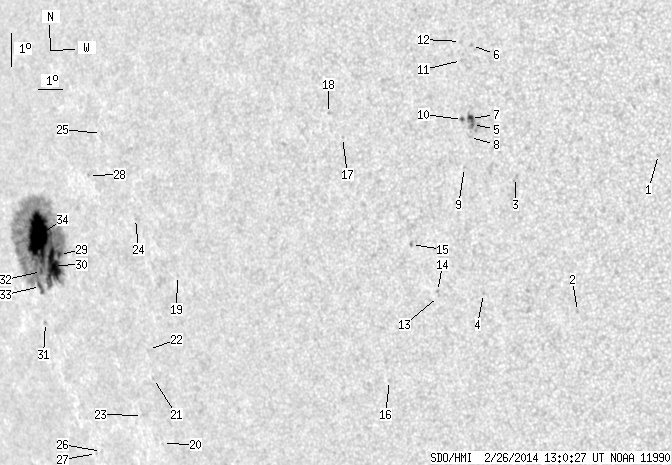

SDO HMI 2014-02-26 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.00 | 383.06 | 89.60 | 343.21 | -13.10 | 108.18 | -56.78 | 101.04 | 0.8298 | 241.0 | -67.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.70 | -12.62 | 133.73 | -31.23 | 102.56 | 0.5204 | 528.0 | 498.0 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -17.10 | 129.97 | -34.99 | 109.50 | 0.5837 | 665.0 | 501.3 | |
| 0.00 | 1.98 | 0.00 | 1.22 | -12.95 | 128.43 | -36.53 | 102.12 | 0.5957 | 719.0 | 561.0 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -16.30 | 126.51 | -38.46 | 107.19 | 0.6271 | 639.0 | 539.3 | |
| 0.69 | 13.96 | 0.43 | 8.72 | -11.25 | 127.06 | -37.90 | 99.16 | 0.6125 | 954.0 | 710.0 | |
| 0.00 | 1.21 | 0.00 | 0.75 | -8.92 | 127.35 | -37.61 | 95.32 | 0.6078 | 763.0 | 622.6 | |
| 2.76 | -5.00 | 1.72 | -5.00 | -11.07 | 127.01 | -37.95 | 98.85 | 0.6131 | 868.9 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -11.63 | 126.89 | -38.08 | 99.75 | 0.6152 | 701.0 | 600.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -12.50 | 126.54 | -38.42 | 101.13 | 0.6206 | 621.0 | 529.5 | |
| 0.78 | 1.81 | 0.49 | 1.14 | -11.08 | 126.70 | -38.26 | 98.84 | 0.6172 | 634.6 | 530.8 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -9.33 | 126.92 | -38.05 | 96.00 | 0.6138 | 615.0 | 502.1 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -8.77 | 126.95 | -38.01 | 95.08 | 0.6133 | 389.0 | 298.9 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -16.25 | 124.71 | -40.25 | 106.71 | 0.6500 | 492.0 | 447.8 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -16.10 | 124.71 | -40.25 | 106.48 | 0.6497 | 633.0 | 564.5 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -14.62 | 124.00 | -40.96 | 104.10 | 0.6563 | 501.0 | 471.1 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -18.59 | 122.01 | -42.95 | 109.59 | 0.6879 | 328.0 | 306.5 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -11.22 | 121.87 | -43.09 | 98.80 | 0.6804 | 489.0 | 323.8 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -10.47 | 121.43 | -43.53 | 97.68 | 0.6858 | 567.0 | 536.6 | |
| 0.00 | 1.12 | 0.00 | 0.88 | -14.63 | 113.57 | -51.39 | 103.05 | 0.7784 | -382.0 | -316.0 | |
| 0.00 | 0.78 | 0.00 | 0.65 | -19.51 | 110.80 | -54.16 | 108.96 | 0.8102 | -544.0 | -519.7 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -17.55 | 111.24 | -53.73 | 106.57 | 0.8043 | -378.0 | -372.2 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -16.67 | 111.34 | -53.62 | 105.49 | 0.8026 | -99.0 | -160.1 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -18.58 | 110.17 | -54.79 | 107.75 | 0.8154 | -662.0 | -570.9 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -12.76 | 112.06 | -52.90 | 100.61 | 0.7937 | -585.0 | -510.2 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -10.10 | 111.06 | -53.90 | 97.28 | 0.8042 | 541.0 | 449.8 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -19.41 | 107.41 | -57.55 | 108.52 | 0.8415 | -441.0 | -371.1 | |
| 0.00 | 0.60 | 0.00 | 0.55 | -19.44 | 107.09 | -57.87 | 108.53 | 0.8443 | -303.0 | -255.7 | |
| 0.00 | 0.95 | 0.00 | 0.80 | -11.26 | 110.07 | -54.89 | 98.74 | 0.8140 | 520.0 | 477.9 | |
| 1.90 | 341.36 | 1.70 | 314.83 | -13.41 | 107.77 | -57.19 | 101.37 | 0.8361 | -827.8 | -112.5 | |
| 25.76 | -29.00 | 23.40 | -29.00 | -13.70 | 107.32 | -57.64 | 101.71 | 0.8403 | -730.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.81 | -15.31 | 106.17 | -58.79 | 103.61 | 0.8509 | -351.0 | -321.2 | |
| 1.81 | -29.00 | 1.68 | -29.00 | -13.80 | 106.58 | -58.38 | 101.83 | 0.8470 | 284.9 | 999999 | |
| 3.96 | -29.00 | 3.70 | -29.00 | -14.23 | 106.34 | -58.62 | 102.34 | 0.8492 | -456.7 | 999999 | |
| 61.34 | -29.00 | 56.48 | -29.00 | -12.74 | 106.82 | -58.15 | 100.57 | 0.8449 | 677.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
