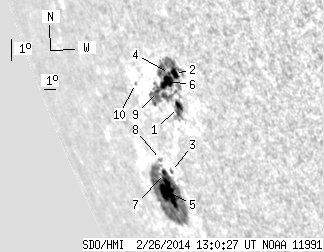

SDO HMI 2014-02-26 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.88 | 217.79 | 77.94 | 345.90 | -25.19 | 91.92 | -73.04 | 114.22 | 0.9498 | -81.1 | -14.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.20 | 12.92 | 8.65 | 18.12 | -24.21 | 94.59 | -70.37 | 113.22 | 0.9364 | 236.8 | 14.1 | |
| 4.91 | 85.55 | 6.61 | 120.05 | -23.21 | 95.42 | -69.54 | 112.17 | 0.9314 | 608.5 | 43.2 | |
| 0.00 | 1.46 | 0.00 | 2.37 | -25.91 | 91.34 | -73.62 | 114.98 | 0.9533 | -529.0 | -478.2 | |
| 1.12 | -2.00 | 1.54 | -2.00 | -23.16 | 95.01 | -69.95 | 112.11 | 0.9339 | 491.8 | 999999 | |
| 23.00 | 114.50 | 39.86 | 199.84 | -26.45 | 90.02 | -74.94 | 115.53 | 0.9594 | -370.2 | -36.6 | |
| 10.77 | -2.00 | 15.08 | -2.00 | -23.36 | 94.48 | -70.48 | 112.31 | 0.9369 | 325.0 | 999999 | |
| 2.33 | -5.00 | 3.91 | -5.00 | -25.88 | 90.54 | -74.42 | 114.94 | 0.9571 | -476.8 | 999999 | |
| 0.00 | 2.15 | 0.00 | 3.59 | -25.46 | 90.79 | -74.17 | 114.49 | 0.9559 | -422.0 | -371.2 | |
| 1.55 | -2.00 | 2.29 | -2.00 | -23.55 | 93.33 | -71.63 | 112.50 | 0.9432 | -331.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.93 | -23.08 | 91.57 | -73.40 | 112.00 | 0.9522 | 40.0 | -4.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
