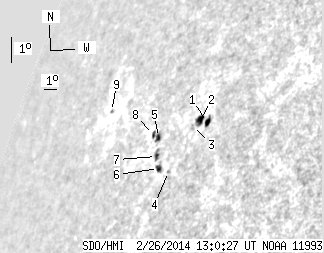

SDO HMI 2014-02-26 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.88 | 32.82 | 17.05 | 41.04 | 15.60 | 101.70 | -63.26 | 69.53 | 0.9193 | -44.4 | 96.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.93 | 4.82 | 3.39 | 5.58 | 15.83 | 103.91 | -61.05 | 68.67 | 0.9056 | -378.0 | -342.9 | |
| 4.14 | 6.81 | 4.88 | 8.04 | 15.99 | 103.38 | -61.58 | 68.66 | 0.9095 | -237.9 | 24.0 | |
| 0.00 | 2.67 | 0.00 | 3.19 | 15.84 | 102.99 | -61.97 | 68.92 | 0.9118 | 281.0 | 236.5 | |
| 0.00 | 1.64 | 0.00 | 2.00 | 14.50 | 102.02 | -62.95 | 70.61 | 0.9158 | 292.0 | 274.8 | |
| 1.98 | 6.55 | 2.59 | 8.61 | 15.74 | 100.64 | -64.32 | 69.69 | 0.9266 | -492.6 | -199.6 | |
| 2.07 | 4.22 | 2.60 | 5.31 | 14.69 | 101.23 | -63.73 | 70.63 | 0.9212 | 470.0 | 344.1 | |
| 1.55 | 4.82 | 1.99 | 6.20 | 15.11 | 100.86 | -64.11 | 70.28 | 0.9242 | 399.7 | 264.7 | |
| 1.21 | -5.00 | 1.60 | -5.00 | 15.88 | 100.19 | -64.77 | 69.65 | 0.9296 | -30.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 2.11 | 17.12 | 95.97 | -68.99 | 69.43 | 0.9543 | 285.0 | 247.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
