SDO HMI 2014-02-26 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.48 | 522.65 | 49.97 | 270.09 | -1.55 | 149.28 | -15.14 | 69.72 | 0.2783 | -217.7 | -90.0 | |
|
previous
or next observation for the same group /

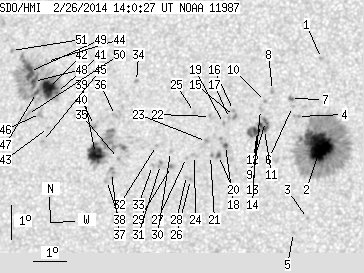

back to the solar disc SDO HMI 2014-02-26 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 0.97 | 0.47 | 152.89 | -11.53 | 56.89 | 0.2396 | -901.0 | -701.1 | |
| 42.04 | 245.86 | 21.33 | 124.75 | -2.16 | 152.85 | -11.57 | 67.07 | 0.2185 | -1368.2 | -473.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -4.29 | 152.42 | -11.99 | 77.09 | 0.2135 | -755.0 | -580.2 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -1.25 | 152.15 | -12.26 | 64.71 | 0.2358 | -857.0 | -784.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -4.69 | 151.99 | -12.42 | 79.37 | 0.2191 | -802.0 | -674.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -0.94 | 152.00 | -12.41 | 63.85 | 0.2404 | -869.0 | -644.7 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -0.70 | 151.94 | -12.47 | 63.08 | 0.2432 | -899.0 | -795.0 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -0.45 | 151.40 | -13.01 | 63.20 | 0.2535 | -897.0 | -717.2 | |
| 1.21 | 20.07 | 0.62 | 10.27 | -1.37 | 151.18 | -13.23 | 66.87 | 0.2500 | -1043.1 | -918.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -0.77 | 151.18 | -13.23 | 64.72 | 0.2542 | -977.0 | -817.8 | |
| 1.64 | -9.00 | 0.84 | -9.00 | -1.61 | 151.15 | -13.26 | 67.80 | 0.2488 | -1232.3 | 999999 | |
| 1.46 | -9.00 | 0.75 | -9.00 | -1.45 | 151.03 | -13.39 | 67.43 | 0.2518 | -1132.8 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -1.00 | 151.03 | -13.38 | 65.81 | 0.2548 | -775.0 | -681.2 | |
| 3.62 | -9.00 | 1.85 | -9.00 | -1.66 | 150.90 | -13.51 | 68.38 | 0.2523 | -1104.2 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -1.19 | 150.23 | -14.18 | 67.72 | 0.2658 | -1077.0 | -920.1 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -1.01 | 150.20 | -14.21 | 67.14 | 0.2675 | -943.0 | -735.0 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -1.24 | 150.08 | -14.33 | 68.14 | 0.2679 | -830.0 | -710.3 | |
| 0.95 | 6.12 | 0.49 | 3.14 | -2.04 | 149.95 | -14.46 | 71.13 | 0.2649 | -1132.9 | -820.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -1.39 | 149.90 | -14.52 | 68.90 | 0.2698 | -867.0 | -718.0 | |
| 0.95 | 2.15 | 0.49 | 1.11 | -2.34 | 149.73 | -14.68 | 72.44 | 0.2668 | -1024.4 | -880.8 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -2.33 | 149.49 | -14.93 | 72.70 | 0.2708 | -797.0 | -793.6 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -1.16 | 149.50 | -14.91 | 68.69 | 0.2774 | -705.0 | -638.8 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -1.91 | 149.37 | -15.04 | 71.38 | 0.2750 | -788.0 | -717.8 | |
| 0.00 | 2.33 | 0.00 | 1.20 | -2.31 | 148.99 | -15.42 | 73.21 | 0.2787 | -624.0 | -575.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -1.03 | 149.01 | -15.41 | 68.91 | 0.2860 | -729.0 | -574.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -3.02 | 148.86 | -15.55 | 75.80 | 0.2774 | -827.0 | -696.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -2.36 | 148.75 | -15.66 | 73.65 | 0.2824 | -658.0 | -561.4 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -2.90 | 148.74 | -15.67 | 75.49 | 0.2799 | -535.0 | -608.2 | |
| 0.00 | 2.41 | 0.00 | 1.25 | -2.61 | 148.28 | -16.13 | 74.98 | 0.2887 | -946.0 | -823.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -2.17 | 148.26 | -16.16 | 73.52 | 0.2913 | -792.0 | -460.7 | |
| 0.00 | 2.67 | 0.00 | 1.38 | -2.54 | 147.94 | -16.47 | 75.07 | 0.2945 | -154.0 | -392.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -1.97 | 147.82 | -16.59 | 73.34 | 0.2992 | -672.0 | -449.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -2.56 | 147.69 | -16.72 | 75.37 | 0.2984 | -598.0 | -455.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -0.04 | 147.22 | -17.20 | 68.15 | 0.3199 | 859.0 | 739.7 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -2.31 | 146.64 | -17.77 | 75.54 | 0.3164 | 1077.0 | 827.2 | |
| 0.00 | 2.76 | 0.00 | 1.44 | -1.03 | 146.56 | -17.85 | 71.77 | 0.3242 | 839.0 | 693.8 | |
| 0.00 | 5.34 | 0.00 | 2.79 | -2.72 | 146.41 | -18.00 | 76.97 | 0.3182 | 942.0 | 781.7 | |
| 0.00 | 2.67 | 0.00 | 1.40 | -2.95 | 146.25 | -18.16 | 77.80 | 0.3199 | 846.0 | 701.9 | |
| 18.52 | 60.91 | 9.71 | 31.89 | -2.13 | 145.92 | -18.49 | 75.62 | 0.3286 | 1089.0 | 673.0 | |
| 0.00 | 4.31 | 0.00 | 2.26 | -1.30 | 145.90 | -18.51 | 73.21 | 0.3330 | 882.0 | 692.5 | |
| 0.69 | 114.66 | 0.37 | 61.06 | -0.26 | 144.71 | -19.70 | 71.48 | 0.3571 | 1068.4 | 529.0 | |
| 15.33 | -41.00 | 8.14 | -41.00 | -0.13 | 144.46 | -19.95 | 71.38 | 0.3617 | 1241.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -1.30 | 144.45 | -19.96 | 74.48 | 0.3557 | 873.0 | 632.1 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 0.68 | 144.40 | -20.02 | 69.35 | 0.3674 | 715.0 | 526.4 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -1.71 | 144.26 | -20.15 | 75.74 | 0.3569 | 886.0 | 655.1 | |
| 0.00 | 4.39 | 0.00 | 2.33 | -0.87 | 144.20 | -20.21 | 73.54 | 0.3617 | 718.0 | 635.4 | |
| 1.29 | -41.00 | 0.69 | -41.00 | -0.23 | 144.08 | -20.33 | 72.00 | 0.3670 | 911.4 | 999999 | |
| 1.46 | -41.00 | 0.78 | -41.00 | 0.10 | 143.99 | -20.43 | 71.23 | 0.3702 | 1131.5 | 999999 | |
| 7.32 | -41.00 | 3.91 | -41.00 | 0.40 | 143.86 | -20.55 | 70.58 | 0.3739 | 965.4 | 999999 | |
| 0.00 | 4.39 | 0.00 | 2.34 | -0.88 | 143.79 | -20.62 | 73.92 | 0.3681 | 633.0 | 506.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 1.06 | 143.28 | -21.13 | 69.51 | 0.3864 | 740.0 | 608.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
