SDO HMI 2014-02-26 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.63 | 401.42 | 86.84 | 351.01 | -13.15 | 108.00 | -55.86 | 101.11 | 0.8215 | 232.0 | -48.2 | |
|
previous
or next observation for the same group /

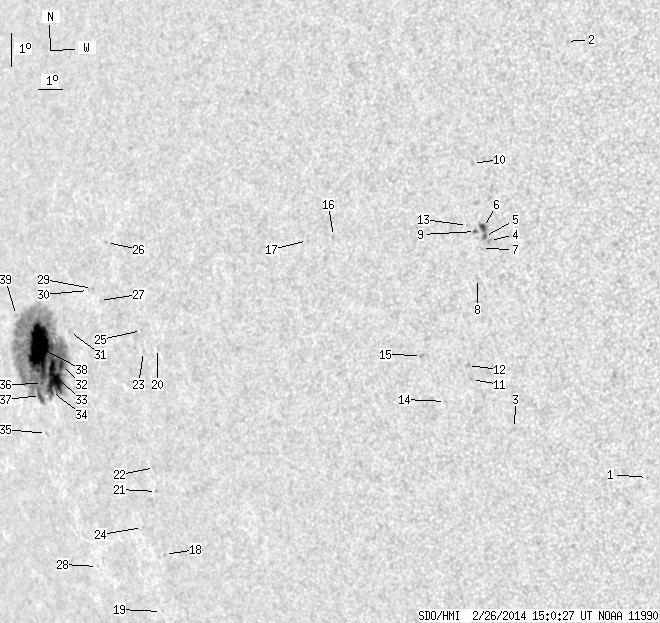

back to the solar disc SDO HMI 2014-02-26 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.56 | -18.85 | 131.80 | -32.06 | 113.70 | 0.5508 | 689.0 | 607.4 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -5.70 | 130.72 | -33.15 | 89.43 | 0.5462 | 484.0 | 495.3 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -17.04 | 127.16 | -36.70 | 108.86 | 0.6060 | 597.0 | 497.1 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -11.39 | 127.28 | -36.58 | 99.49 | 0.5945 | 896.0 | 785.6 | |
| 0.78 | 7.41 | 0.48 | 4.56 | -11.26 | 127.12 | -36.75 | 99.25 | 0.5968 | 940.8 | 750.5 | |
| 2.67 | -5.00 | 1.64 | -5.00 | -10.99 | 127.12 | -36.74 | 98.80 | 0.5965 | 874.9 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.21 | -11.60 | 126.95 | -36.91 | 99.82 | 0.5993 | 701.0 | 692.8 | |
| 0.00 | 1.21 | 0.00 | 0.75 | -12.48 | 126.65 | -37.21 | 101.24 | 0.6043 | 709.0 | 516.3 | |
| 0.52 | 1.72 | 0.32 | 1.07 | -11.08 | 126.80 | -37.06 | 98.94 | 0.6010 | 660.7 | 576.7 | |
| 0.00 | 2.07 | 0.00 | 1.27 | -9.06 | 126.96 | -36.90 | 95.56 | 0.5980 | 607.0 | 529.5 | |
| 0.00 | 1.38 | 0.00 | 0.87 | -15.46 | 125.84 | -38.02 | 105.95 | 0.6197 | 674.0 | 506.8 | |
| 0.00 | 2.50 | 0.00 | 1.57 | -15.03 | 125.78 | -38.08 | 105.25 | 0.6198 | 715.0 | 601.7 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -10.88 | 126.53 | -37.34 | 98.58 | 0.6046 | 546.0 | 441.3 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -16.03 | 124.68 | -39.18 | 106.61 | 0.6359 | 615.0 | 563.8 | |
| 0.00 | 1.98 | 0.00 | 1.28 | -14.59 | 124.05 | -39.81 | 104.24 | 0.6416 | 642.0 | 521.4 | |
| 0.00 | 1.21 | 0.00 | 0.81 | -10.79 | 121.24 | -42.62 | 98.17 | 0.6744 | 520.0 | 474.6 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -10.82 | 120.15 | -43.71 | 98.18 | 0.6881 | 601.0 | 426.3 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -19.49 | 110.79 | -53.07 | 109.07 | 0.7995 | -646.0 | -518.2 | |
| 0.00 | 0.86 | 0.00 | 0.73 | -21.17 | 109.78 | -54.08 | 111.01 | 0.8112 | -359.0 | -313.6 | |
| 0.00 | 0.52 | 0.00 | 0.40 | -13.39 | 112.78 | -51.08 | 101.47 | 0.7746 | -399.0 | -391.2 | |
| 0.00 | 1.12 | 0.00 | 0.91 | -17.60 | 111.23 | -52.64 | 106.73 | 0.7934 | -455.0 | -393.7 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -16.88 | 111.42 | -52.44 | 105.84 | 0.7909 | -73.0 | -174.2 | |
| 0.00 | 0.86 | 0.00 | 0.68 | -13.42 | 112.08 | -51.78 | 101.47 | 0.7821 | -472.0 | -406.4 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -18.59 | 110.05 | -53.81 | 107.86 | 0.8059 | -645.0 | -603.0 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -12.79 | 112.17 | -51.69 | 100.67 | 0.7810 | -550.0 | -454.9 | |
| 0.00 | 1.12 | 0.00 | 0.90 | -10.04 | 111.15 | -52.71 | 97.17 | 0.7918 | 566.0 | 476.5 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -11.71 | 110.37 | -53.49 | 99.28 | 0.7998 | 557.0 | 527.7 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -19.50 | 107.10 | -56.76 | 108.69 | 0.8345 | -267.0 | -216.2 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -11.32 | 110.12 | -53.75 | 98.80 | 0.8024 | 643.0 | 556.0 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -11.36 | 109.90 | -53.96 | 98.85 | 0.8046 | 489.0 | 454.9 | |
| 0.00 | 1.64 | 0.00 | 1.40 | -12.46 | 108.56 | -55.30 | 100.22 | 0.8179 | -4.0 | 15.2 | |
| 3.36 | 358.85 | 2.93 | 321.35 | -13.41 | 107.81 | -56.06 | 101.38 | 0.8253 | -947.3 | -85.0 | |
| 24.55 | -32.00 | 21.68 | -32.00 | -13.69 | 107.31 | -56.55 | 101.71 | 0.8301 | -752.7 | 999999 | |
| 1.29 | -32.00 | 1.15 | -32.00 | -14.12 | 106.98 | -56.88 | 102.22 | 0.8332 | -526.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.63 | -15.31 | 106.20 | -57.66 | 103.63 | 0.8407 | -431.0 | -375.8 | |
| 1.03 | -32.00 | 0.93 | -32.00 | -13.83 | 106.58 | -57.28 | 101.87 | 0.8369 | 294.6 | 999999 | |
| 5.43 | -32.00 | 4.92 | -32.00 | -14.17 | 106.34 | -57.53 | 102.27 | 0.8392 | -447.4 | 999999 | |
| 59.00 | -32.00 | 52.79 | -32.00 | -12.76 | 106.81 | -57.05 | 100.59 | 0.8348 | 733.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.18 | -11.70 | 105.87 | -58.00 | 99.33 | 0.8437 | -203.0 | -166.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
