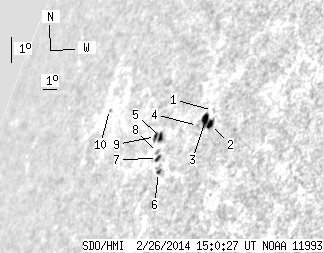

SDO HMI 2014-02-26 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.01 | 31.79 | 15.32 | 37.93 | 15.66 | 101.90 | -61.96 | 69.10 | 0.9110 | -119.3 | 58.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.58 | 16.28 | 103.87 | -59.99 | 67.87 | 0.8992 | -448.0 | -467.0 | |
| 2.76 | 13.27 | 3.07 | 14.92 | 15.82 | 103.98 | -59.89 | 68.33 | 0.8974 | -460.4 | -147.6 | |
| 4.39 | -2.00 | 4.97 | -2.00 | 16.03 | 103.56 | -60.30 | 68.23 | 0.9008 | -196.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.69 | 15.89 | 103.13 | -60.74 | 68.52 | 0.9035 | 311.0 | 284.9 | |
| 2.15 | 7.32 | 2.69 | 9.19 | 15.78 | 100.73 | -63.13 | 69.32 | 0.9193 | -444.8 | -182.0 | |
| 0.78 | 3.96 | 0.94 | 4.80 | 14.62 | 101.22 | -62.65 | 70.41 | 0.9140 | 461.0 | 419.4 | |
| 1.38 | 2.76 | 1.69 | 3.38 | 15.10 | 100.90 | -62.96 | 69.99 | 0.9170 | 425.7 | 405.6 | |
| 0.00 | 2.67 | 0.00 | 3.30 | 15.30 | 100.79 | -63.07 | 69.81 | 0.9180 | 320.0 | 225.9 | |
| 1.55 | -5.00 | 1.96 | -5.00 | 15.86 | 100.34 | -63.52 | 69.34 | 0.9219 | -84.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 1.07 | 17.24 | 95.91 | -67.95 | 69.06 | 0.9492 | 111.0 | 173.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
