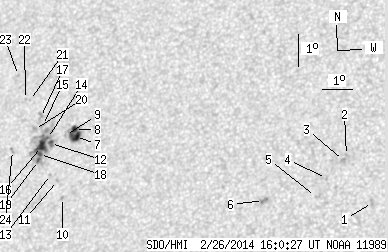

SDO HMI 2014-02-26 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.33 | 90.70 | 14.09 | 54.28 | 8.32 | 133.03 | -30.28 | 63.19 | 0.5598 | 407.5 | 223.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.01 | 0.00 | 1.64 | 6.07 | 142.81 | -20.50 | 57.59 | 0.4144 | -799.0 | -607.0 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 7.55 | 141.91 | -21.40 | 55.83 | 0.4391 | -783.0 | -672.0 | |
| 0.00 | 2.41 | 0.00 | 1.33 | 7.40 | 141.82 | -21.49 | 56.23 | 0.4389 | -724.0 | -581.1 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 6.88 | 141.30 | -22.02 | 57.88 | 0.4413 | -945.0 | -644.3 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 6.34 | 140.97 | -22.35 | 59.30 | 0.4413 | -689.0 | -572.8 | |
| 0.00 | 4.05 | 0.00 | 2.26 | 6.31 | 139.28 | -24.03 | 61.23 | 0.4638 | -897.0 | -753.2 | |
| 7.75 | 14.56 | 4.65 | 8.74 | 8.66 | 132.77 | -30.54 | 63.03 | 0.5658 | 1003.9 | 649.5 | |
| 3.10 | -7.00 | 1.86 | -7.00 | 8.88 | 132.72 | -30.59 | 62.72 | 0.5679 | 795.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 8.71 | 132.42 | -30.89 | 63.22 | 0.5707 | 543.0 | 420.0 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 6.81 | 132.47 | -30.84 | 66.25 | 0.5584 | 727.0 | 591.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 7.34 | 132.25 | -31.06 | 65.53 | 0.5644 | 823.0 | 691.1 | |
| 1.81 | 43.24 | 1.09 | 26.23 | 8.50 | 131.91 | -31.40 | 63.94 | 0.5758 | 966.3 | 462.2 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 7.55 | 131.99 | -31.32 | 65.39 | 0.5690 | 584.0 | 444.6 | |
| 0.60 | -12.00 | 0.37 | -12.00 | 8.66 | 131.79 | -31.52 | 63.77 | 0.5784 | 819.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.05 | 9.08 | 131.57 | -31.74 | 63.29 | 0.5837 | 441.0 | 392.4 | |
| 7.58 | -12.00 | 4.60 | -12.00 | 8.43 | 131.60 | -31.71 | 64.28 | 0.5794 | 866.2 | 999999 | |
| 0.00 | 4.56 | 0.00 | 2.79 | 9.33 | 131.48 | -31.83 | 62.97 | 0.5865 | 497.0 | 416.2 | |
| 1.46 | -12.00 | 0.89 | -12.00 | 8.19 | 131.55 | -31.76 | 64.69 | 0.5785 | 888.1 | 999999 | |
| 1.03 | -12.00 | 0.63 | -12.00 | 8.01 | 131.53 | -31.78 | 64.99 | 0.5777 | 760.8 | 999999 | |
| 0.00 | 4.22 | 0.00 | 2.58 | 8.98 | 131.30 | -32.01 | 63.65 | 0.5865 | -105.0 | -116.8 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 9.89 | 131.03 | -32.28 | 62.46 | 0.5957 | 559.0 | 407.3 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 9.93 | 130.88 | -32.43 | 62.51 | 0.5977 | 412.0 | 357.3 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 10.70 | 130.54 | -32.77 | 61.62 | 0.6068 | -765.0 | -629.5 | |
| 0.00 | 2.07 | 0.00 | 1.27 | 8.38 | 130.57 | -32.74 | 65.09 | 0.5921 | 619.0 | 534.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
