SDO HMI 2014-02-26 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.56 | 28.28 | 2.94 | 18.79 | 6.69 | 124.01 | -39.30 | 71.39 | 0.6641 | -397.5 | -316.7 | |
|
previous
or next observation for the same group /

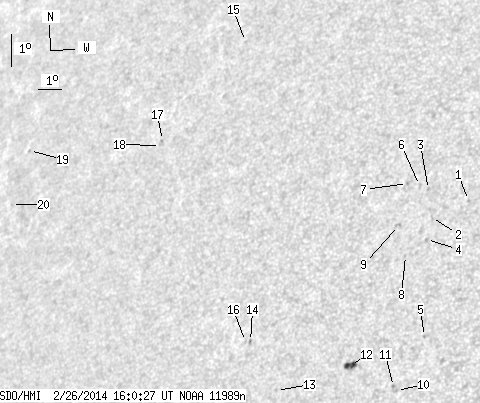

back to the solar disc SDO HMI 2014-02-26 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.59 | 8.54 | 129.19 | -34.12 | 65.78 | 0.6106 | -691.0 | -553.2 | |
| 0.00 | 1.55 | 0.00 | 0.98 | 8.12 | 127.88 | -35.43 | 67.24 | 0.6247 | -635.0 | -536.8 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 8.99 | 127.67 | -35.64 | 66.08 | 0.6319 | -802.0 | -678.8 | |
| 0.00 | 1.38 | 0.00 | 0.87 | 7.45 | 127.76 | -35.55 | 68.31 | 0.6228 | -748.0 | -614.0 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 4.49 | 127.90 | -35.41 | 72.78 | 0.6070 | -564.0 | -504.1 | |
| 0.00 | 1.81 | 0.00 | 1.16 | 9.14 | 127.32 | -35.99 | 66.08 | 0.6370 | -449.0 | -421.0 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 9.24 | 126.86 | -36.45 | 66.22 | 0.6431 | -580.0 | -510.6 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 7.02 | 127.02 | -36.29 | 69.38 | 0.6300 | -207.0 | -265.8 | |
| 0.00 | 2.07 | 0.00 | 1.33 | 7.96 | 126.67 | -36.64 | 68.18 | 0.6390 | -642.0 | -547.3 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 2.93 | 126.94 | -36.37 | 75.68 | 0.6134 | -629.0 | -468.8 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 3.06 | 126.83 | -36.48 | 75.53 | 0.6155 | -634.0 | -566.6 | |
| 4.56 | 6.89 | 2.94 | 4.43 | 3.82 | 125.18 | -38.13 | 75.08 | 0.6399 | -700.3 | -455.7 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 3.30 | 122.35 | -40.97 | 76.99 | 0.6741 | -472.0 | -439.5 | |
| 0.00 | 1.72 | 0.00 | 1.18 | 4.88 | 121.21 | -42.10 | 75.19 | 0.6933 | 503.0 | 550.8 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 14.29 | 119.52 | -43.79 | 63.64 | 0.7508 | -524.0 | -393.7 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 4.90 | 121.01 | -42.31 | 75.24 | 0.6959 | 505.0 | 435.3 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 11.46 | 116.57 | -46.75 | 68.51 | 0.7694 | -591.0 | -508.2 | |
| 0.00 | 0.95 | 0.00 | 0.73 | 11.31 | 116.51 | -46.80 | 68.72 | 0.7695 | -500.0 | -446.6 | |
| 0.00 | 0.78 | 0.00 | 0.69 | 11.79 | 110.18 | -53.13 | 70.58 | 0.8325 | 446.0 | 387.3 | |
| 0.00 | 0.60 | 0.00 | 0.54 | 10.17 | 109.69 | -53.62 | 72.62 | 0.8325 | 551.0 | 470.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
