SDO HMI 2014-02-26 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.81 | 232.95 | 91.66 | 335.78 | -25.22 | 91.65 | -71.11 | 114.28 | 0.9398 | -107.6 | -22.2 | |
|
previous
or next observation for the same group /

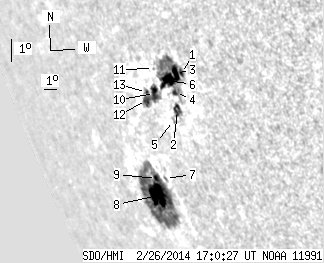

back to the solar disc SDO HMI 2014-02-26 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.12 | 89.82 | 1.35 | 114.21 | -23.16 | 96.20 | -66.56 | 112.22 | 0.9130 | 702.5 | 113.0 | |
| 4.31 | 7.66 | 5.46 | 9.72 | -24.19 | 94.77 | -67.99 | 113.28 | 0.9224 | 312.9 | 222.9 | |
| 6.89 | -1.00 | 8.41 | -1.00 | -23.11 | 95.75 | -67.01 | 112.15 | 0.9159 | 723.2 | 999999 | |
| 1.64 | -1.00 | 2.05 | -1.00 | -23.66 | 95.18 | -67.58 | 112.72 | 0.9197 | 379.0 | 999999 | |
| 0.00 | 2.33 | 0.00 | 3.02 | -24.44 | 94.12 | -68.64 | 113.52 | 0.9263 | -331.0 | -211.0 | |
| 13.09 | -1.00 | 16.48 | -1.00 | -23.25 | 94.93 | -67.83 | 112.26 | 0.9211 | 452.1 | 999999 | |
| 0.00 | 1.89 | 0.00 | 2.77 | -26.00 | 91.29 | -71.47 | 115.10 | 0.9426 | -549.0 | -486.8 | |
| 23.17 | 130.30 | 36.24 | 204.83 | -26.39 | 89.81 | -72.95 | 115.48 | 0.9501 | -478.7 | -72.5 | |
| 3.53 | -8.00 | 5.36 | -8.00 | -25.90 | 90.46 | -72.30 | 114.98 | 0.9468 | -604.1 | 999999 | |
| 6.46 | -1.00 | 8.60 | -1.00 | -23.50 | 93.49 | -69.27 | 112.49 | 0.9299 | -244.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.23 | -22.78 | 94.20 | -68.56 | 111.73 | 0.9255 | -403.0 | -340.9 | |
| 4.74 | -1.00 | 6.54 | -1.00 | -23.62 | 92.58 | -70.18 | 112.60 | 0.9352 | -522.4 | 999999 | |
| 0.86 | -1.00 | 1.17 | -1.00 | -23.39 | 92.86 | -69.90 | 112.36 | 0.9336 | 196.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
