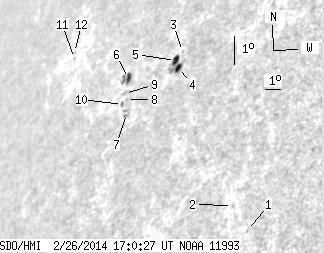

SDO HMI 2014-02-26 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.17 | 36.78 | 11.37 | 41.80 | 15.56 | 102.23 | -60.53 | 68.79 | 0.9006 | -39.3 | 106.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.75 | 10.14 | 109.71 | -53.05 | 72.47 | 0.8272 | 451.0 | 392.9 | |
| 0.00 | 1.03 | 0.00 | 0.93 | 11.01 | 108.72 | -54.04 | 71.78 | 0.8386 | 409.0 | 304.1 | |
| 0.00 | 1.03 | 0.00 | 1.12 | 16.36 | 103.96 | -58.80 | 67.40 | 0.8909 | -422.0 | -375.5 | |
| 3.19 | 15.16 | 3.43 | 16.41 | 15.85 | 103.96 | -58.80 | 67.95 | 0.8896 | -426.9 | -101.1 | |
| 3.79 | -4.00 | 4.13 | -4.00 | 16.11 | 103.66 | -59.10 | 67.77 | 0.8925 | -239.5 | 999999 | |
| 3.19 | 8.53 | 3.81 | 10.24 | 15.86 | 100.81 | -61.95 | 68.89 | 0.9117 | -414.8 | -165.7 | |
| 0.00 | 4.65 | 0.00 | 5.41 | 14.70 | 101.27 | -61.49 | 69.99 | 0.9063 | 640.0 | 482.0 | |
| 0.00 | 0.69 | 0.00 | 0.81 | 15.17 | 101.04 | -61.72 | 69.56 | 0.9089 | 593.0 | 584.1 | |
| 0.00 | 1.81 | 0.00 | 2.15 | 15.39 | 100.80 | -61.96 | 69.40 | 0.9109 | 475.0 | 302.1 | |
| 0.00 | 1.55 | 0.00 | 1.84 | 15.04 | 100.84 | -61.92 | 69.76 | 0.9099 | 431.0 | 353.4 | |
| 0.00 | 0.78 | 0.00 | 1.13 | 17.04 | 96.19 | -66.57 | 68.92 | 0.9417 | 370.0 | 323.0 | |
| 0.00 | 0.69 | 0.00 | 1.01 | 17.25 | 96.04 | -66.72 | 68.74 | 0.9428 | 287.0 | 292.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
