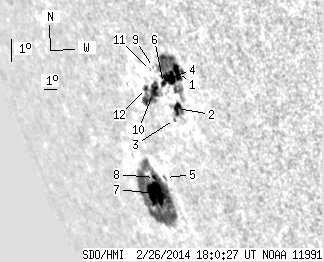

SDO HMI 2014-02-26 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.09 | 237.33 | 80.47 | 334.21 | -25.19 | 91.70 | -70.51 | 114.27 | 0.9364 | -105.3 | -43.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.63 | 62.69 | 7.92 | 76.29 | -23.12 | 95.86 | -66.35 | 112.19 | 0.9115 | 747.1 | 200.6 | |
| 5.86 | 9.64 | 7.27 | 11.97 | -24.16 | 94.79 | -67.42 | 113.27 | 0.9188 | 285.9 | 125.9 | |
| 0.00 | 1.38 | 0.00 | 1.75 | -24.45 | 94.20 | -68.01 | 113.56 | 0.9225 | -361.0 | -270.8 | |
| 8.87 | -1.00 | 10.87 | -1.00 | -23.23 | 95.09 | -67.12 | 112.27 | 0.9166 | 536.8 | 999999 | |
| 0.00 | 1.55 | 0.00 | 2.22 | -26.01 | 91.36 | -70.84 | 115.13 | 0.9392 | -508.0 | -505.6 | |
| 1.21 | -1.00 | 1.51 | -1.00 | -23.32 | 94.48 | -67.72 | 112.34 | 0.9205 | 141.6 | 999999 | |
| 21.70 | 132.36 | 33.15 | 202.84 | -26.35 | 89.79 | -72.42 | 115.45 | 0.9475 | -495.3 | -101.1 | |
| 1.38 | -7.00 | 2.05 | -7.00 | -25.89 | 90.38 | -71.83 | 114.98 | 0.9444 | -665.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.33 | -22.78 | 94.19 | -68.01 | 111.74 | 0.9221 | -383.0 | -424.0 | |
| 12.06 | 28.85 | 15.87 | 38.04 | -23.54 | 93.27 | -68.94 | 112.54 | 0.9279 | -296.2 | -213.6 | |
| 0.00 | 0.60 | 0.00 | 0.77 | -22.84 | 93.87 | -68.34 | 111.80 | 0.9242 | 250.0 | 214.6 | |
| 1.38 | -10.00 | 1.83 | -10.00 | -23.31 | 92.98 | -69.23 | 112.29 | 0.9296 | 296.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
