SDO HMI 2014-02-26 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.77 | 32.73 | 15.20 | 36.32 | 15.98 | 101.95 | -59.70 | 68.07 | 0.8959 | -218.0 | 46.4 | |
|
previous
or next observation for the same group /

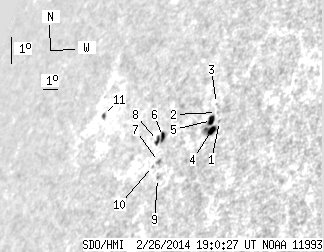

back to the solar disc SDO HMI 2014-02-26 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.80 | 16.07 | 104.30 | -57.36 | 67.24 | 0.8795 | -480.0 | -535.4 | |
| 0.00 | 0.52 | 0.00 | 0.54 | 16.40 | 103.97 | -57.68 | 67.00 | 0.8827 | -432.0 | -438.0 | |
| 0.00 | 0.43 | 0.00 | 0.45 | 16.70 | 103.83 | -57.83 | 66.72 | 0.8846 | -531.0 | -484.2 | |
| 4.39 | 15.93 | 4.57 | 16.67 | 15.83 | 103.94 | -57.71 | 67.62 | 0.8815 | -391.8 | -17.8 | |
| 3.79 | -4.00 | 3.98 | -4.00 | 16.16 | 103.79 | -57.87 | 67.31 | 0.8835 | -324.4 | 999999 | |
| 2.84 | 8.53 | 3.26 | 9.82 | 15.98 | 100.89 | -60.77 | 68.42 | 0.9040 | -449.2 | -201.6 | |
| 0.00 | 2.41 | 0.00 | 2.73 | 15.17 | 101.04 | -60.62 | 69.24 | 0.9013 | 594.0 | 555.5 | |
| 1.89 | -6.00 | 2.19 | -6.00 | 15.88 | 100.62 | -61.04 | 68.60 | 0.9057 | -223.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.77 | 14.61 | 101.24 | -60.42 | 69.78 | 0.8987 | 474.0 | 467.5 | |
| 0.00 | 1.03 | 0.00 | 1.18 | 15.05 | 100.71 | -60.94 | 69.46 | 0.9033 | 315.0 | 322.7 | |
| 0.86 | 2.41 | 1.20 | 3.36 | 17.21 | 96.06 | -65.59 | 68.49 | 0.9366 | 393.4 | 292.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
