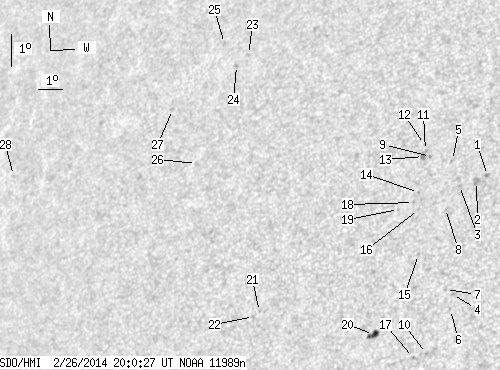

SDO HMI 2014-02-26 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.70 | 42.21 | 2.31 | 27.40 | 8.04 | 124.12 | -36.98 | 68.20 | 0.6416 | -512.5 | -416.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.10 | 8.44 | 129.19 | -31.91 | 64.40 | 0.5821 | -707.0 | -593.7 | |
| 0.00 | 4.31 | 0.00 | 2.63 | 8.28 | 128.82 | -32.29 | 64.91 | 0.5859 | -812.0 | -615.2 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 8.20 | 128.22 | -32.89 | 65.46 | 0.5931 | -668.0 | -530.8 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 4.87 | 128.21 | -32.89 | 70.75 | 0.5754 | -823.0 | -692.3 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 8.99 | 127.89 | -33.22 | 64.47 | 0.6019 | -589.0 | -503.3 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 4.42 | 128.16 | -32.94 | 71.52 | 0.5738 | -412.0 | -312.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 5.04 | 127.95 | -33.15 | 70.63 | 0.5796 | -706.0 | -565.1 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 7.52 | 127.78 | -33.33 | 66.80 | 0.5949 | -646.0 | -574.8 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 9.17 | 127.07 | -34.03 | 64.76 | 0.6131 | -717.0 | -631.3 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 3.15 | 127.36 | -33.74 | 74.06 | 0.5790 | -799.0 | -594.2 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 9.37 | 126.87 | -34.24 | 64.60 | 0.6168 | -704.0 | -529.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 9.56 | 126.81 | -34.29 | 64.36 | 0.6186 | -529.0 | -450.5 | |
| 0.00 | 3.10 | 0.00 | 1.95 | 9.19 | 126.82 | -34.29 | 64.90 | 0.6164 | -666.0 | -571.8 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 8.09 | 126.75 | -34.36 | 66.60 | 0.6111 | -724.0 | -616.1 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 6.18 | 126.91 | -34.20 | 69.43 | 0.5991 | -729.0 | -678.9 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 7.56 | 126.80 | -34.31 | 67.36 | 0.6076 | -580.0 | -487.3 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 3.06 | 126.90 | -34.21 | 74.44 | 0.5850 | -687.0 | -566.0 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 7.79 | 126.59 | -34.51 | 67.14 | 0.6114 | -460.0 | -407.0 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 7.62 | 126.06 | -35.04 | 67.73 | 0.6173 | -461.0 | -423.2 | |
| 3.70 | 5.94 | 2.31 | 3.70 | 3.87 | 125.41 | -35.69 | 73.88 | 0.6082 | -796.0 | -586.4 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 4.91 | 121.04 | -40.07 | 74.30 | 0.6685 | 513.0 | 451.2 | |
| 0.00 | 1.46 | 0.00 | 0.98 | 4.78 | 120.81 | -40.29 | 74.58 | 0.6709 | 515.0 | 383.6 | |
| 0.00 | 1.81 | 0.00 | 1.29 | 12.96 | 119.50 | -41.60 | 64.14 | 0.7214 | -644.0 | -484.5 | |
| 0.00 | 1.55 | 0.00 | 1.11 | 12.65 | 119.07 | -42.03 | 64.77 | 0.7245 | -769.0 | -578.6 | |
| 0.00 | 1.72 | 0.00 | 1.25 | 13.40 | 118.42 | -42.69 | 64.16 | 0.7351 | -256.0 | -326.7 | |
| 0.00 | 1.81 | 0.00 | 1.29 | 9.70 | 117.96 | -43.15 | 69.12 | 0.7238 | -83.0 | -140.3 | |
| 0.00 | 1.38 | 0.00 | 1.02 | 11.49 | 116.63 | -44.48 | 67.45 | 0.7458 | -676.0 | -513.7 | |
| 0.00 | 1.55 | 0.00 | 1.31 | 10.12 | 109.71 | -51.40 | 71.92 | 0.8115 | 636.0 | 463.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
