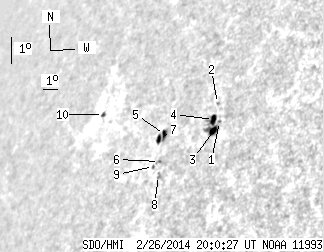

SDO HMI 2014-02-26 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.04 | 34.19 | 15.21 | 37.02 | 15.93 | 102.19 | -58.92 | 67.88 | 0.8902 | -201.0 | 12.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 1.32 | 16.09 | 104.21 | -56.90 | 67.07 | 0.8760 | -633.0 | -554.4 | |
| 0.00 | 0.43 | 0.00 | 0.45 | 16.71 | 103.81 | -57.29 | 66.53 | 0.8806 | -427.0 | -373.6 | |
| 4.56 | 17.48 | 4.67 | 18.00 | 15.83 | 103.98 | -57.12 | 67.43 | 0.8770 | -367.3 | -20.5 | |
| 3.79 | -3.00 | 3.91 | -3.00 | 16.19 | 103.82 | -57.29 | 67.08 | 0.8792 | -384.3 | 999999 | |
| 2.33 | 8.61 | 2.62 | 9.73 | 16.04 | 100.95 | -60.16 | 68.17 | 0.8999 | -461.5 | -280.6 | |
| 0.00 | 0.78 | 0.00 | 0.86 | 15.17 | 101.06 | -60.04 | 69.07 | 0.8972 | 647.0 | 611.3 | |
| 2.50 | -5.00 | 2.84 | -5.00 | 15.92 | 100.63 | -60.47 | 68.40 | 0.9018 | -197.1 | 999999 | |
| 0.00 | 2.67 | 0.00 | 2.94 | 14.71 | 101.21 | -59.89 | 69.51 | 0.8951 | 578.0 | 424.6 | |
| 0.00 | 1.12 | 0.00 | 1.26 | 15.05 | 100.75 | -60.36 | 69.29 | 0.8992 | 343.0 | 357.6 | |
| 0.86 | 1.81 | 1.17 | 2.46 | 17.24 | 96.11 | -65.00 | 68.30 | 0.9332 | 355.6 | 266.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
