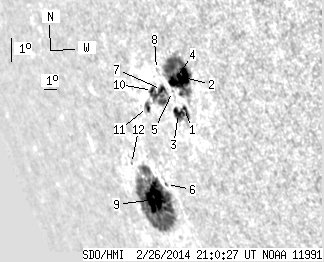

SDO HMI 2014-02-26 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.62 | 267.15 | 67.06 | 349.87 | -25.10 | 91.80 | -68.75 | 114.23 | 0.9262 | -43.8 | -67.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-26 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 18.09 | 1.00 | 21.21 | -24.00 | 95.12 | -65.43 | 113.19 | 0.9057 | 477.0 | 91.4 | |
| 11.80 | 71.22 | 13.29 | 81.05 | -23.09 | 95.90 | -64.65 | 112.24 | 0.9000 | 834.6 | 237.2 | |
| 6.20 | -1.00 | 7.32 | -1.00 | -24.09 | 94.55 | -66.01 | 113.27 | 0.9096 | -98.2 | 999999 | |
| 5.43 | -2.00 | 6.29 | -2.00 | -23.13 | 95.09 | -65.46 | 112.23 | 0.9056 | 443.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.01 | -23.41 | 94.74 | -65.81 | 112.52 | 0.9080 | 124.0 | 92.5 | |
| 0.00 | 1.29 | 0.00 | 1.73 | -26.02 | 91.28 | -69.28 | 115.20 | 0.9305 | -527.0 | -562.3 | |
| 2.58 | 25.66 | 3.10 | 31.23 | -23.26 | 94.00 | -66.55 | 112.33 | 0.9129 | 342.2 | -228.5 | |
| 0.00 | 0.95 | 0.00 | 1.13 | -22.65 | 94.20 | -66.36 | 111.66 | 0.9114 | -180.0 | -135.2 | |
| 21.70 | 143.65 | 30.98 | 205.49 | -26.33 | 89.67 | -70.88 | 115.47 | 0.9395 | -512.3 | -152.6 | |
| 1.81 | -7.00 | 2.23 | -7.00 | -23.22 | 93.30 | -67.26 | 112.24 | 0.9174 | 244.4 | 999999 | |
| 2.24 | 4.91 | 2.85 | 6.26 | -23.66 | 92.39 | -68.16 | 112.69 | 0.9232 | -522.8 | -325.3 | |
| 0.00 | 0.52 | 0.00 | 0.76 | -25.09 | 89.07 | -71.48 | 114.13 | 0.9425 | -413.0 | -366.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
