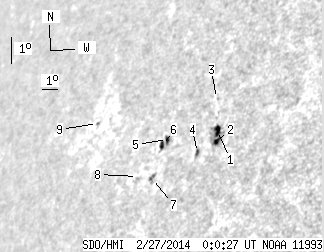

SDO HMI 2014-02-27 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.36 | 33.61 | 11.31 | 33.95 | 15.95 | 102.30 | -56.60 | 67.09 | 0.8729 | -327.2 | -45.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.39 | 16.46 | 4.25 | 15.92 | 16.19 | 103.90 | -55.00 | 66.28 | 0.8613 | -528.2 | -152.8 | |
| 2.58 | -1.00 | 2.49 | -1.00 | 15.83 | 103.99 | -54.91 | 66.64 | 0.8595 | -542.7 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.51 | 17.27 | 103.37 | -55.53 | 65.29 | 0.8686 | -344.0 | -372.0 | |
| 0.86 | 2.93 | 0.85 | 2.89 | 15.58 | 103.06 | -55.85 | 67.25 | 0.8664 | -212.8 | -163.0 | |
| 1.38 | 7.58 | 1.45 | 7.97 | 16.21 | 101.07 | -57.83 | 67.24 | 0.8834 | -530.9 | -313.3 | |
| 2.15 | -5.00 | 2.27 | -5.00 | 16.05 | 100.86 | -58.05 | 67.49 | 0.8846 | -294.1 | 999999 | |
| 0.00 | 4.57 | 0.00 | 4.78 | 15.01 | 100.73 | -58.17 | 68.65 | 0.8831 | 513.0 | 379.1 | |
| 0.00 | 0.34 | 0.00 | 0.37 | 15.19 | 99.76 | -59.14 | 68.77 | 0.8907 | -301.0 | -315.0 | |
| 0.00 | 1.21 | 0.00 | 1.51 | 17.29 | 96.07 | -62.83 | 67.63 | 0.9203 | 337.0 | 346.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
