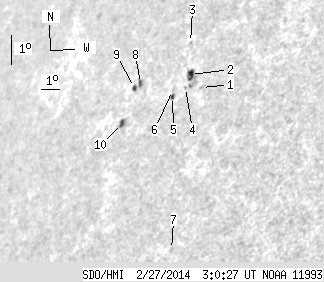

SDO HMI 2014-02-27 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.86 | 31.47 | 10.47 | 29.84 | 15.72 | 102.83 | -54.43 | 66.59 | 0.8551 | -253.1 | -261.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.94 | 15.69 | 104.64 | -52.61 | 65.94 | 0.8399 | -426.0 | -339.8 | |
| 4.31 | 13.02 | 4.00 | 12.03 | 16.18 | 103.89 | -53.37 | 65.68 | 0.8479 | -550.5 | -427.7 | |
| 0.00 | 0.78 | 0.00 | 0.74 | 17.25 | 103.45 | -53.81 | 64.66 | 0.8549 | -512.0 | -439.6 | |
| 0.00 | 0.95 | 0.00 | 0.88 | 15.78 | 103.78 | -53.48 | 66.17 | 0.8475 | -168.0 | -166.1 | |
| 1.29 | 2.24 | 1.21 | 2.10 | 15.56 | 103.19 | -54.07 | 66.64 | 0.8518 | -241.1 | -145.5 | |
| 0.00 | 1.90 | 0.00 | 1.79 | 15.75 | 103.11 | -54.15 | 66.45 | 0.8531 | -148.0 | -122.7 | |
| 0.00 | 1.47 | 0.00 | 1.27 | 10.60 | 104.69 | -52.57 | 71.75 | 0.8241 | 209.0 | 265.8 | |
| 1.47 | 6.46 | 1.46 | 6.47 | 16.18 | 101.19 | -56.07 | 66.67 | 0.8698 | -535.6 | -353.1 | |
| 1.55 | -8.00 | 1.56 | -8.00 | 16.09 | 100.90 | -56.36 | 66.87 | 0.8719 | -331.7 | 999999 | |
| 2.24 | 3.62 | 2.24 | 3.62 | 14.97 | 100.69 | -56.56 | 68.17 | 0.8705 | 412.3 | 279.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
