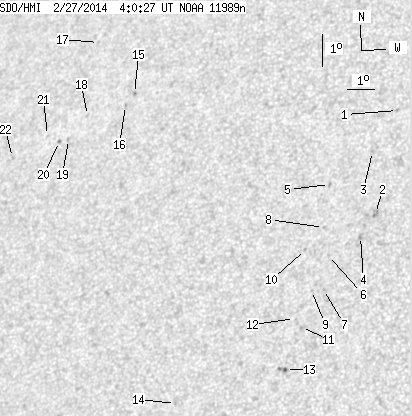

SDO HMI 2014-02-27 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 30.79 | 0.36 | 19.05 | 8.97 | 123.94 | -32.77 | 64.10 | 0.5946 | -647.0 | -566.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.82 | 11.67 | 129.23 | -27.48 | 55.58 | 0.5500 | -652.0 | -601.1 | |
| 0.00 | 4.14 | 0.00 | 2.42 | 8.51 | 128.77 | -27.94 | 61.06 | 0.5316 | -772.0 | -669.2 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 10.44 | 128.50 | -28.21 | 58.19 | 0.5493 | -700.0 | -491.9 | |
| 0.00 | 2.50 | 0.00 | 1.46 | 7.83 | 128.31 | -28.40 | 62.59 | 0.5329 | -804.0 | -627.1 | |
| 0.00 | 1.64 | 0.00 | 0.98 | 9.51 | 127.11 | -29.61 | 60.89 | 0.5599 | -649.0 | -513.8 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 7.31 | 127.25 | -29.46 | 64.32 | 0.5434 | -716.0 | -545.3 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 6.28 | 127.15 | -29.56 | 66.14 | 0.5383 | -797.0 | -647.5 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 8.19 | 127.01 | -29.70 | 63.08 | 0.5521 | -714.0 | -557.8 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 6.28 | 126.74 | -29.97 | 66.46 | 0.5439 | -566.0 | -459.5 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 7.55 | 126.44 | -30.27 | 64.57 | 0.5555 | -514.0 | -423.3 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 5.17 | 126.46 | -30.26 | 68.55 | 0.5413 | -780.0 | -652.3 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 5.46 | 126.20 | -30.51 | 68.23 | 0.5464 | -307.0 | -374.0 | |
| 0.60 | 3.02 | 0.36 | 1.78 | 3.93 | 125.96 | -30.75 | 71.02 | 0.5416 | -794.1 | -654.8 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 3.17 | 122.09 | -34.62 | 74.45 | 0.5911 | -331.0 | -320.5 | |
| 0.00 | 1.47 | 0.00 | 0.98 | 12.89 | 119.57 | -37.14 | 61.56 | 0.6716 | -828.0 | -696.8 | |
| 0.00 | 1.38 | 0.00 | 0.92 | 12.54 | 119.29 | -37.42 | 62.22 | 0.6728 | -804.0 | -671.8 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 14.65 | 117.84 | -38.88 | 60.38 | 0.7009 | -469.0 | -391.6 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 12.34 | 117.85 | -38.86 | 63.37 | 0.6881 | -536.0 | -406.8 | |
| 0.00 | 1.64 | 0.00 | 1.12 | 11.64 | 117.22 | -39.49 | 64.66 | 0.6915 | -571.0 | -517.5 | |
| 0.00 | 1.55 | 0.00 | 1.07 | 11.61 | 116.87 | -39.84 | 64.90 | 0.6953 | -725.0 | -609.5 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 11.84 | 116.36 | -40.36 | 64.89 | 0.7023 | -460.0 | -384.3 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 11.27 | 115.05 | -41.66 | 66.34 | 0.7142 | -691.0 | -483.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
