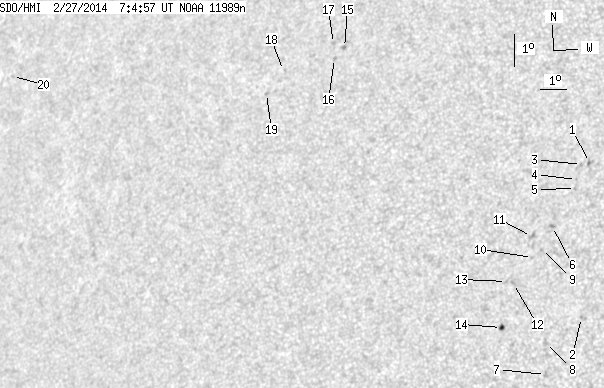

SDO HMI 2014-02-27 07:04:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.55 | 33.69 | 0.90 | 20.38 | 7.67 | 124.02 | -31.01 | 65.01 | 0.5622 | -661.5 | -530.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 07:04:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 1.39 | 8.66 | 128.80 | -26.23 | 59.21 | 0.5108 | -858.0 | -644.0 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 3.93 | 128.79 | -26.25 | 67.80 | 0.4785 | -625.0 | -622.8 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 8.61 | 128.53 | -26.50 | 59.55 | 0.5138 | -630.0 | -525.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 8.16 | 128.40 | -26.63 | 60.45 | 0.5122 | -689.0 | -635.1 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 7.88 | 128.38 | -26.65 | 60.93 | 0.5103 | -724.0 | -647.1 | |
| 0.00 | 2.07 | 0.00 | 1.19 | 6.76 | 127.68 | -27.35 | 63.52 | 0.5117 | -891.0 | -777.1 | |
| 0.00 | 2.67 | 0.00 | 1.51 | 2.28 | 127.63 | -27.40 | 71.88 | 0.4859 | -716.0 | -586.7 | |
| 0.00 | 3.71 | 0.00 | 2.11 | 3.24 | 127.60 | -27.43 | 70.03 | 0.4913 | -790.0 | -444.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 6.08 | 127.35 | -27.68 | 65.01 | 0.5117 | -928.0 | -729.2 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 5.85 | 127.06 | -27.97 | 65.65 | 0.5142 | -571.0 | -426.7 | |
| 0.00 | 3.10 | 0.00 | 1.80 | 6.50 | 126.99 | -28.04 | 64.57 | 0.5193 | -783.0 | -599.0 | |
| 0.00 | 1.98 | 0.00 | 1.15 | 5.10 | 126.45 | -28.58 | 67.46 | 0.5180 | -719.0 | -598.5 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 5.18 | 126.21 | -28.82 | 67.51 | 0.5217 | -580.0 | -538.2 | |
| 1.55 | 2.59 | 0.90 | 1.49 | 3.79 | 126.10 | -28.93 | 70.08 | 0.5155 | -708.0 | -582.5 | |
| 0.00 | 1.98 | 0.00 | 1.29 | 12.86 | 119.67 | -35.36 | 60.41 | 0.6511 | -818.0 | -650.3 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 12.54 | 119.35 | -35.68 | 61.08 | 0.6529 | -701.0 | -559.1 | |
| 0.00 | 1.72 | 0.00 | 1.13 | 13.02 | 119.23 | -35.80 | 60.50 | 0.6571 | -517.0 | -424.5 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 12.31 | 117.45 | -37.58 | 62.63 | 0.6733 | -406.0 | -418.2 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 11.63 | 116.90 | -38.13 | 63.88 | 0.6759 | -718.0 | -537.6 | |
| 0.00 | 1.55 | 0.00 | 1.28 | 13.17 | 105.84 | -49.19 | 67.47 | 0.8001 | 138.0 | 175.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
