SDO HMI 2014-02-27 09:01:12 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.88 | 407.50 | 38.00 | 203.57 | -1.60 | 150.67 | -3.31 | 280.84 | 0.1224 | -83.5 | -216.0 | |
|
previous
or next observation for the same group /

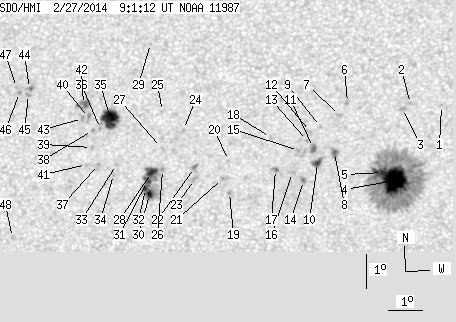

back to the solar disc SDO HMI 2014-02-27 09:01:12 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.47 | 0.21 | 154.59 | 0.62 | 355.21 | 0.1299 | 836.0 | 660.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 0.27 | 153.67 | -0.30 | 2.32 | 0.1306 | -890.0 | -670.8 | |
| 0.00 | 2.67 | 0.00 | 1.33 | 0.12 | 153.44 | -0.54 | 4.23 | 0.1282 | -1003.0 | -767.4 | |
| 34.66 | 250.33 | 17.24 | 124.52 | -2.03 | 153.19 | -0.78 | 8.59 | 0.0914 | -1584.4 | -461.1 | |
| 1.98 | -4.00 | 0.99 | -4.00 | -1.79 | 152.84 | -1.14 | 11.88 | 0.0966 | -1114.7 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.34 | 0.31 | 151.80 | -2.17 | 16.20 | 0.1364 | -911.0 | -786.8 | |
| 0.00 | 2.50 | 0.00 | 1.25 | -0.08 | 151.56 | -2.41 | 18.78 | 0.1312 | -841.0 | -700.6 | |
| 1.21 | 5.43 | 0.60 | 2.71 | -1.18 | 151.41 | -2.56 | 23.14 | 0.1142 | -1291.9 | -932.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -0.40 | 151.00 | -2.97 | 23.74 | 0.1295 | -912.0 | -700.4 | |
| 3.19 | 7.07 | 1.59 | 3.52 | -1.48 | 150.91 | -3.07 | 28.29 | 0.1133 | -1212.7 | -858.5 | |
| 0.00 | 5.00 | 0.00 | 2.50 | -1.03 | 150.79 | -3.18 | 27.40 | 0.1212 | -1237.0 | -976.8 | |
| 0.00 | 0.34 | 0.00 | 0.17 | -0.55 | 150.70 | -3.27 | 26.32 | 0.1294 | -890.0 | -823.2 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -0.82 | 150.61 | -3.36 | 27.90 | 0.1259 | -936.0 | -774.0 | |
| 0.00 | 2.33 | 0.00 | 1.16 | -2.01 | 150.49 | -3.48 | 34.00 | 0.1091 | -1248.0 | -1003.8 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -1.11 | 150.34 | -3.63 | 30.95 | 0.1237 | -906.0 | -768.2 | |
| 0.00 | 2.67 | 0.00 | 1.33 | -1.77 | 150.16 | -3.81 | 35.20 | 0.1158 | -847.0 | -663.2 | |
| 0.00 | 2.93 | 0.00 | 1.46 | -1.67 | 149.66 | -4.32 | 38.16 | 0.1223 | -1196.0 | -962.3 | |
| 0.00 | 1.72 | 0.00 | 0.86 | -0.72 | 149.51 | -4.46 | 34.71 | 0.1373 | -799.0 | -616.6 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -2.34 | 148.28 | -5.69 | 49.76 | 0.1304 | -889.0 | -749.7 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -1.39 | 148.26 | -5.72 | 44.75 | 0.1421 | -729.0 | -567.7 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -1.92 | 148.08 | -5.90 | 48.42 | 0.1379 | -787.0 | -689.1 | |
| 0.00 | 3.88 | 0.00 | 1.94 | -1.58 | 147.24 | -6.73 | 50.43 | 0.1527 | 1019.0 | 803.8 | |
| 0.00 | 3.10 | 0.00 | 1.55 | -1.94 | 147.24 | -6.73 | 52.29 | 0.1488 | 796.0 | 664.9 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -0.44 | 146.92 | -7.06 | 46.52 | 0.1701 | 850.0 | 620.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 0.11 | 146.29 | -7.69 | 46.74 | 0.1845 | -644.0 | -458.6 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -1.62 | 146.28 | -7.69 | 54.39 | 0.1653 | 941.0 | 775.4 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -0.97 | 146.26 | -7.72 | 51.39 | 0.1726 | 828.0 | 633.7 | |
| 6.90 | 41.56 | 3.47 | 20.87 | -1.71 | 145.95 | -8.02 | 55.95 | 0.1691 | 1092.0 | 767.2 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 2.15 | 145.93 | -8.05 | 40.97 | 0.2144 | 661.0 | 431.1 | |
| 3.28 | -28.00 | 1.65 | -28.00 | -2.36 | 145.89 | -8.09 | 59.47 | 0.1639 | 1268.9 | 999999 | |
| 3.10 | -28.00 | 1.56 | -28.00 | -1.94 | 145.83 | -8.14 | 57.51 | 0.1686 | 1190.4 | 999999 | |
| 1.47 | -28.00 | 0.74 | -28.00 | -2.18 | 145.77 | -8.20 | 58.91 | 0.1673 | 1079.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -1.45 | 144.90 | -9.07 | 58.01 | 0.1867 | 960.0 | 786.0 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -1.74 | 144.81 | -9.16 | 59.63 | 0.1853 | 931.0 | 720.1 | |
| 20.09 | 25.78 | 10.16 | 13.04 | -0.07 | 144.73 | -9.25 | 52.73 | 0.2029 | 1166.4 | 702.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -0.36 | 144.43 | -9.55 | 54.78 | 0.2040 | 1002.0 | 775.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -1.44 | 144.36 | -9.61 | 59.47 | 0.1947 | 965.0 | 782.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -0.42 | 144.18 | -9.79 | 55.68 | 0.2068 | 899.0 | 803.1 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -0.92 | 144.15 | -9.82 | 57.83 | 0.2024 | 966.0 | 798.5 | |
| 0.00 | 3.54 | 0.00 | 1.79 | -0.03 | 144.06 | -9.91 | 54.49 | 0.2124 | 1203.0 | 867.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -1.43 | 144.00 | -9.97 | 60.38 | 0.2001 | 819.0 | 635.9 | |
| 0.00 | 9.66 | 0.00 | 4.90 | 0.37 | 143.91 | -10.06 | 53.44 | 0.2185 | 962.0 | 870.2 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -0.05 | 143.88 | -10.09 | 55.08 | 0.2146 | 966.0 | 744.5 | |
| 0.00 | 3.10 | 0.00 | 1.59 | 0.89 | 142.28 | -11.69 | 55.77 | 0.2462 | 1050.0 | 884.3 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 0.71 | 142.25 | -11.72 | 56.44 | 0.2449 | 971.0 | 895.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 0.78 | 141.98 | -12.00 | 56.84 | 0.2494 | 935.0 | 764.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 0.93 | 141.89 | -12.09 | 56.53 | 0.2521 | 650.0 | 549.5 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -3.55 | 141.74 | -12.24 | 73.99 | 0.2211 | 758.0 | 522.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
