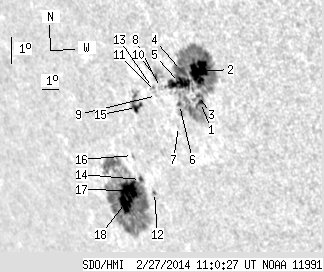

SDO HMI 2014-02-27 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.94 | 453.32 | 93.29 | 454.04 | -24.61 | 92.33 | -60.55 | 114.29 | 0.8692 | -33.4 | -28.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 212.53 | 1.72 | 192.20 | -23.83 | 95.99 | -56.90 | 113.82 | 0.8398 | 648.8 | 194.1 | |
| 25.78 | -1.00 | 23.02 | -1.00 | -22.89 | 96.49 | -56.40 | 112.78 | 0.8344 | 828.2 | 999999 | |
| 0.95 | -1.00 | 0.86 | -1.00 | -23.61 | 96.02 | -56.87 | 113.57 | 0.8393 | 614.9 | 999999 | |
| 5.95 | -1.00 | 5.44 | -1.00 | -22.77 | 95.56 | -57.33 | 112.51 | 0.8424 | -250.6 | 999999 | |
| 18.54 | -1.00 | 17.10 | -1.00 | -23.11 | 95.21 | -57.68 | 112.88 | 0.8457 | 420.7 | 999999 | |
| 0.78 | -1.00 | 0.73 | -1.00 | -23.76 | 94.75 | -58.14 | 113.59 | 0.8503 | -483.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -24.41 | 94.21 | -58.67 | 114.28 | 0.8554 | -383.0 | -403.6 | |
| 0.00 | 2.41 | 0.00 | 2.30 | -23.15 | 94.01 | -58.88 | 112.78 | 0.8559 | 121.0 | 74.3 | |
| 0.00 | 0.60 | 0.00 | 0.58 | -23.36 | 93.60 | -59.29 | 112.98 | 0.8594 | -368.0 | -399.1 | |
| 0.86 | 9.05 | 0.82 | 8.57 | -22.79 | 93.94 | -58.94 | 112.36 | 0.8561 | -507.8 | -321.5 | |
| 0.00 | 1.64 | 0.00 | 1.58 | -23.23 | 93.63 | -59.26 | 112.84 | 0.8591 | -379.0 | -352.6 | |
| 0.52 | 1.55 | 0.54 | 1.62 | -26.21 | 91.11 | -61.78 | 115.98 | 0.8813 | -614.0 | -487.4 | |
| 0.00 | 1.64 | 0.00 | 1.58 | -23.10 | 93.53 | -59.35 | 112.67 | 0.8597 | 353.0 | 109.4 | |
| 1.47 | 207.87 | 1.54 | 229.54 | -25.73 | 90.56 | -62.33 | 115.38 | 0.8850 | -701.3 | -174.5 | |
| 4.83 | 14.05 | 4.84 | 14.05 | -23.58 | 92.12 | -60.77 | 113.09 | 0.8714 | -611.3 | -35.3 | |
| 0.00 | 1.38 | 0.00 | 1.45 | -24.97 | 90.68 | -62.20 | 114.53 | 0.8834 | -464.0 | -386.7 | |
| 18.36 | -14.00 | 20.01 | -14.00 | -25.98 | 89.52 | -63.37 | 115.55 | 0.8926 | -788.6 | 999999 | |
| 15.00 | -14.00 | 16.67 | -14.00 | -26.30 | 88.90 | -63.99 | 115.85 | 0.8972 | -468.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
