SDO HMI 2014-02-27 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.71 | 479.05 | 89.81 | 440.16 | -24.52 | 92.43 | -57.16 | 114.61 | 0.8410 | -67.8 | 1.2 | |
|
previous
or next observation for the same group /

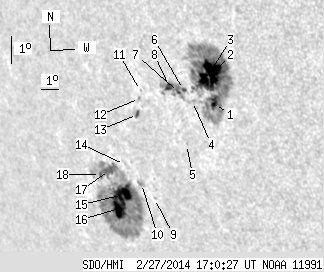

back to the solar disc SDO HMI 2014-02-27 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.58 | 213.42 | 2.16 | 177.01 | -23.78 | 96.30 | -53.29 | 114.32 | 0.8073 | 682.6 | 268.1 | |
| 28.52 | -1.00 | 23.52 | -1.00 | -22.84 | 96.74 | -52.85 | 113.24 | 0.8017 | 981.4 | 999999 | |
| 11.20 | -1.00 | 9.35 | -1.00 | -23.01 | 96.21 | -53.38 | 113.36 | 0.8070 | 592.1 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.87 | -23.58 | 95.21 | -54.38 | 113.89 | 0.8171 | -318.0 | -261.1 | |
| 0.00 | 0.34 | 0.00 | 0.30 | -24.83 | 94.05 | -55.53 | 115.22 | 0.8292 | -436.0 | -404.0 | |
| 1.12 | 28.86 | 0.96 | 25.06 | -23.17 | 94.95 | -54.64 | 113.36 | 0.8189 | 514.7 | -84.5 | |
| 0.95 | -6.00 | 0.82 | -6.00 | -23.23 | 94.63 | -54.96 | 113.39 | 0.8219 | 301.9 | 999999 | |
| 4.05 | -6.00 | 3.53 | -6.00 | -23.01 | 94.26 | -55.33 | 113.06 | 0.8249 | -461.1 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.41 | -26.26 | 91.04 | -58.55 | 116.44 | 0.8565 | -595.0 | -574.2 | |
| 0.00 | 4.31 | 0.00 | 4.14 | -25.73 | 90.63 | -58.96 | 115.77 | 0.8591 | -498.0 | -465.4 | |
| 0.00 | 0.52 | 0.00 | 0.47 | -22.96 | 92.60 | -56.99 | 112.78 | 0.8396 | 391.0 | 305.0 | |
| 0.00 | 1.55 | 0.00 | 1.41 | -23.20 | 92.38 | -57.21 | 113.03 | 0.8417 | -66.0 | 6.8 | |
| 1.64 | 3.19 | 1.51 | 2.94 | -23.66 | 91.94 | -57.65 | 113.52 | 0.8460 | -628.6 | -511.6 | |
| 0.00 | 0.43 | 0.00 | 0.42 | -25.06 | 90.07 | -59.52 | 114.93 | 0.8629 | -474.0 | -440.2 | |
| 21.80 | 222.64 | 21.76 | 225.13 | -25.95 | 89.27 | -60.32 | 115.84 | 0.8700 | -847.8 | -181.6 | |
| 16.89 | -15.00 | 17.19 | -15.00 | -26.33 | 88.59 | -61.00 | 116.20 | 0.8756 | -518.5 | 999999 | |
| 7.32 | -15.00 | 7.34 | -15.00 | -25.14 | 89.01 | -60.58 | 114.89 | 0.8713 | -604.1 | 999999 | |
| 1.64 | -15.00 | 1.67 | -15.00 | -25.20 | 88.35 | -61.24 | 114.89 | 0.8764 | -614.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
