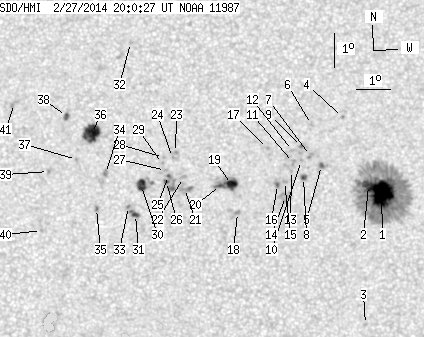

SDO HMI 2014-02-27 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.99 | 406.89 | 41.94 | 203.19 | -1.65 | 151.11 | 3.17 | 331.63 | 0.1247 | -305.7 | -262.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.92 | 252.61 | 20.45 | 126.23 | -1.91 | 153.35 | 5.41 | 314.20 | 0.1321 | -1530.3 | -419.9 | |
| 2.58 | -1.00 | 1.29 | -1.00 | -1.67 | 152.96 | 5.02 | 317.59 | 0.1304 | -1119.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -5.81 | 152.89 | 4.95 | 285.52 | 0.0896 | -984.0 | -689.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 0.35 | 152.19 | 4.25 | 330.51 | 0.1513 | -962.0 | -851.7 | |
| 0.78 | 3.79 | 0.39 | 1.89 | -1.09 | 151.56 | 3.63 | 329.24 | 0.1242 | -1210.4 | -838.3 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 0.13 | 151.26 | 3.33 | 335.50 | 0.1407 | -923.0 | -732.5 | |
| 0.00 | 2.50 | 0.00 | 1.25 | -0.79 | 151.23 | 3.30 | 332.69 | 0.1260 | -1061.0 | -949.5 | |
| 1.21 | 2.67 | 0.60 | 1.33 | -1.45 | 151.02 | 3.09 | 331.68 | 0.1141 | -1204.6 | -1037.4 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -0.52 | 150.97 | 3.03 | 335.51 | 0.1281 | -1153.0 | -994.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -0.94 | 150.97 | 3.03 | 334.09 | 0.1215 | -992.0 | -705.3 | |
| 0.00 | 2.84 | 0.00 | 1.42 | -1.00 | 150.73 | 2.79 | 335.67 | 0.1188 | -1053.0 | -860.1 | |
| 0.00 | 1.55 | 0.00 | 0.77 | -0.65 | 150.70 | 2.76 | 337.07 | 0.1244 | -717.0 | -611.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -1.24 | 150.67 | 2.73 | 335.29 | 0.1146 | -999.0 | -835.4 | |
| 0.00 | 9.99 | 0.00 | 4.98 | -2.02 | 150.49 | 2.56 | 333.71 | 0.1011 | -648.0 | -718.5 | |
| 0.00 | 2.07 | 0.00 | 1.03 | -1.57 | 150.46 | 2.53 | 335.79 | 0.1079 | -1026.0 | -929.8 | |
| 0.60 | 1.98 | 0.30 | 0.99 | -1.66 | 150.25 | 2.32 | 337.25 | 0.1050 | -1206.1 | -1011.2 | |
| 0.00 | 1.46 | 0.00 | 0.73 | -0.59 | 149.96 | 2.02 | 342.96 | 0.1209 | -940.0 | -786.6 | |
| 0.00 | 2.33 | 0.00 | 1.16 | -2.50 | 149.06 | 1.13 | 346.48 | 0.0847 | -1028.0 | -874.5 | |
| 7.06 | 21.19 | 3.52 | 10.55 | -1.67 | 148.89 | 0.95 | 350.23 | 0.0983 | -1199.8 | -496.9 | |
| 1.29 | -19.00 | 0.64 | -19.00 | -1.70 | 148.56 | 0.63 | 353.51 | 0.0970 | -891.1 | 999999 | |
| 0.00 | 9.65 | 0.00 | 4.80 | -1.78 | 147.49 | -0.44 | 4.68 | 0.0952 | -46.0 | -187.7 | |
| 0.00 | 3.10 | 0.00 | 1.54 | -1.46 | 147.46 | -0.47 | 4.71 | 0.1009 | 70.0 | 119.3 | |
| 0.00 | 2.41 | 0.00 | 1.20 | -0.71 | 147.23 | -0.71 | 6.25 | 0.1142 | 921.0 | 770.0 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -0.86 | 147.14 | -0.80 | 7.19 | 0.1118 | 888.0 | 693.5 | |
| 0.52 | 13.18 | 0.26 | 6.56 | -1.39 | 147.02 | -0.92 | 9.00 | 0.1029 | 1002.5 | 754.8 | |
| 0.95 | -25.00 | 0.47 | -25.00 | -1.57 | 146.96 | -0.98 | 9.87 | 0.1000 | 1213.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -1.25 | 146.93 | -1.01 | 9.61 | 0.1057 | 955.0 | 731.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -0.86 | 146.87 | -1.07 | 9.55 | 0.1125 | 942.0 | 672.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -1.04 | 146.84 | -1.10 | 10.09 | 0.1096 | 786.0 | 677.9 | |
| 6.63 | 14.47 | 3.30 | 7.21 | -1.69 | 146.21 | -1.72 | 17.36 | 0.1010 | 1190.4 | 802.4 | |
| 1.81 | 4.82 | 0.90 | 2.40 | -2.55 | 146.03 | -1.90 | 22.25 | 0.0879 | 1182.6 | 948.0 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 2.59 | 145.89 | -2.04 | 11.83 | 0.1745 | 988.0 | 730.0 | |
| 0.00 | 1.64 | 0.00 | 0.81 | -2.31 | 145.83 | -2.11 | 23.35 | 0.0931 | 1086.0 | 849.4 | |
| 0.00 | 3.02 | 0.00 | 1.50 | -1.33 | 145.15 | -2.79 | 25.45 | 0.1137 | 1115.0 | 872.7 | |
| 0.00 | 2.24 | 0.00 | 1.12 | -2.37 | 144.88 | -3.06 | 32.38 | 0.1000 | 1086.0 | 896.2 | |
| 18.35 | 22.66 | 9.17 | 11.33 | -0.13 | 144.73 | -3.20 | 24.44 | 0.1357 | 1136.1 | 756.7 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -0.90 | 144.28 | -3.65 | 30.17 | 0.1272 | 1011.0 | 807.8 | |
| 1.29 | 3.19 | 0.65 | 1.60 | 0.39 | 143.99 | -3.94 | 27.57 | 0.1493 | 1184.4 | 945.0 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -1.25 | 143.45 | -4.48 | 37.11 | 0.1301 | 892.0 | 825.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -3.00 | 143.24 | -4.70 | 48.36 | 0.1100 | 902.0 | 677.6 | |
| 0.00 | 3.88 | 0.00 | 1.95 | 0.80 | 142.44 | -5.49 | 34.64 | 0.1692 | 565.0 | 756.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
