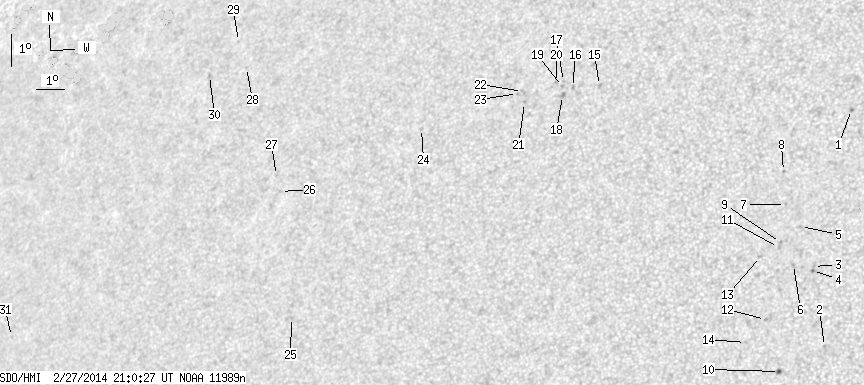

SDO HMI 2014-02-27 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 40.06 | 0.32 | 23.57 | 9.73 | 120.47 | -26.91 | 57.24 | 0.5253 | -448.3 | -411.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.76 | 11.52 | 129.32 | -18.06 | 43.97 | 0.4395 | -879.0 | -765.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 4.26 | 128.79 | -18.59 | 58.85 | 0.3731 | -858.0 | -759.7 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 6.71 | 128.37 | -19.01 | 54.17 | 0.4008 | -740.0 | -540.3 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 6.59 | 128.34 | -19.04 | 54.45 | 0.4001 | -1101.0 | -885.6 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 7.96 | 127.90 | -19.48 | 52.40 | 0.4187 | -815.0 | -663.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 6.80 | 127.73 | -19.65 | 54.90 | 0.4099 | -813.0 | -629.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 8.66 | 127.39 | -20.00 | 51.82 | 0.4319 | -672.0 | -505.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.68 | 127.26 | -20.12 | 50.16 | 0.4435 | -725.0 | -555.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 7.49 | 127.29 | -20.10 | 54.15 | 0.4221 | -685.0 | -606.4 | |
| 0.60 | 2.67 | 0.32 | 1.43 | 3.56 | 127.39 | -19.99 | 62.29 | 0.3872 | -990.4 | -784.6 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 7.34 | 127.23 | -20.15 | 54.52 | 0.4214 | -657.0 | -576.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 5.16 | 126.90 | -20.48 | 59.38 | 0.4067 | -767.0 | -649.5 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 7.09 | 126.67 | -20.72 | 55.77 | 0.4264 | -852.0 | -548.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 4.49 | 126.28 | -21.10 | 61.56 | 0.4099 | 743.0 | 489.8 | |
| 0.00 | 1.90 | 0.00 | 1.12 | 12.70 | 120.93 | -26.45 | 52.98 | 0.5463 | -859.0 | -668.1 | |
| 0.00 | 1.55 | 0.00 | 0.92 | 12.69 | 120.01 | -27.37 | 53.93 | 0.5570 | -915.0 | -703.4 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 12.90 | 119.68 | -27.70 | 53.96 | 0.5626 | -703.0 | -599.8 | |
| 0.00 | 2.58 | 0.00 | 1.54 | 12.46 | 119.70 | -27.69 | 54.59 | 0.5588 | -892.0 | -769.2 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 12.75 | 119.66 | -27.72 | 54.20 | 0.5615 | -902.0 | -723.6 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 12.89 | 119.44 | -27.94 | 54.21 | 0.5653 | -704.0 | -566.7 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 12.32 | 118.40 | -28.98 | 56.03 | 0.5730 | -631.0 | -554.3 | |
| 0.00 | 1.81 | 0.00 | 1.10 | 12.68 | 118.29 | -29.10 | 55.62 | 0.5771 | -721.0 | -602.4 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 12.63 | 118.12 | -29.27 | 55.85 | 0.5787 | -594.0 | -484.8 | |
| 0.00 | 1.46 | 0.00 | 0.91 | 11.75 | 114.82 | -32.56 | 59.89 | 0.6113 | -668.0 | -500.6 | |
| 0.00 | 1.21 | 0.00 | 0.77 | 6.24 | 110.66 | -36.72 | 70.74 | 0.6320 | 698.0 | 569.9 | |
| 0.00 | 1.46 | 0.00 | 0.97 | 10.17 | 109.82 | -37.57 | 65.53 | 0.6616 | 481.0 | 469.1 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 10.69 | 109.59 | -37.79 | 64.96 | 0.6670 | 648.0 | 594.2 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 14.22 | 107.79 | -39.59 | 61.36 | 0.7063 | 552.0 | 476.8 | |
| 0.00 | 0.43 | 0.00 | 0.30 | 15.09 | 107.28 | -40.10 | 60.57 | 0.7165 | 451.0 | 378.4 | |
| 0.00 | 1.29 | 0.00 | 0.92 | 14.10 | 106.33 | -41.06 | 62.38 | 0.7213 | 493.0 | 403.1 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 6.66 | 99.22 | -48.17 | 75.01 | 0.7684 | 353.0 | 302.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
