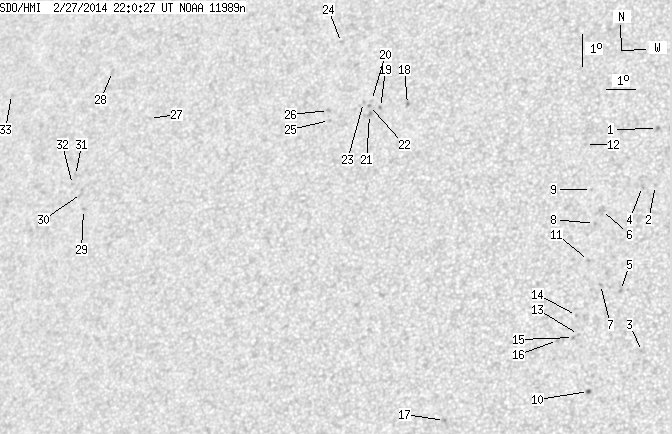

SDO HMI 2014-02-27 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 49.19 | 0.37 | 28.72 | 9.91 | 120.94 | -25.90 | 56.00 | 0.5145 | -474.9 | -330.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.85 | 11.53 | 129.28 | -17.56 | 43.13 | 0.4342 | -814.0 | -705.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.75 | 129.32 | -17.52 | 46.04 | 0.4138 | -648.0 | -530.5 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 4.68 | 129.11 | -17.72 | 56.61 | 0.3650 | -485.0 | -409.4 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 9.74 | 128.91 | -17.93 | 46.74 | 0.4184 | -802.0 | -645.8 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 6.56 | 128.36 | -18.47 | 53.65 | 0.3925 | -1097.0 | -915.4 | |
| 0.00 | 5.08 | 0.00 | 2.78 | 9.05 | 127.64 | -19.19 | 49.93 | 0.4260 | -215.0 | -322.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 6.77 | 127.72 | -19.11 | 54.17 | 0.4028 | -815.0 | -626.0 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 8.66 | 127.44 | -19.39 | 50.94 | 0.4245 | -746.0 | -538.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 9.72 | 127.28 | -19.55 | 49.27 | 0.4371 | -654.0 | -529.9 | |
| 0.69 | 2.07 | 0.37 | 1.11 | 3.54 | 127.44 | -19.39 | 61.58 | 0.3785 | -1015.8 | -812.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 7.53 | 127.30 | -19.53 | 53.28 | 0.4152 | -730.0 | -627.6 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 11.13 | 127.00 | -19.83 | 47.29 | 0.4550 | -571.0 | -478.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 5.28 | 127.08 | -19.76 | 58.18 | 0.3978 | -790.0 | -561.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 5.86 | 126.99 | -19.84 | 57.06 | 0.4040 | -800.0 | -624.1 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 5.19 | 126.92 | -19.91 | 58.57 | 0.3992 | -737.0 | -633.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 5.13 | 126.41 | -20.42 | 59.37 | 0.4056 | -726.0 | -595.2 | |
| 0.00 | 2.15 | 0.00 | 1.19 | 2.88 | 122.84 | -23.99 | 67.96 | 0.4400 | -741.0 | -525.6 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 12.70 | 120.99 | -25.84 | 52.33 | 0.5393 | -846.0 | -648.4 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 12.66 | 120.08 | -26.75 | 53.35 | 0.5495 | -772.0 | -680.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 12.90 | 119.74 | -27.09 | 53.34 | 0.5555 | -626.0 | -448.7 | |
| 0.00 | 2.50 | 0.00 | 1.48 | 12.46 | 119.73 | -27.11 | 54.01 | 0.5520 | -927.0 | -755.9 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 12.74 | 119.69 | -27.14 | 53.62 | 0.5548 | -880.0 | -730.6 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 12.85 | 119.48 | -27.36 | 53.68 | 0.5582 | -745.0 | -614.5 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 14.82 | 118.46 | -28.37 | 51.88 | 0.5862 | -317.0 | -346.3 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 12.36 | 118.36 | -28.47 | 55.50 | 0.5672 | -709.0 | -526.3 | |
| 0.00 | 1.72 | 0.00 | 1.04 | 12.67 | 118.29 | -28.54 | 55.10 | 0.5706 | -789.0 | -645.5 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 12.88 | 111.84 | -35.00 | 60.12 | 0.6472 | 44.0 | 110.1 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 14.49 | 110.15 | -36.68 | 59.13 | 0.6761 | 487.0 | 380.3 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 10.20 | 109.75 | -37.08 | 65.20 | 0.6560 | 673.0 | 620.8 | |
| 0.00 | 3.36 | 0.00 | 2.21 | 10.70 | 109.61 | -37.23 | 64.59 | 0.6605 | 683.0 | 505.3 | |
| 0.00 | 1.55 | 0.00 | 1.03 | 11.29 | 109.29 | -37.54 | 63.97 | 0.6673 | 690.0 | 459.7 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 11.02 | 109.22 | -37.62 | 64.39 | 0.6667 | 422.0 | 404.6 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 14.09 | 106.26 | -40.57 | 62.11 | 0.7161 | 527.0 | 497.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
