SDO HMI 2014-02-27 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.67 | 99.61 | 20.25 | 78.95 | 15.81 | 100.54 | -46.30 | 63.02 | 0.7823 | -39.9 | -55.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-27 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

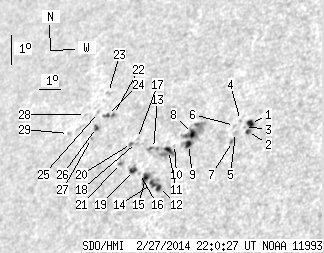

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 7.76 | 2.44 | 5.78 | 16.22 | 104.09 | -42.74 | 60.70 | 0.7495 | -770.6 | -571.1 | |
| 0.78 | -1.00 | 0.58 | -1.00 | 15.97 | 104.03 | -42.80 | 61.04 | 0.7489 | -656.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 16.15 | 103.86 | -42.97 | 60.92 | 0.7515 | -386.0 | -358.6 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 16.36 | 103.63 | -43.20 | 60.79 | 0.7548 | -385.0 | -310.9 | |
| 0.00 | 1.64 | 0.00 | 1.23 | 15.98 | 103.52 | -43.31 | 61.30 | 0.7541 | -422.0 | -254.3 | |
| 0.00 | 1.03 | 0.00 | 0.78 | 16.22 | 103.41 | -43.42 | 61.08 | 0.7563 | -325.0 | -296.1 | |
| 0.00 | 2.07 | 0.00 | 1.55 | 15.70 | 103.47 | -43.36 | 61.67 | 0.7532 | -453.0 | -455.0 | |
| 2.84 | 29.21 | 2.21 | 22.71 | 16.13 | 101.62 | -45.22 | 62.13 | 0.7736 | -904.1 | -452.9 | |
| 2.93 | -8.00 | 2.28 | -8.00 | 15.78 | 101.54 | -45.29 | 62.58 | 0.7728 | -745.8 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.27 | 15.85 | 100.90 | -45.93 | 62.83 | 0.7792 | -501.0 | -425.2 | |
| 2.76 | 9.91 | 2.18 | 7.82 | 15.67 | 100.68 | -46.15 | 63.13 | 0.7806 | -469.5 | 86.5 | |
| 2.07 | 18.01 | 1.62 | 14.23 | 14.51 | 100.57 | -46.27 | 64.57 | 0.7768 | 786.9 | 496.1 | |
| 0.00 | 3.62 | 0.00 | 2.90 | 15.81 | 99.97 | -46.86 | 63.32 | 0.7881 | -259.0 | -171.7 | |
| 1.98 | -12.00 | 1.56 | -12.00 | 14.67 | 100.26 | -46.58 | 64.53 | 0.7805 | 758.7 | 999999 | |
| 3.53 | -12.00 | 2.81 | -12.00 | 14.89 | 99.88 | -46.96 | 64.44 | 0.7852 | 676.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 15.05 | 99.56 | -47.27 | 64.40 | 0.7889 | 588.0 | 528.0 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 16.21 | 99.11 | -47.72 | 63.26 | 0.7978 | -421.0 | -321.1 | |
| 0.00 | 1.12 | 0.00 | 0.91 | 16.08 | 99.11 | -47.73 | 63.41 | 0.7974 | -539.0 | -374.5 | |
| 2.50 | 5.00 | 2.02 | 4.04 | 15.18 | 99.25 | -47.58 | 64.40 | 0.7924 | 628.6 | 427.3 | |
| 0.43 | 1.72 | 0.35 | 1.41 | 16.07 | 98.88 | -47.95 | 63.52 | 0.7995 | -392.8 | -337.7 | |
| 0.52 | 2.84 | 0.42 | 2.34 | 15.47 | 98.56 | -48.27 | 64.37 | 0.8000 | -640.2 | -439.9 | |
| 0.00 | 1.38 | 0.00 | 1.17 | 17.12 | 97.68 | -49.16 | 62.87 | 0.8146 | 738.0 | 669.9 | |
| 0.00 | 1.46 | 0.00 | 1.27 | 17.89 | 97.15 | -49.68 | 62.24 | 0.8222 | 446.0 | 413.5 | |
| 0.60 | 2.67 | 0.52 | 2.29 | 17.12 | 97.39 | -49.44 | 63.00 | 0.8172 | 794.1 | 706.0 | |
| 0.00 | 1.12 | 0.00 | 0.97 | 17.27 | 96.90 | -49.93 | 63.05 | 0.8220 | 570.0 | 531.7 | |
| 1.46 | 2.67 | 1.26 | 2.30 | 16.78 | 96.98 | -49.85 | 63.57 | 0.8195 | 693.5 | 631.0 | |
| 0.00 | 1.03 | 0.00 | 0.89 | 16.43 | 96.86 | -49.97 | 64.01 | 0.8193 | 578.0 | 496.0 | |
| 0.00 | 0.95 | 0.00 | 0.83 | 17.27 | 96.26 | -50.57 | 63.32 | 0.8276 | 296.0 | 275.3 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 16.72 | 95.63 | -51.20 | 64.21 | 0.8312 | 455.0 | 397.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
