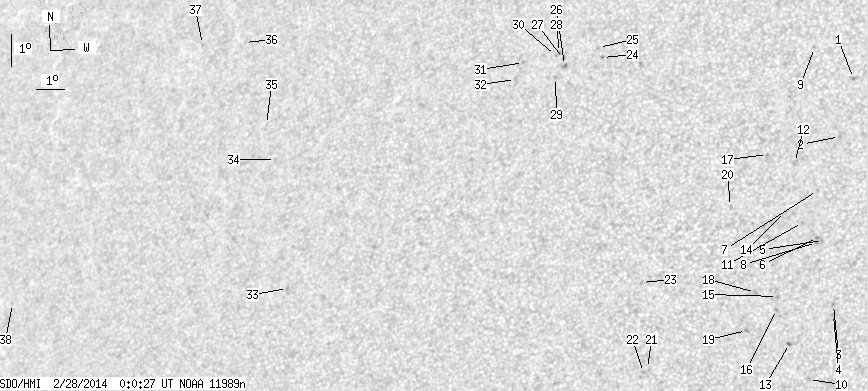

SDO HMI 2014-02-28 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 48.97 | 0.00 | 27.73 | 8.49 | 122.44 | -23.29 | 55.55 | 0.4709 | -470.9 | -385.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.89 | 11.58 | 129.28 | -16.45 | 41.18 | 0.4231 | -866.0 | -643.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 9.78 | 128.94 | -16.79 | 44.76 | 0.4060 | -862.0 | -698.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 4.63 | 128.95 | -16.79 | 55.21 | 0.3520 | -925.0 | -754.3 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 4.33 | 128.95 | -16.78 | 55.92 | 0.3491 | -911.0 | -780.2 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 6.60 | 128.55 | -17.19 | 51.54 | 0.3765 | -696.0 | -544.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 6.69 | 128.39 | -17.35 | 51.60 | 0.3795 | -866.0 | -786.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 8.14 | 128.33 | -17.40 | 48.82 | 0.3951 | -668.0 | -433.8 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 6.54 | 128.36 | -17.37 | 51.96 | 0.3783 | -1019.0 | -804.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 12.60 | 127.98 | -17.75 | 41.77 | 0.4486 | -394.0 | -476.4 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 2.40 | 128.21 | -17.52 | 61.83 | 0.3428 | -869.0 | -723.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 7.17 | 127.90 | -17.83 | 51.41 | 0.3904 | -906.0 | -738.6 | |
| 0.00 | 2.76 | 0.00 | 1.50 | 9.03 | 127.56 | -18.17 | 48.39 | 0.4137 | -662.0 | -554.5 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 3.51 | 127.60 | -18.13 | 59.94 | 0.3605 | -1031.0 | -830.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 7.53 | 127.35 | -18.39 | 51.56 | 0.4009 | -852.0 | -589.5 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 4.95 | 127.19 | -18.55 | 57.21 | 0.3786 | -881.0 | -678.6 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 4.55 | 127.17 | -18.57 | 58.12 | 0.3754 | -749.0 | -533.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 9.32 | 126.69 | -19.04 | 49.22 | 0.4270 | -670.0 | -532.2 | |
| 0.00 | 2.24 | 0.00 | 1.20 | 5.10 | 126.49 | -19.24 | 57.86 | 0.3894 | -659.0 | -478.4 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 3.96 | 126.24 | -19.50 | 60.74 | 0.3833 | 825.0 | 522.0 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 7.76 | 125.59 | -20.14 | 53.68 | 0.4253 | -717.0 | -622.5 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 2.96 | 123.10 | -22.63 | 66.52 | 0.4208 | -367.0 | -532.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 2.84 | 122.97 | -22.76 | 66.89 | 0.4219 | -855.0 | -728.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 5.58 | 122.83 | -22.91 | 61.37 | 0.4432 | 766.0 | 632.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 12.63 | 121.05 | -24.69 | 51.15 | 0.5254 | -793.0 | -661.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 12.95 | 120.88 | -24.85 | 50.86 | 0.5302 | -576.0 | -447.2 | |
| 0.00 | 1.98 | 0.00 | 1.16 | 12.45 | 119.79 | -25.95 | 52.82 | 0.5384 | -936.0 | -779.8 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 12.67 | 119.73 | -26.00 | 52.54 | 0.5410 | -919.0 | -753.3 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 12.87 | 119.57 | -26.16 | 52.42 | 0.5446 | -685.0 | -569.6 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 12.09 | 119.52 | -26.21 | 53.65 | 0.5384 | -747.0 | -643.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 12.78 | 119.44 | -26.29 | 52.68 | 0.5453 | -736.0 | -560.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 12.63 | 118.37 | -27.36 | 54.02 | 0.5565 | -736.0 | -594.7 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 12.11 | 118.15 | -27.58 | 55.01 | 0.5547 | -700.0 | -580.4 | |
| 0.00 | 1.64 | 0.00 | 1.02 | 6.17 | 110.67 | -35.06 | 69.92 | 0.6103 | 698.0 | 581.6 | |
| 0.00 | 1.72 | 0.00 | 1.11 | 10.19 | 109.82 | -35.91 | 64.48 | 0.6421 | 791.0 | 615.7 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 11.32 | 109.32 | -36.41 | 63.21 | 0.6543 | 588.0 | 505.4 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 14.00 | 108.03 | -37.70 | 60.45 | 0.6845 | 678.0 | 599.6 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 14.07 | 106.37 | -39.37 | 61.40 | 0.7031 | 539.0 | 407.8 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 6.63 | 99.77 | -45.96 | 74.26 | 0.7442 | 473.0 | 418.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
