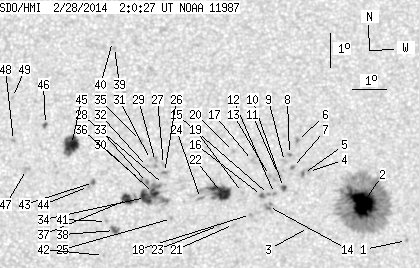

SDO HMI 2014-02-28 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.84 | 425.67 | 48.47 | 213.54 | -1.55 | 151.00 | 6.37 | 315.21 | 0.1558 | -181.9 | -251.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.57 | -2.89 | 154.77 | 10.13 | 292.70 | 0.1913 | -778.0 | -644.6 | |
| 37.85 | 241.94 | 19.06 | 121.82 | -1.81 | 153.44 | 8.80 | 301.22 | 0.1797 | -1378.0 | -405.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -2.55 | 151.82 | 7.18 | 302.72 | 0.1492 | 739.0 | 514.3 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -0.88 | 151.82 | 7.18 | 311.17 | 0.1668 | -890.0 | -718.6 | |
| 0.00 | 2.33 | 0.00 | 1.17 | -0.95 | 151.67 | 7.03 | 311.49 | 0.1642 | -981.0 | -833.4 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 0.04 | 151.49 | 6.85 | 316.42 | 0.1739 | -895.0 | -779.9 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -0.77 | 151.34 | 6.70 | 313.66 | 0.1621 | -1076.0 | -872.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -0.38 | 151.25 | 6.61 | 315.73 | 0.1657 | -913.0 | -833.3 | |
| 0.00 | 2.93 | 0.00 | 1.47 | -0.60 | 151.10 | 6.46 | 315.49 | 0.1613 | -674.0 | -569.3 | |
| 1.21 | 2.67 | 0.60 | 1.34 | -1.37 | 151.07 | 6.43 | 312.04 | 0.1515 | -1035.9 | -747.5 | |
| 0.00 | 3.62 | 0.00 | 1.82 | -0.99 | 150.92 | 6.28 | 314.56 | 0.1543 | -921.0 | -779.2 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -1.55 | 150.80 | 6.16 | 312.37 | 0.1460 | -910.0 | -708.6 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -1.02 | 150.65 | 6.01 | 315.67 | 0.1506 | -931.0 | -765.7 | |
| 0.00 | 5.52 | 0.00 | 2.76 | -1.94 | 150.62 | 5.99 | 311.18 | 0.1391 | -968.0 | -813.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -1.59 | 150.62 | 5.99 | 313.06 | 0.1433 | -1069.0 | -924.1 | |
| 0.78 | 2.50 | 0.39 | 1.25 | -1.62 | 150.41 | 5.78 | 313.92 | 0.1403 | -1148.0 | -895.2 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -0.58 | 150.14 | 5.51 | 320.16 | 0.1505 | -858.0 | -681.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -2.19 | 150.08 | 5.45 | 312.53 | 0.1294 | -939.0 | -765.9 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -1.54 | 149.84 | 5.21 | 317.32 | 0.1345 | -893.0 | -689.1 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -0.31 | 149.58 | 4.94 | 324.26 | 0.1482 | -798.0 | -633.1 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -2.49 | 149.58 | 4.94 | 313.56 | 0.1194 | -768.0 | -557.6 | |
| 16.73 | 33.20 | 8.35 | 16.57 | -1.54 | 149.22 | 4.58 | 320.94 | 0.1274 | -1116.7 | -550.3 | |
| 0.00 | 1.55 | 0.00 | 0.77 | -2.53 | 149.13 | 4.50 | 316.10 | 0.1135 | -934.0 | -773.4 | |
| 0.00 | 2.07 | 0.00 | 1.03 | -1.73 | 148.59 | 3.96 | 324.11 | 0.1183 | -826.0 | -664.2 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -2.33 | 147.73 | 3.10 | 327.59 | 0.1012 | 775.0 | 653.8 | |
| 0.00 | 2.24 | 0.00 | 1.12 | -0.96 | 147.52 | 2.89 | 335.17 | 0.1205 | 954.0 | 770.0 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -0.72 | 147.49 | 2.86 | 336.19 | 0.1241 | 693.0 | 507.9 | |
| 0.00 | 1.98 | 0.00 | 0.99 | -1.32 | 147.49 | 2.86 | 334.10 | 0.1146 | 409.0 | 272.1 | |
| 0.00 | 3.45 | 0.00 | 1.72 | -0.63 | 147.26 | 2.62 | 338.24 | 0.1239 | 951.0 | 763.6 | |
| 5.43 | 33.54 | 2.71 | 16.71 | -1.58 | 147.20 | 2.56 | 335.50 | 0.1082 | 906.6 | 291.1 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -0.57 | 147.11 | 2.47 | 339.54 | 0.1240 | 789.0 | 632.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -0.78 | 147.02 | 2.38 | 339.63 | 0.1200 | 891.0 | 685.2 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -1.26 | 147.02 | 2.38 | 338.16 | 0.1122 | 962.0 | 824.3 | |
| 8.62 | -30.00 | 4.29 | -30.00 | -1.71 | 146.96 | 2.32 | 337.10 | 0.1046 | 1080.1 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.29 | -0.00 | 146.81 | 2.18 | 343.16 | 0.1317 | 874.0 | 641.5 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -1.20 | 146.81 | 2.17 | 340.09 | 0.1119 | 1071.0 | 906.3 | |
| 6.21 | 12.16 | 3.09 | 6.05 | -1.77 | 146.42 | 1.79 | 341.81 | 0.1004 | 1121.5 | 797.2 | |
| 1.90 | 5.09 | 0.94 | 2.53 | -2.69 | 146.04 | 1.40 | 342.78 | 0.0829 | 1133.4 | 860.3 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 2.79 | 146.04 | 1.41 | 351.95 | 0.1762 | 850.0 | 750.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 2.97 | 145.98 | 1.35 | 352.42 | 0.1791 | 718.0 | 563.4 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -2.42 | 145.80 | 1.16 | 346.34 | 0.0863 | 824.0 | 625.0 | |
| 0.00 | 1.03 | 0.00 | 0.51 | -3.44 | 145.71 | 1.07 | 344.14 | 0.0688 | 772.0 | 482.8 | |
| 0.52 | 2.41 | 0.26 | 1.20 | -1.26 | 145.41 | 0.78 | 352.54 | 0.1051 | 987.7 | 772.2 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -1.38 | 145.26 | 0.63 | 353.83 | 0.1027 | 793.0 | 656.8 | |
| 16.81 | 22.25 | 8.39 | 11.10 | -0.13 | 144.76 | 0.13 | 358.97 | 0.1240 | 1046.5 | 698.0 | |
| 0.78 | 2.59 | 0.39 | 1.29 | 0.47 | 143.99 | -0.64 | 4.80 | 0.1349 | 913.4 | 743.8 | |
| 0.00 | 2.93 | 0.00 | 1.46 | -0.87 | 143.42 | -1.21 | 10.82 | 0.1130 | 855.0 | 746.6 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -0.00 | 143.04 | -1.59 | 12.50 | 0.1292 | 819.0 | 654.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 1.29 | 143.01 | -1.62 | 10.85 | 0.1512 | 899.0 | 692.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
