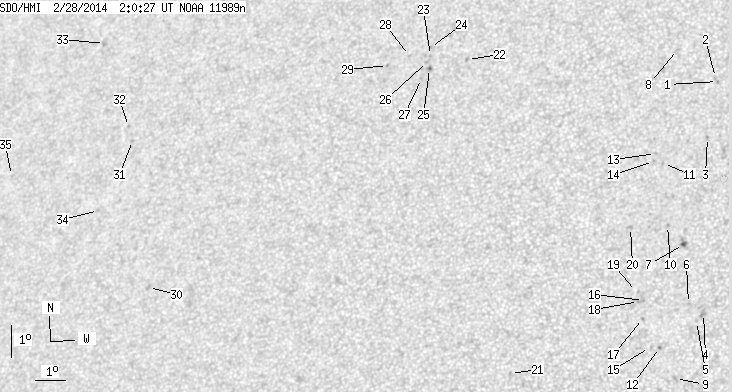

SDO HMI 2014-02-28 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.21 | 48.62 | 0.67 | 27.47 | 8.62 | 121.93 | -22.70 | 54.40 | 0.4646 | -520.5 | -383.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.47 | 11.57 | 129.23 | -15.41 | 39.34 | 0.4124 | -834.0 | -666.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 11.70 | 129.16 | -15.48 | 39.26 | 0.4147 | -667.0 | -519.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 9.83 | 129.00 | -15.63 | 42.61 | 0.3938 | -901.0 | -773.9 | |
| 0.00 | 3.97 | 0.00 | 2.08 | 4.44 | 129.06 | -15.57 | 53.60 | 0.3340 | -847.0 | -729.9 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 4.20 | 128.85 | -15.78 | 54.54 | 0.3345 | -739.0 | -570.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 4.76 | 128.59 | -16.04 | 53.67 | 0.3434 | -624.0 | -455.8 | |
| 0.69 | 3.62 | 0.37 | 1.93 | 6.56 | 128.39 | -16.25 | 50.01 | 0.3644 | -1039.2 | -796.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 12.63 | 127.90 | -16.74 | 40.06 | 0.4385 | -673.0 | -483.5 | |
| 0.00 | 2.24 | 0.00 | 1.17 | 2.50 | 128.23 | -16.41 | 59.88 | 0.3277 | -892.0 | -700.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 7.16 | 127.87 | -16.77 | 49.67 | 0.3771 | -796.0 | -711.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 9.08 | 127.66 | -16.98 | 46.34 | 0.4003 | -737.0 | -521.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 3.46 | 127.72 | -16.92 | 58.25 | 0.3431 | -924.0 | -794.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 9.40 | 127.39 | -17.24 | 46.21 | 0.4069 | -692.0 | -600.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 9.15 | 127.34 | -17.29 | 46.74 | 0.4048 | -654.0 | -573.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 3.47 | 127.41 | -17.23 | 58.70 | 0.3476 | -327.0 | -472.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 4.90 | 127.19 | -17.45 | 55.65 | 0.3634 | -904.0 | -735.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 4.36 | 127.17 | -17.47 | 56.94 | 0.3587 | -856.0 | -636.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 4.88 | 127.03 | -17.60 | 55.95 | 0.3653 | -780.0 | -721.9 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 5.18 | 126.96 | -17.67 | 55.37 | 0.3691 | -371.0 | -509.5 | |
| 0.00 | 1.98 | 0.00 | 1.07 | 7.15 | 126.71 | -17.93 | 51.61 | 0.3914 | -782.0 | -586.5 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 2.88 | 123.03 | -21.61 | 65.65 | 0.4054 | -751.0 | -639.7 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 12.63 | 121.08 | -23.55 | 49.82 | 0.5124 | -710.0 | -611.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 12.82 | 119.83 | -24.81 | 50.99 | 0.5286 | -723.0 | -643.8 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 13.08 | 119.80 | -24.84 | 50.65 | 0.5312 | -669.0 | -538.0 | |
| 0.52 | 2.07 | 0.30 | 1.20 | 12.41 | 119.83 | -24.80 | 51.61 | 0.5248 | -931.2 | -781.6 | |
| 0.00 | 1.81 | 0.00 | 1.05 | 12.64 | 119.74 | -24.89 | 51.37 | 0.5279 | -917.0 | -654.8 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 12.11 | 119.60 | -25.04 | 52.33 | 0.5249 | -713.0 | -553.7 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 12.86 | 119.11 | -25.52 | 51.73 | 0.5371 | -625.0 | -524.9 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 12.59 | 118.40 | -26.24 | 52.91 | 0.5430 | -662.0 | -552.1 | |
| 0.00 | 2.33 | 0.00 | 1.43 | 6.24 | 110.66 | -33.98 | 69.17 | 0.5967 | 677.0 | 576.5 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 10.84 | 109.60 | -35.04 | 62.98 | 0.6353 | 787.0 | 624.5 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 11.29 | 109.39 | -35.25 | 62.48 | 0.6405 | 689.0 | 552.0 | |
| 0.00 | 2.33 | 0.00 | 1.55 | 14.01 | 108.04 | -36.59 | 59.70 | 0.6722 | 755.0 | 576.0 | |
| 0.00 | 1.38 | 0.00 | 0.88 | 8.75 | 108.59 | -36.04 | 66.63 | 0.6358 | 291.0 | 383.8 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 10.11 | 105.09 | -39.54 | 66.73 | 0.6846 | 639.0 | 545.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
