SDO HMI 2014-02-28 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.30 | 425.13 | 47.42 | 214.37 | -1.56 | 151.04 | 8.59 | 305.87 | 0.1829 | -334.5 | -271.4 | |
|
previous
or next observation for the same group /

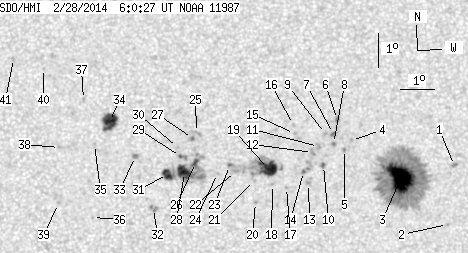

back to the solar disc SDO HMI 2014-02-28 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.42 | 0.00 | 1.23 | -1.33 | 155.09 | 12.65 | 294.43 | 0.2415 | 955.0 | 838.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -3.09 | 154.89 | 12.45 | 287.74 | 0.2270 | -576.0 | -406.4 | |
| 38.91 | 234.22 | 19.72 | 118.74 | -1.76 | 153.46 | 11.01 | 295.91 | 0.2132 | -1505.7 | -425.4 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -0.66 | 151.97 | 9.53 | 304.19 | 0.2010 | -872.0 | -672.1 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -0.93 | 151.76 | 9.32 | 303.66 | 0.1954 | -1094.0 | -913.5 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -0.04 | 151.55 | 9.11 | 307.93 | 0.2016 | -1061.0 | -890.4 | |
| 0.35 | 2.42 | 0.17 | 1.22 | -0.46 | 151.43 | 8.99 | 306.62 | 0.1955 | -1099.5 | -894.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -0.76 | 151.43 | 8.99 | 305.38 | 0.1924 | -1275.0 | -981.0 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -0.46 | 151.19 | 8.74 | 307.36 | 0.1922 | -944.0 | -812.3 | |
| 0.69 | 1.98 | 0.35 | 1.00 | -1.42 | 151.13 | 8.69 | 303.39 | 0.1816 | -1000.5 | -806.7 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -0.85 | 150.98 | 8.53 | 306.39 | 0.1852 | -997.0 | -807.4 | |
| 0.00 | 2.93 | 0.00 | 1.48 | -1.04 | 150.80 | 8.35 | 306.18 | 0.1808 | -942.0 | -847.3 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -1.96 | 150.68 | 8.24 | 302.20 | 0.1700 | -973.0 | -846.7 | |
| 0.43 | 7.59 | 0.22 | 3.82 | -1.61 | 150.53 | 8.09 | 304.44 | 0.1713 | -1136.2 | -817.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -0.48 | 150.26 | 7.81 | 310.49 | 0.1796 | -846.0 | -759.4 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -0.21 | 150.23 | 7.78 | 311.72 | 0.1823 | -683.0 | -542.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -2.09 | 150.03 | 7.58 | 303.77 | 0.1593 | -881.0 | -703.4 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -2.01 | 149.61 | 7.16 | 305.76 | 0.1542 | -898.0 | -744.4 | |
| 17.43 | 45.03 | 8.74 | 22.58 | -1.53 | 149.48 | 7.04 | 308.66 | 0.1576 | -1242.8 | -612.8 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -2.55 | 149.10 | 6.65 | 304.78 | 0.1415 | -1025.0 | -846.4 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -1.90 | 149.07 | 6.62 | 308.54 | 0.1480 | -831.0 | -654.3 | |
| 0.00 | 2.76 | 0.00 | 1.38 | -1.64 | 148.50 | 6.05 | 312.47 | 0.1435 | -376.0 | -392.6 | |
| 0.43 | 2.33 | 0.22 | 1.17 | -1.46 | 148.32 | 5.87 | 314.23 | 0.1434 | -852.8 | -570.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -1.70 | 147.96 | 5.51 | 314.82 | 0.1360 | -648.0 | -476.9 | |
| 0.00 | 3.54 | 0.00 | 1.77 | -0.48 | 147.33 | 4.89 | 323.87 | 0.1451 | 605.0 | 585.3 | |
| 2.07 | 56.68 | 1.03 | 28.30 | -1.38 | 147.30 | 4.86 | 320.07 | 0.1325 | 956.1 | 482.9 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -0.66 | 147.21 | 4.77 | 323.81 | 0.1414 | 1011.0 | 883.6 | |
| 11.82 | -26.00 | 5.90 | -26.00 | -1.68 | 146.98 | 4.53 | 320.56 | 0.1248 | 1180.8 | 999999 | |
| 0.60 | 4.23 | 0.30 | 2.11 | -1.21 | 146.86 | 4.41 | 323.60 | 0.1301 | 1054.1 | 790.3 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -0.94 | 146.77 | 4.32 | 325.33 | 0.1330 | 763.0 | 620.0 | |
| 6.56 | -26.00 | 3.27 | -26.00 | -1.75 | 146.47 | 4.02 | 323.55 | 0.1186 | 1177.5 | 999999 | |
| 0.00 | 3.97 | 0.00 | 1.98 | -2.76 | 146.06 | 3.61 | 320.90 | 0.1001 | 858.0 | 913.3 | |
| 0.00 | 2.76 | 0.00 | 1.38 | -1.21 | 145.52 | 3.07 | 332.82 | 0.1178 | 1085.0 | 879.6 | |
| 15.01 | 19.32 | 7.50 | 9.65 | -0.17 | 144.75 | 2.30 | 341.86 | 0.1294 | 1127.3 | 788.8 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -0.86 | 144.30 | 1.85 | 343.70 | 0.1157 | 890.0 | 712.8 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -3.04 | 144.24 | 1.79 | 336.75 | 0.0795 | 725.0 | 554.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 0.48 | 143.97 | 1.53 | 348.74 | 0.1371 | 1063.0 | 836.6 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -0.95 | 143.26 | 0.81 | 352.59 | 0.1104 | 968.0 | 830.4 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -2.62 | 143.23 | 0.78 | 350.33 | 0.0815 | 872.0 | 753.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 1.41 | 142.79 | 0.34 | 357.73 | 0.1508 | 679.0 | 535.2 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 1.71 | 141.90 | -0.55 | 3.54 | 0.1562 | 866.0 | 582.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
