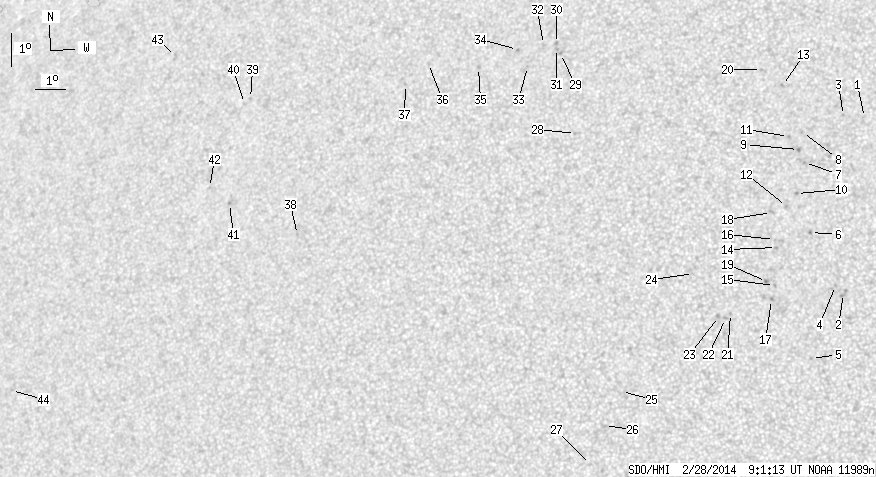

SDO HMI 2014-02-28 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 57.44 | 0.00 | 31.58 | 7.98 | 121.66 | -19.15 | 50.30 | 0.4166 | -481.0 | -394.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.50 | 9.98 | 129.82 | -10.99 | 32.63 | 0.3496 | -298.0 | -294.8 | |
| 0.00 | 3.80 | 0.00 | 1.96 | 4.59 | 129.31 | -11.50 | 44.53 | 0.2845 | -666.0 | -752.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 10.06 | 129.17 | -11.63 | 34.02 | 0.3565 | -832.0 | -671.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 4.84 | 129.06 | -11.74 | 44.54 | 0.2904 | -894.0 | -686.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 2.65 | 128.36 | -12.45 | 51.99 | 0.2745 | -889.0 | -670.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 6.48 | 128.26 | -12.54 | 42.73 | 0.3194 | -1007.0 | -853.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 8.64 | 128.02 | -12.79 | 39.04 | 0.3489 | -844.0 | -702.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 9.57 | 127.92 | -12.88 | 37.60 | 0.3618 | -716.0 | -484.6 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 9.04 | 127.82 | -12.99 | 38.74 | 0.3562 | -1103.0 | -863.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 7.69 | 127.80 | -13.00 | 41.30 | 0.3393 | -953.0 | -765.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 9.46 | 127.49 | -13.31 | 38.71 | 0.3647 | -716.0 | -601.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 7.30 | 127.50 | -13.30 | 42.72 | 0.3378 | -897.0 | -689.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 11.05 | 127.24 | -13.56 | 36.61 | 0.3876 | -715.0 | -671.2 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 6.05 | 127.23 | -13.57 | 45.94 | 0.3262 | -769.0 | -554.2 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 4.90 | 127.19 | -13.61 | 48.68 | 0.3135 | -969.0 | -767.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 6.30 | 127.16 | -13.64 | 45.55 | 0.3298 | -631.0 | -529.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 4.47 | 127.11 | -13.69 | 49.88 | 0.3100 | -931.0 | -853.8 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 7.13 | 127.05 | -13.76 | 44.04 | 0.3409 | -646.0 | -635.2 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 5.03 | 126.95 | -13.86 | 48.89 | 0.3180 | -938.0 | -792.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 11.57 | 126.56 | -14.24 | 37.15 | 0.4009 | -738.0 | -629.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 4.09 | 125.86 | -14.95 | 53.32 | 0.3222 | -781.0 | -593.2 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 3.95 | 125.71 | -15.10 | 53.96 | 0.3228 | -854.0 | -680.9 | |
| 0.00 | 2.16 | 0.00 | 1.13 | 4.01 | 125.49 | -15.31 | 54.19 | 0.3263 | -833.0 | -696.3 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 5.35 | 124.68 | -16.12 | 52.46 | 0.3501 | 11.0 | 2.6 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 1.87 | 122.50 | -18.30 | 64.26 | 0.3499 | -2.0 | -6.8 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 0.87 | 121.98 | -18.82 | 67.50 | 0.3508 | 9.0 | 5.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -0.28 | 121.54 | -19.26 | 71.02 | 0.3504 | -2.0 | -0.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 9.81 | 120.77 | -20.03 | 49.82 | 0.4437 | -657.0 | -506.1 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 12.34 | 120.10 | -20.70 | 46.59 | 0.4773 | -885.0 | -681.2 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 12.66 | 119.95 | -20.86 | 46.31 | 0.4823 | -820.0 | -708.2 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 12.50 | 119.96 | -20.84 | 46.54 | 0.4806 | -824.0 | -744.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 12.65 | 119.52 | -21.28 | 46.91 | 0.4869 | -671.0 | -574.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 11.98 | 119.06 | -21.75 | 48.57 | 0.4854 | -748.0 | -605.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 12.54 | 118.68 | -22.12 | 48.20 | 0.4952 | -710.0 | -607.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 12.03 | 117.44 | -23.36 | 50.53 | 0.5045 | -246.0 | -268.4 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 12.25 | 115.75 | -25.05 | 52.15 | 0.5261 | -735.0 | -559.1 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 11.63 | 115.04 | -25.76 | 53.88 | 0.5291 | -817.0 | -717.0 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 7.19 | 111.75 | -29.06 | 64.20 | 0.5373 | 622.0 | 554.8 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 11.53 | 109.69 | -31.11 | 59.05 | 0.5925 | 605.0 | 508.9 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 11.39 | 109.50 | -31.30 | 59.42 | 0.5939 | 783.0 | 610.1 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 8.31 | 109.29 | -31.51 | 64.28 | 0.5762 | 775.0 | 685.8 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 8.85 | 108.53 | -32.27 | 63.99 | 0.5892 | 657.0 | 514.8 | |
| 0.00 | 2.67 | 0.00 | 1.71 | 13.06 | 106.77 | -34.03 | 59.16 | 0.6372 | 561.0 | 505.9 | |
| 0.00 | 1.12 | 0.00 | 0.73 | 3.19 | 101.64 | -39.16 | 76.42 | 0.6510 | 549.0 | 423.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
