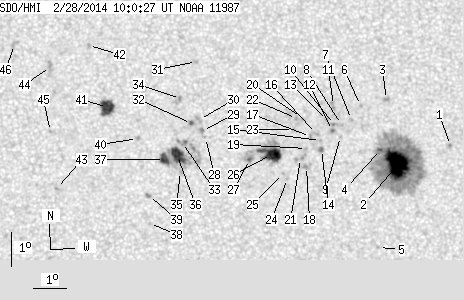

SDO HMI 2014-02-28 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.55 | 419.29 | 44.31 | 212.83 | -1.45 | 151.03 | 10.77 | 299.78 | 0.2151 | -346.9 | -244.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.71 | -1.12 | 155.15 | 14.88 | 291.60 | 0.2774 | 1100.0 | 901.2 | |
| 36.58 | 228.52 | 18.70 | 116.83 | -1.74 | 153.52 | 13.26 | 291.83 | 0.2481 | -1555.1 | -431.6 | |
| 0.00 | 3.19 | 0.00 | 1.64 | 0.19 | 153.19 | 12.92 | 299.31 | 0.2576 | -879.0 | -654.7 | |
| 1.38 | -2.00 | 0.70 | -2.00 | -1.30 | 153.00 | 12.74 | 294.32 | 0.2431 | -928.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -4.23 | 152.97 | 12.71 | 282.55 | 0.2258 | -876.0 | -687.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -0.01 | 152.39 | 12.13 | 300.23 | 0.2443 | -787.0 | -707.2 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -0.43 | 152.12 | 11.86 | 299.27 | 0.2367 | -921.0 | -773.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -0.59 | 151.82 | 11.56 | 299.34 | 0.2308 | -916.0 | -760.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -0.95 | 151.79 | 11.53 | 298.04 | 0.2274 | -839.0 | -637.6 | |
| 0.00 | 2.50 | 0.00 | 1.27 | -0.59 | 151.61 | 11.34 | 299.79 | 0.2277 | -1117.0 | -872.6 | |
| 0.00 | 3.54 | 0.00 | 1.80 | -0.03 | 151.58 | 11.31 | 301.97 | 0.2323 | -880.0 | -763.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -0.77 | 151.55 | 11.28 | 299.24 | 0.2252 | -1245.0 | -972.7 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -0.48 | 151.39 | 11.13 | 300.71 | 0.2256 | -928.0 | -617.8 | |
| 0.00 | 2.67 | 0.00 | 1.36 | -1.35 | 151.21 | 10.95 | 297.69 | 0.2155 | -1091.0 | -920.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -1.08 | 151.18 | 10.92 | 298.85 | 0.2172 | -916.0 | -715.7 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -0.87 | 151.06 | 10.80 | 299.95 | 0.2172 | -1014.0 | -837.3 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -0.97 | 150.88 | 10.62 | 300.01 | 0.2137 | -973.0 | -782.3 | |
| 0.00 | 3.54 | 0.00 | 1.79 | -1.87 | 150.76 | 10.50 | 296.51 | 0.2045 | -981.0 | -765.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -1.33 | 150.76 | 10.50 | 298.81 | 0.2088 | -920.0 | -733.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -0.41 | 150.61 | 10.35 | 302.92 | 0.2149 | -374.0 | -472.3 | |
| 0.00 | 5.26 | 0.00 | 2.66 | -1.63 | 150.58 | 10.32 | 297.96 | 0.2036 | -675.0 | -807.3 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -0.44 | 150.46 | 10.19 | 303.18 | 0.2124 | -901.0 | -752.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -0.77 | 150.37 | 10.10 | 302.10 | 0.2080 | -760.0 | -582.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -2.24 | 150.19 | 9.93 | 296.17 | 0.1928 | -902.0 | -695.6 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -2.09 | 150.07 | 9.81 | 297.14 | 0.1922 | -921.0 | -786.1 | |
| 16.99 | 34.16 | 8.58 | 17.24 | -1.53 | 149.71 | 9.44 | 300.63 | 0.1915 | -1249.2 | -586.6 | |
| 0.60 | 6.99 | 0.30 | 3.52 | -1.69 | 149.04 | 8.78 | 301.78 | 0.1803 | -1088.3 | -696.3 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -1.06 | 147.72 | 7.46 | 309.22 | 0.1683 | 691.0 | 423.1 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -0.85 | 147.63 | 7.37 | 310.51 | 0.1695 | 846.0 | 698.4 | |
| 0.00 | 3.28 | 0.00 | 1.65 | -0.52 | 147.54 | 7.28 | 312.30 | 0.1721 | 618.0 | 543.6 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 1.21 | 147.46 | 7.19 | 319.26 | 0.1927 | 824.0 | 703.6 | |
| 0.78 | 1.90 | 0.39 | 0.95 | -0.65 | 147.30 | 7.04 | 312.73 | 0.1676 | 1031.3 | 872.2 | |
| 0.00 | 5.35 | 0.00 | 2.68 | -1.22 | 147.03 | 6.77 | 311.25 | 0.1575 | 709.0 | 787.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 0.10 | 146.97 | 6.71 | 317.19 | 0.1728 | 860.0 | 804.1 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -2.08 | 146.98 | 6.71 | 307.10 | 0.1472 | 96.0 | 164.2 | |
| 12.85 | 53.14 | 6.44 | 26.63 | -1.61 | 146.89 | 6.62 | 309.97 | 0.1511 | 1151.0 | 521.7 | |
| 5.69 | -36.00 | 2.85 | -36.00 | -1.73 | 146.50 | 6.23 | 311.06 | 0.1446 | 1177.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -3.64 | 146.06 | 5.79 | 301.37 | 0.1185 | 753.0 | 585.6 | |
| 0.00 | 2.42 | 0.00 | 1.21 | -2.81 | 146.02 | 5.76 | 307.15 | 0.1263 | 1132.0 | 909.2 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -1.11 | 145.69 | 5.43 | 318.12 | 0.1423 | 943.0 | 803.5 | |
| 12.68 | 16.48 | 6.35 | 8.25 | -0.20 | 144.80 | 4.53 | 326.96 | 0.1457 | 1127.9 | 773.5 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 1.66 | 144.23 | 3.97 | 335.75 | 0.1694 | 860.0 | 755.5 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -2.62 | 143.28 | 3.02 | 326.57 | 0.0959 | 980.0 | 752.6 | |
| 0.00 | 4.74 | 0.00 | 2.38 | 1.02 | 143.10 | 2.84 | 340.87 | 0.1519 | 916.0 | 735.1 | |
| 0.00 | 0.69 | 0.00 | 0.34 | -0.93 | 143.10 | 2.84 | 335.61 | 0.1204 | 942.0 | 791.4 | |
| 0.00 | 4.66 | 0.00 | 2.34 | 1.68 | 142.03 | 1.77 | 348.67 | 0.1581 | 798.0 | 684.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
