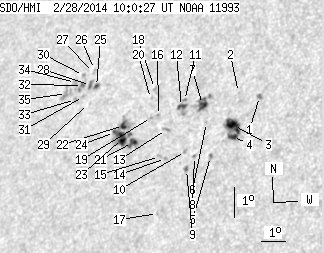

SDO HMI 2014-02-28 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.73 | 137.18 | 30.78 | 97.92 | 15.86 | 100.07 | -40.19 | 59.61 | 0.7211 | -0.7 | 75.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.76 | 0.00 | 1.86 | 16.27 | 104.14 | -36.13 | 56.46 | 0.6813 | -792.0 | -667.5 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 16.47 | 103.28 | -36.98 | 56.82 | 0.6916 | -591.0 | -524.7 | |
| 11.56 | 23.72 | 7.83 | 16.06 | 15.41 | 103.32 | -36.95 | 58.14 | 0.6846 | -706.6 | -167.6 | |
| 3.62 | -3.00 | 2.45 | -3.00 | 15.05 | 103.35 | -36.91 | 58.57 | 0.6820 | -645.6 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.76 | 14.47 | 102.62 | -37.65 | 59.81 | 0.6866 | -679.0 | -501.4 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 15.59 | 102.23 | -38.04 | 58.64 | 0.6974 | 227.0 | 205.6 | |
| 6.47 | 14.75 | 4.50 | 10.26 | 16.19 | 101.93 | -38.33 | 58.07 | 0.7041 | -718.3 | -457.3 | |
| 0.00 | 1.38 | 0.00 | 0.95 | 14.53 | 101.98 | -38.28 | 60.16 | 0.6938 | 428.0 | 390.4 | |
| 0.60 | 2.24 | 0.41 | 1.54 | 14.13 | 101.75 | -38.52 | 60.81 | 0.6941 | -616.7 | -442.6 | |
| 0.00 | 1.90 | 0.00 | 1.31 | 14.72 | 101.59 | -38.68 | 60.16 | 0.6991 | 52.0 | -72.9 | |
| 0.00 | 1.64 | 0.00 | 1.15 | 16.38 | 101.17 | -39.09 | 58.33 | 0.7131 | -376.0 | -323.2 | |
| 2.59 | 7.85 | 1.82 | 5.52 | 16.20 | 101.10 | -39.17 | 58.61 | 0.7128 | -681.3 | -210.1 | |
| 0.00 | 2.93 | 0.00 | 2.07 | 15.50 | 100.66 | -39.60 | 59.76 | 0.7134 | -713.0 | -448.1 | |
| 0.00 | 1.47 | 0.00 | 1.02 | 14.56 | 100.83 | -39.44 | 60.84 | 0.7064 | 481.0 | 356.1 | |
| 0.00 | 1.98 | 0.00 | 1.39 | 14.64 | 100.57 | -39.69 | 60.89 | 0.7097 | 476.0 | 425.0 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 15.98 | 100.22 | -40.04 | 59.42 | 0.7207 | -142.0 | -279.9 | |
| 0.00 | 0.43 | 0.00 | 0.30 | 12.82 | 100.86 | -39.40 | 63.06 | 0.6967 | 521.0 | 493.2 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 16.88 | 99.83 | -40.43 | 58.55 | 0.7297 | 625.0 | 479.8 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 15.94 | 99.95 | -40.31 | 59.64 | 0.7233 | -461.0 | -287.7 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 16.57 | 99.75 | -40.51 | 58.99 | 0.7288 | 482.0 | 501.2 | |
| 4.31 | 40.03 | 3.09 | 28.96 | 15.19 | 99.35 | -40.91 | 60.92 | 0.7255 | 846.6 | 185.3 | |
| 2.93 | -21.00 | 2.13 | -21.00 | 15.78 | 98.84 | -41.42 | 60.49 | 0.7339 | 596.7 | 999999 | |
| 7.51 | -21.00 | 5.43 | -21.00 | 15.36 | 98.90 | -41.36 | 60.98 | 0.7310 | 569.2 | 999999 | |
| 0.78 | -21.00 | 0.57 | -21.00 | 15.59 | 98.52 | -41.75 | 60.92 | 0.7362 | -680.3 | 999999 | |
| 1.29 | 6.30 | 0.98 | 4.76 | 17.17 | 97.33 | -42.93 | 59.68 | 0.7562 | 805.3 | 644.5 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 17.74 | 97.08 | -43.18 | 59.14 | 0.7616 | 506.0 | 445.0 | |
| 0.00 | 1.21 | 0.00 | 0.92 | 17.65 | 97.06 | -43.20 | 59.26 | 0.7612 | 534.0 | 456.3 | |
| 1.29 | -25.00 | 0.98 | -25.00 | 17.23 | 97.06 | -43.20 | 59.76 | 0.7591 | 687.4 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 16.64 | 97.14 | -43.12 | 60.42 | 0.7554 | 521.0 | 531.7 | |
| 0.00 | 1.38 | 0.00 | 1.06 | 17.59 | 96.65 | -43.61 | 59.56 | 0.7649 | 495.0 | 433.9 | |
| 0.00 | 1.38 | 0.00 | 1.05 | 16.89 | 96.86 | -43.40 | 60.28 | 0.7594 | 668.0 | 575.1 | |
| 0.78 | 2.07 | 0.59 | 1.58 | 17.26 | 96.71 | -43.56 | 59.92 | 0.7627 | 725.9 | 676.5 | |
| 0.00 | 1.64 | 0.00 | 1.25 | 16.82 | 96.53 | -43.73 | 60.53 | 0.7623 | 645.0 | 552.0 | |
| 0.00 | 3.28 | 0.00 | 2.52 | 17.39 | 96.37 | -43.90 | 59.96 | 0.7667 | 491.0 | 422.6 | |
| 0.00 | 8.54 | 0.00 | 6.58 | 17.06 | 96.07 | -44.19 | 60.50 | 0.7679 | 541.0 | 403.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
