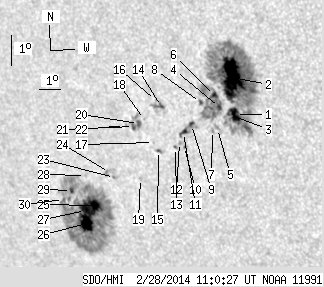

SDO HMI 2014-02-28 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.26 | 652.48 | 71.52 | 485.54 | -24.39 | 92.60 | -47.11 | 116.47 | 0.7455 | 155.2 | -20.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.92 | 280.09 | 6.89 | 192.65 | -23.70 | 96.63 | -43.08 | 116.73 | 0.7026 | 796.5 | 367.9 | |
| 45.20 | -1.00 | 31.08 | -1.00 | -22.56 | 96.91 | -42.80 | 115.23 | 0.6960 | 1007.1 | 999999 | |
| 0.60 | -1.00 | 0.42 | -1.00 | -23.67 | 96.33 | -43.38 | 116.59 | 0.7059 | 446.4 | 999999 | |
| 2.24 | 54.17 | 1.57 | 38.08 | -23.43 | 96.03 | -43.68 | 116.16 | 0.7084 | 624.2 | 30.2 | |
| 0.00 | 3.45 | 0.00 | 2.43 | -24.06 | 95.67 | -44.04 | 116.91 | 0.7143 | 442.0 | 266.3 | |
| 2.67 | -4.00 | 1.87 | -4.00 | -23.04 | 95.96 | -43.75 | 115.61 | 0.7080 | 631.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.34 | -24.10 | 95.43 | -44.29 | 116.89 | 0.7170 | 106.0 | 108.7 | |
| 1.04 | -4.00 | 0.73 | -4.00 | -23.20 | 95.27 | -44.45 | 115.62 | 0.7162 | 239.6 | 999999 | |
| 1.47 | 11.73 | 1.05 | 8.44 | -23.84 | 94.58 | -45.14 | 116.28 | 0.7254 | 210.6 | -491.1 | |
| 0.35 | 1.29 | 0.25 | 0.94 | -24.48 | 93.96 | -45.76 | 116.95 | 0.7338 | -655.8 | -571.1 | |
| 2.59 | -9.00 | 1.87 | -9.00 | -24.05 | 94.11 | -45.61 | 116.43 | 0.7310 | -764.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.88 | -24.34 | 93.79 | -45.93 | 116.72 | 0.7352 | -694.0 | -551.5 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -24.47 | 93.53 | -46.18 | 116.82 | 0.7382 | -614.0 | -491.1 | |
| 1.04 | 6.73 | 0.75 | 4.91 | -23.18 | 93.48 | -46.24 | 115.08 | 0.7354 | 631.1 | 300.0 | |
| 0.69 | 2.24 | 0.51 | 1.66 | -24.50 | 92.71 | -47.00 | 116.62 | 0.7468 | -700.2 | -577.1 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -22.97 | 93.29 | -46.43 | 114.76 | 0.7369 | 431.0 | 354.0 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -24.23 | 92.60 | -47.11 | 116.25 | 0.7473 | -405.0 | -387.4 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -23.50 | 92.52 | -47.19 | 115.26 | 0.7463 | -701.0 | -615.9 | |
| 0.00 | 1.29 | 0.00 | 0.99 | -25.27 | 91.43 | -48.28 | 117.29 | 0.7618 | -738.0 | -596.9 | |
| 1.73 | 12.08 | 1.29 | 9.02 | -23.60 | 92.19 | -47.53 | 115.31 | 0.7500 | -804.3 | -404.3 | |
| 1.47 | -20.00 | 1.10 | -20.00 | -23.67 | 91.91 | -47.80 | 115.33 | 0.7530 | -707.6 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -23.60 | 91.51 | -48.21 | 115.14 | 0.7570 | 281.0 | 267.0 | |
| 0.00 | 1.38 | 0.00 | 1.07 | -25.13 | 90.21 | -49.51 | 116.79 | 0.7736 | -515.0 | -490.2 | |
| 0.00 | 6.04 | 0.00 | 4.71 | -24.96 | 90.05 | -49.67 | 116.53 | 0.7748 | -380.0 | -548.9 | |
| 7.68 | 264.04 | 6.16 | 214.79 | -25.89 | 88.73 | -50.98 | 117.39 | 0.7895 | -1033.4 | -293.4 | |
| 13.54 | -25.00 | 11.06 | -25.00 | -26.40 | 87.99 | -51.72 | 117.85 | 0.7976 | -797.9 | 999999 | |
| 3.19 | -25.00 | 2.59 | -25.00 | -26.00 | 88.19 | -51.53 | 117.40 | 0.7949 | -866.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.83 | -24.94 | 88.82 | -50.89 | 116.23 | 0.7866 | -668.0 | -537.7 | |
| 2.24 | -25.00 | 1.83 | -25.00 | -25.32 | 87.85 | -51.86 | 116.50 | 0.7966 | -728.3 | 999999 | |
| 0.60 | -25.00 | 0.50 | -25.00 | -25.56 | 87.28 | -52.44 | 116.66 | 0.8025 | -253.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
