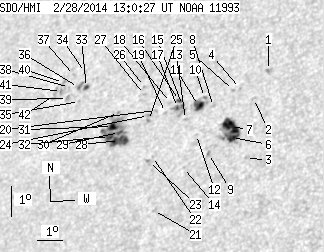

SDO HMI 2014-02-28 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.89 | 160.60 | 36.87 | 111.29 | 15.85 | 100.41 | -38.21 | 58.37 | 0.7003 | -27.5 | 69.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.76 | 0.00 | 1.83 | 17.13 | 104.52 | -34.10 | 53.85 | 0.6658 | -711.0 | -589.8 | |
| 0.00 | 1.72 | 0.00 | 1.14 | 16.26 | 104.13 | -34.49 | 55.26 | 0.6638 | -730.0 | -608.3 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 14.34 | 104.20 | -34.42 | 57.74 | 0.6500 | -249.0 | -270.4 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 16.62 | 103.57 | -35.05 | 55.22 | 0.6723 | -531.0 | -480.3 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 16.58 | 103.31 | -35.31 | 55.47 | 0.6747 | -444.0 | -401.4 | |
| 6.81 | 34.24 | 4.49 | 22.63 | 15.05 | 103.54 | -35.08 | 57.27 | 0.6621 | -718.5 | -293.5 | |
| 15.09 | -6.00 | 9.99 | -6.00 | 15.41 | 103.43 | -35.19 | 56.88 | 0.6656 | -676.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 16.12 | 102.64 | -35.97 | 56.55 | 0.6787 | 49.0 | -66.3 | |
| 0.00 | 1.81 | 0.00 | 1.20 | 14.60 | 102.75 | -35.86 | 58.43 | 0.6678 | -570.0 | -426.5 | |
| 0.00 | 1.38 | 0.00 | 0.94 | 16.44 | 102.23 | -36.39 | 56.44 | 0.6852 | -614.0 | -543.3 | |
| 5.95 | 10.87 | 4.04 | 7.37 | 16.20 | 102.05 | -36.57 | 56.87 | 0.6855 | -754.5 | -486.0 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 15.26 | 102.17 | -36.45 | 57.99 | 0.6783 | -406.0 | -302.6 | |
| 0.00 | 1.38 | 0.00 | 0.94 | 15.78 | 101.64 | -36.98 | 57.69 | 0.6873 | 506.0 | 382.3 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 14.23 | 101.87 | -36.75 | 59.53 | 0.6752 | -519.0 | -413.8 | |
| 0.60 | 12.33 | 0.41 | 8.45 | 16.25 | 101.42 | -37.20 | 57.25 | 0.6925 | -708.1 | -219.2 | |
| 1.21 | -15.00 | 0.83 | -15.00 | 16.42 | 101.26 | -37.36 | 57.14 | 0.6952 | -444.9 | 999999 | |
| 1.03 | -15.00 | 0.71 | -15.00 | 16.20 | 101.23 | -37.38 | 57.44 | 0.6941 | -548.6 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.13 | 16.38 | 100.92 | -37.70 | 57.42 | 0.6986 | 205.0 | 109.1 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 16.07 | 100.79 | -37.83 | 57.89 | 0.6980 | -480.0 | -377.1 | |
| 0.00 | 1.47 | 0.00 | 1.02 | 16.17 | 100.38 | -38.24 | 58.05 | 0.7030 | -415.0 | -296.6 | |
| 0.00 | 1.55 | 0.00 | 1.04 | 12.94 | 100.95 | -37.67 | 61.83 | 0.6779 | 540.0 | 498.1 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 14.68 | 100.58 | -38.04 | 59.80 | 0.6920 | 568.0 | 430.1 | |
| 0.00 | 2.24 | 0.00 | 1.53 | 14.53 | 100.46 | -38.16 | 60.07 | 0.6925 | 598.0 | 470.3 | |
| 0.00 | 1.55 | 0.00 | 1.08 | 16.03 | 100.13 | -38.49 | 58.38 | 0.7047 | -210.0 | -139.1 | |
| 0.00 | 1.47 | 0.00 | 1.02 | 15.87 | 100.17 | -38.45 | 58.56 | 0.7034 | -521.0 | -355.2 | |
| 0.00 | 1.29 | 0.00 | 0.91 | 17.00 | 99.74 | -38.88 | 57.44 | 0.7145 | 495.0 | 384.8 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 16.73 | 99.81 | -38.81 | 57.72 | 0.7123 | 230.0 | 221.4 | |
| 11.38 | 51.40 | 7.99 | 36.29 | 15.31 | 99.14 | -39.48 | 59.91 | 0.7110 | 834.2 | 281.2 | |
| 1.55 | -28.00 | 1.09 | -28.00 | 15.57 | 99.08 | -39.54 | 59.62 | 0.7131 | 729.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 16.23 | 98.89 | -39.73 | 58.93 | 0.7189 | -407.0 | -372.2 | |
| 3.97 | -28.00 | 2.81 | -28.00 | 15.79 | 98.75 | -39.87 | 59.55 | 0.7179 | 621.7 | 999999 | |
| 4.31 | -28.00 | 3.05 | -28.00 | 15.48 | 98.70 | -39.92 | 59.98 | 0.7166 | 339.6 | 999999 | |
| 1.47 | 2.59 | 1.08 | 1.90 | 17.17 | 97.33 | -41.28 | 58.73 | 0.7399 | 750.9 | 689.1 | |
| 0.00 | 1.38 | 0.00 | 1.02 | 17.67 | 97.15 | -41.46 | 58.23 | 0.7444 | 460.0 | 402.7 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 16.74 | 97.16 | -41.46 | 59.36 | 0.7393 | 611.0 | 537.2 | |
| 0.52 | 3.54 | 0.38 | 2.61 | 17.20 | 96.99 | -41.63 | 58.89 | 0.7434 | 837.5 | 684.4 | |
| 0.00 | 1.47 | 0.00 | 1.09 | 17.62 | 96.71 | -41.91 | 58.57 | 0.7485 | 424.0 | 358.2 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 17.24 | 96.61 | -42.01 | 59.08 | 0.7475 | 684.0 | 625.9 | |
| 0.00 | 1.72 | 0.00 | 1.28 | 16.88 | 96.62 | -42.00 | 59.50 | 0.7454 | 614.0 | 544.9 | |
| 0.00 | 2.16 | 0.00 | 1.61 | 17.43 | 96.30 | -42.32 | 59.03 | 0.7515 | 438.0 | 440.1 | |
| 0.00 | 1.90 | 0.00 | 1.42 | 17.13 | 96.30 | -42.32 | 59.38 | 0.7500 | 620.0 | 540.8 | |
| 0.00 | 5.52 | 0.00 | 4.13 | 17.06 | 96.07 | -42.55 | 59.60 | 0.7519 | 447.0 | 385.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
