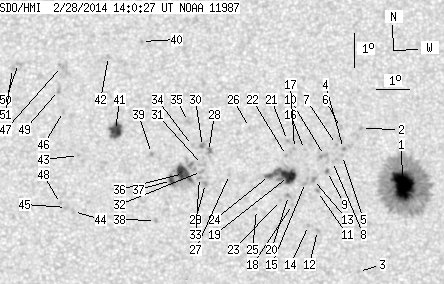

SDO HMI 2014-02-28 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.01 | 409.59 | 39.31 | 209.73 | -1.43 | 151.10 | 13.03 | 294.88 | 0.2488 | -312.2 | -231.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.96 | 235.23 | 18.56 | 121.48 | -1.65 | 153.53 | 15.46 | 289.07 | 0.2832 | -1499.2 | -416.7 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -0.02 | 152.26 | 14.20 | 296.29 | 0.2748 | -784.0 | -635.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -4.28 | 152.21 | 14.14 | 280.93 | 0.2492 | -647.0 | -444.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -0.63 | 151.71 | 13.65 | 295.16 | 0.2618 | -1069.0 | -938.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -0.84 | 151.68 | 13.61 | 294.48 | 0.2598 | -1000.0 | -722.3 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -0.01 | 151.62 | 13.55 | 297.44 | 0.2653 | -757.0 | -664.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -0.52 | 151.50 | 13.43 | 295.92 | 0.2594 | -987.0 | -824.6 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -1.03 | 151.38 | 13.31 | 294.33 | 0.2538 | -866.0 | -699.2 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -1.33 | 151.23 | 13.16 | 293.49 | 0.2493 | -1018.0 | -837.2 | |
| 0.00 | 3.54 | 0.00 | 1.81 | -0.86 | 151.13 | 13.07 | 295.37 | 0.2513 | -1024.0 | -840.1 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -1.94 | 150.93 | 12.86 | 291.71 | 0.2405 | -868.0 | -801.4 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -3.10 | 150.94 | 12.87 | 287.08 | 0.2337 | -936.0 | -713.6 | |
| 0.00 | 2.93 | 0.00 | 1.50 | -1.58 | 150.80 | 12.73 | 293.27 | 0.2409 | -1019.0 | -841.4 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -2.96 | 150.66 | 12.59 | 288.04 | 0.2300 | -903.0 | -664.9 | |
| 0.00 | 3.10 | 0.00 | 1.58 | -1.68 | 150.56 | 12.49 | 293.32 | 0.2365 | -847.0 | -784.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -0.69 | 150.53 | 12.46 | 297.09 | 0.2434 | -778.0 | -629.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -0.67 | 150.22 | 12.15 | 297.77 | 0.2390 | -892.0 | -747.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -2.34 | 150.17 | 12.10 | 291.34 | 0.2259 | -881.0 | -739.0 | |
| 12.59 | 34.58 | 6.41 | 17.58 | -1.51 | 150.04 | 11.97 | 294.91 | 0.2297 | -1264.3 | -764.4 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -2.08 | 150.04 | 11.98 | 292.64 | 0.2257 | -1091.0 | -867.9 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -0.44 | 150.01 | 11.94 | 299.06 | 0.2378 | -917.0 | -753.4 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -0.89 | 149.98 | 11.91 | 297.45 | 0.2336 | -1003.0 | -779.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -2.23 | 149.80 | 11.73 | 292.43 | 0.2209 | -852.0 | -681.5 | |
| 2.24 | -19.00 | 1.14 | -19.00 | -1.50 | 149.47 | 11.40 | 296.12 | 0.2210 | -1065.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -2.52 | 149.08 | 11.01 | 292.56 | 0.2075 | -711.0 | -511.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -0.08 | 148.86 | 10.79 | 303.04 | 0.2243 | 593.0 | 477.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -1.49 | 148.26 | 10.19 | 298.85 | 0.2028 | -811.0 | -578.6 | |
| 0.00 | 3.45 | 0.00 | 1.74 | -0.82 | 147.62 | 9.55 | 303.38 | 0.1996 | 630.0 | 651.8 | |
| 0.00 | 2.93 | 0.00 | 1.48 | -1.78 | 147.53 | 9.46 | 299.44 | 0.1896 | -188.0 | -158.8 | |
| 0.00 | 2.41 | 0.00 | 1.22 | -0.68 | 147.44 | 9.37 | 304.50 | 0.1985 | 999.0 | 810.1 | |
| 0.00 | 3.45 | 0.00 | 1.74 | -1.21 | 147.44 | 9.37 | 302.21 | 0.1933 | 415.0 | 427.0 | |
| 0.00 | 2.41 | 0.00 | 1.22 | -1.42 | 147.41 | 9.34 | 301.37 | 0.1910 | 805.0 | 658.7 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -1.60 | 147.35 | 9.28 | 300.73 | 0.1885 | 765.0 | 597.2 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -0.65 | 147.14 | 9.07 | 305.50 | 0.1945 | 772.0 | 589.9 | |
| 0.00 | 3.97 | 0.00 | 2.01 | 0.06 | 147.02 | 8.95 | 308.75 | 0.2004 | 908.0 | 676.1 | |
| 11.99 | 42.08 | 6.04 | 21.19 | -1.49 | 146.87 | 8.80 | 302.63 | 0.1825 | 1109.0 | 658.6 | |
| 3.45 | -36.00 | 1.74 | -36.00 | -1.71 | 146.51 | 8.44 | 302.73 | 0.1753 | 1132.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -2.91 | 146.04 | 7.97 | 298.00 | 0.1575 | 1059.0 | 778.6 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -0.91 | 145.91 | 7.84 | 308.45 | 0.1750 | 905.0 | 759.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 2.44 | 145.62 | 7.55 | 321.72 | 0.2129 | 848.0 | 658.8 | |
| 10.78 | 14.66 | 5.42 | 7.37 | -0.24 | 144.83 | 6.76 | 315.60 | 0.1691 | 1102.3 | 785.7 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 1.98 | 144.63 | 6.56 | 324.25 | 0.1963 | 756.0 | 602.9 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -1.00 | 143.73 | 5.66 | 317.43 | 0.1464 | 968.0 | 777.6 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -2.67 | 143.58 | 5.51 | 309.22 | 0.1244 | 922.0 | 705.4 | |
| 0.00 | 2.07 | 0.00 | 1.03 | -2.56 | 143.37 | 5.30 | 311.05 | 0.1230 | 949.0 | 751.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 0.31 | 143.28 | 5.21 | 325.08 | 0.1594 | 843.0 | 765.9 | |
| 0.00 | 2.67 | 0.00 | 1.35 | 1.66 | 143.23 | 5.16 | 329.66 | 0.1786 | 800.0 | 732.9 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -2.44 | 143.19 | 5.12 | 312.75 | 0.1221 | 851.0 | 620.0 | |
| 0.00 | 2.50 | 0.00 | 1.26 | 0.94 | 143.13 | 5.06 | 327.96 | 0.1671 | 868.0 | 743.8 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 1.74 | 141.94 | 3.88 | 336.46 | 0.1699 | 753.0 | 698.5 | |
| 0.00 | 2.24 | 0.00 | 1.13 | 1.59 | 141.77 | 3.70 | 337.09 | 0.1663 | 618.0 | 562.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
