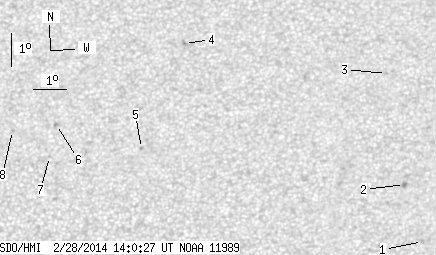

SDO HMI 2014-02-28 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.43 | 0.00 | 6.94 | 7.84 | 136.83 | -1.24 | 3.22 | 0.2743 | 204.9 | 126.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-28 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.01 | 4.79 | 142.80 | 4.73 | 338.39 | 0.2240 | -826.0 | -564.0 | |
| 0.00 | 2.67 | 0.00 | 1.37 | 6.53 | 142.27 | 4.20 | 342.91 | 0.2490 | -1047.0 | -843.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 9.94 | 141.77 | 3.70 | 347.81 | 0.3026 | -650.0 | -538.3 | |
| 0.00 | 2.07 | 0.00 | 1.08 | 10.88 | 135.67 | -2.40 | 7.54 | 0.3142 | 952.0 | 777.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 7.63 | 134.40 | -3.67 | 13.93 | 0.2647 | 847.0 | 687.2 | |
| 0.00 | 2.67 | 0.00 | 1.38 | 8.40 | 131.83 | -6.23 | 21.83 | 0.2902 | 859.0 | 726.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 7.42 | 131.64 | -6.43 | 23.82 | 0.2763 | 741.0 | 476.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 8.24 | 130.51 | -7.56 | 26.16 | 0.2967 | 763.0 | 646.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
