SDO HMI 2014-02-28 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.58 | 220.01 | 51.70 | 143.90 | 15.99 | 100.47 | -33.74 | 54.93 | 0.6537 | -30.9 | 90.7 | |
|
previous
or next observation for the same group /

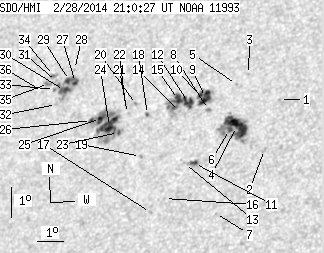

back to the solar disc SDO HMI 2014-02-28 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.75 | 16.11 | 105.10 | -29.11 | 50.83 | 0.6052 | -743.0 | -548.8 | |
| 0.00 | 2.07 | 0.00 | 1.27 | 14.53 | 104.81 | -29.40 | 53.25 | 0.5953 | -729.0 | -580.8 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 17.01 | 103.84 | -30.37 | 50.84 | 0.6259 | -511.0 | -428.3 | |
| 21.72 | 46.46 | 13.60 | 29.11 | 15.34 | 103.69 | -30.52 | 53.16 | 0.6142 | -855.1 | -441.6 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 16.71 | 103.46 | -30.75 | 51.56 | 0.6275 | -644.0 | -538.7 | |
| 1.98 | -4.00 | 1.24 | -4.00 | 15.26 | 103.45 | -30.76 | 53.48 | 0.6162 | -774.5 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 12.60 | 103.35 | -30.86 | 57.27 | 0.5974 | 621.0 | 553.3 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 15.96 | 102.58 | -31.63 | 53.31 | 0.6311 | 317.0 | 13.4 | |
| 8.45 | 18.28 | 5.41 | 11.71 | 16.36 | 102.40 | -31.81 | 52.94 | 0.6361 | -825.8 | -377.0 | |
| 1.55 | -9.00 | 1.00 | -9.00 | 16.44 | 102.20 | -32.01 | 53.01 | 0.6388 | -493.4 | 999999 | |
| 1.98 | 4.40 | 1.25 | 2.77 | 14.25 | 102.36 | -31.86 | 55.80 | 0.6208 | -763.8 | -516.0 | |
| 6.81 | 32.33 | 4.39 | 20.91 | 16.25 | 101.80 | -32.42 | 53.60 | 0.6417 | -798.8 | -180.5 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 14.28 | 101.99 | -32.22 | 56.06 | 0.6251 | -129.0 | -243.0 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 15.98 | 101.51 | -32.70 | 54.19 | 0.6427 | 248.0 | 241.5 | |
| 5.34 | -12.00 | 3.46 | -12.00 | 16.37 | 101.40 | -32.81 | 53.77 | 0.6468 | -677.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 13.21 | 101.43 | -32.78 | 57.98 | 0.6240 | 612.0 | 527.7 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 12.80 | 100.98 | -33.23 | 58.90 | 0.6264 | 640.0 | 518.5 | |
| 0.60 | 1.64 | 0.39 | 1.07 | 15.97 | 100.33 | -33.88 | 55.15 | 0.6554 | -519.3 | -392.6 | |
| 0.00 | 1.47 | 0.00 | 0.95 | 14.62 | 100.32 | -33.89 | 56.93 | 0.6462 | 748.0 | 634.6 | |
| 0.00 | 1.38 | 0.00 | 0.91 | 16.32 | 99.85 | -34.36 | 55.06 | 0.6631 | 628.0 | 572.9 | |
| 0.00 | 0.34 | 0.00 | 0.23 | 16.06 | 99.56 | -34.65 | 55.62 | 0.6643 | 507.0 | 570.5 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 16.32 | 99.44 | -34.78 | 55.38 | 0.6675 | 749.0 | 625.6 | |
| 0.95 | 63.96 | 0.63 | 42.56 | 15.46 | 99.34 | -34.87 | 56.56 | 0.6627 | 934.8 | 293.9 | |
| 15.78 | -23.00 | 10.48 | -23.00 | 15.69 | 98.96 | -35.25 | 56.56 | 0.6683 | 857.9 | 999999 | |
| 2.16 | -23.00 | 1.44 | -23.00 | 15.97 | 98.56 | -35.65 | 56.48 | 0.6745 | 692.8 | 999999 | |
| 1.47 | -23.00 | 0.98 | -23.00 | 15.94 | 98.22 | -35.99 | 56.77 | 0.6778 | -354.2 | 999999 | |
| 2.16 | 24.48 | 1.48 | 16.88 | 17.23 | 97.32 | -36.89 | 55.78 | 0.6957 | 871.8 | 689.8 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 17.67 | 97.18 | -37.03 | 55.35 | 0.7000 | 511.0 | 393.1 | |
| 3.97 | -27.00 | 2.74 | -27.00 | 17.32 | 97.06 | -37.15 | 55.86 | 0.6989 | 789.2 | 999999 | |
| 4.66 | -27.00 | 3.21 | -27.00 | 17.01 | 96.94 | -37.27 | 56.33 | 0.6982 | 917.6 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.56 | 17.33 | 96.55 | -37.66 | 56.20 | 0.7042 | 456.0 | 493.4 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 16.57 | 96.73 | -37.48 | 57.02 | 0.6976 | 622.0 | 494.1 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 17.07 | 96.53 | -37.68 | 56.53 | 0.7028 | 632.0 | 576.3 | |
| 0.00 | 3.10 | 0.00 | 2.17 | 17.54 | 96.38 | -37.83 | 56.06 | 0.7072 | 487.0 | 399.0 | |
| 0.00 | 3.71 | 0.00 | 2.59 | 17.29 | 96.25 | -37.97 | 56.46 | 0.7071 | 624.0 | 487.0 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 17.04 | 96.07 | -38.14 | 56.88 | 0.7074 | 523.0 | 425.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
