SDO HMI 2014-02-28 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.84 | 713.85 | 84.44 | 483.63 | -24.30 | 92.58 | -41.08 | 118.31 | 0.6799 | 30.6 | 21.6 | |
|
previous
or next observation for the same group /

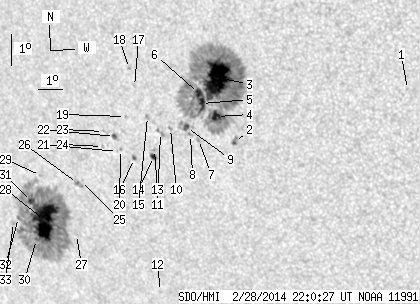

back to the solar disc SDO HMI 2014-02-28 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.66 | -23.25 | 104.04 | -29.62 | 122.67 | 0.5416 | 580.0 | 485.2 | |
| 0.69 | 3.79 | 0.44 | 2.42 | -24.43 | 96.97 | -36.69 | 120.36 | 0.6327 | 526.8 | 40.3 | |
| 47.33 | 373.56 | 29.94 | 237.32 | -22.40 | 96.94 | -36.72 | 117.27 | 0.6241 | 1153.4 | 356.3 | |
| 6.12 | -3.00 | 3.91 | -3.00 | -23.59 | 96.52 | -37.14 | 118.87 | 0.6342 | 973.5 | 999999 | |
| 7.07 | -3.00 | 4.53 | -3.00 | -23.15 | 96.06 | -37.60 | 118.00 | 0.6378 | 642.1 | 999999 | |
| 5.52 | -3.00 | 3.54 | -3.00 | -22.83 | 96.04 | -37.62 | 117.52 | 0.6367 | 731.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.17 | -24.24 | 95.56 | -38.10 | 119.40 | 0.6482 | 543.0 | 421.7 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -24.06 | 95.29 | -38.37 | 119.02 | 0.6505 | 433.0 | 413.0 | |
| 2.24 | 9.05 | 1.46 | 5.89 | -23.83 | 95.20 | -38.46 | 118.65 | 0.6506 | 600.2 | 107.2 | |
| 0.00 | 1.47 | 0.00 | 0.96 | -23.81 | 94.54 | -39.12 | 118.34 | 0.6582 | 345.0 | 244.6 | |
| 0.00 | 2.76 | 0.00 | 1.82 | -23.90 | 94.09 | -39.57 | 118.29 | 0.6637 | -630.0 | -305.5 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -28.82 | 91.98 | -41.68 | 124.20 | 0.7068 | -98.0 | -131.9 | |
| 0.00 | 1.55 | 0.00 | 1.03 | -24.40 | 93.64 | -40.02 | 118.82 | 0.6707 | -851.0 | -753.5 | |
| 2.33 | 3.97 | 1.55 | 2.65 | -24.62 | 93.52 | -40.14 | 119.07 | 0.6729 | -661.5 | -375.2 | |
| 0.00 | 2.16 | 0.00 | 1.43 | -23.37 | 93.73 | -39.93 | 117.38 | 0.6658 | 628.0 | 489.4 | |
| 0.69 | 2.16 | 0.47 | 1.46 | -24.61 | 92.70 | -40.96 | 118.75 | 0.6821 | -797.1 | -687.6 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -22.42 | 93.52 | -40.14 | 115.92 | 0.6648 | 444.0 | 345.7 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -21.86 | 93.51 | -40.15 | 115.09 | 0.6631 | 524.0 | 492.4 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -23.30 | 92.82 | -40.84 | 116.93 | 0.6760 | -431.0 | -442.4 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -24.29 | 92.22 | -41.44 | 118.11 | 0.6862 | -564.0 | -410.2 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -24.34 | 92.07 | -41.59 | 118.13 | 0.6881 | -443.0 | -513.2 | |
| 1.47 | 2.76 | 0.99 | 1.87 | -23.88 | 92.13 | -41.53 | 117.49 | 0.6858 | -709.4 | -631.2 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -23.69 | 91.72 | -41.94 | 117.08 | 0.6897 | 157.0 | 166.8 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -24.14 | 91.49 | -42.17 | 117.63 | 0.6938 | -189.0 | -238.5 | |
| 0.00 | 1.21 | 0.00 | 0.85 | -25.10 | 90.14 | -43.52 | 118.48 | 0.7118 | -625.0 | -384.5 | |
| 0.43 | 4.05 | 0.30 | 2.86 | -25.18 | 89.93 | -43.73 | 118.51 | 0.7143 | -703.0 | -613.0 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -26.74 | 89.13 | -44.53 | 120.33 | 0.7279 | -684.0 | -702.4 | |
| 46.47 | 290.28 | 34.01 | 212.82 | -26.19 | 87.90 | -45.76 | 119.19 | 0.7387 | -1036.0 | -330.1 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -24.80 | 88.40 | -45.26 | 117.50 | 0.7294 | -402.0 | -376.7 | |
| 0.69 | -28.00 | 0.51 | -28.00 | -26.74 | 87.23 | -46.43 | 119.69 | 0.7472 | -69.0 | 999999 | |
| 3.19 | -28.00 | 2.34 | -28.00 | -25.55 | 87.60 | -46.06 | 118.26 | 0.7399 | -719.6 | 999999 | |
| 0.60 | -28.00 | 0.45 | -28.00 | -25.99 | 86.75 | -46.91 | 118.58 | 0.7498 | -168.7 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.68 | -26.12 | 86.44 | -47.22 | 118.66 | 0.7533 | 88.0 | 60.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
