SDO HMI 2014-03-01 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.14 | 677.13 | 75.35 | 365.77 | -13.86 | 109.24 | -22.22 | 110.06 | 0.3931 | 267.4 | 58.3 | |
|
previous
or next observation for the same group /

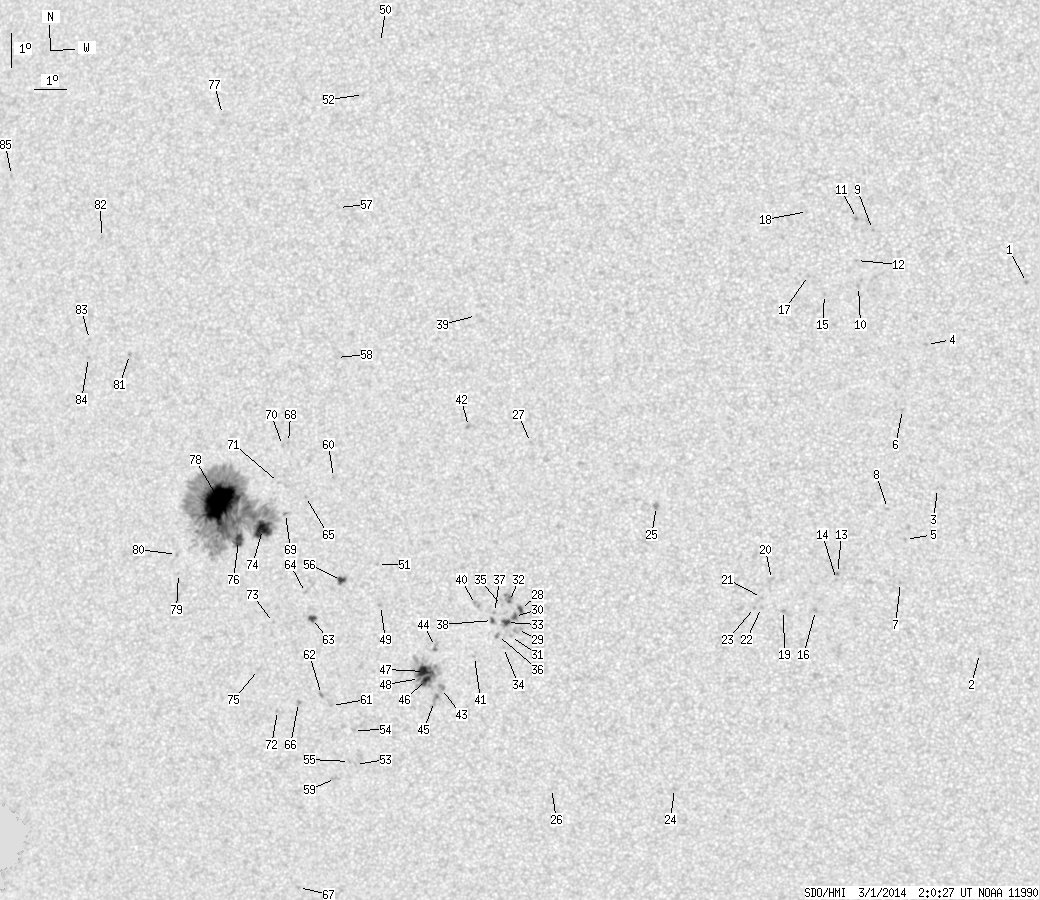

back to the solar disc SDO HMI 2014-03-01 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.81 | -6.96 | 132.07 | 0.61 | 294.28 | 0.0117 | 890.0 | 627.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -18.03 | 130.62 | -0.84 | 175.72 | 0.1888 | 706.0 | 615.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -13.07 | 129.36 | -2.10 | 160.71 | 0.1085 | 677.0 | 590.4 | |
| 0.00 | 1.38 | 0.00 | 0.68 | -8.79 | 129.07 | -2.39 | 123.47 | 0.0497 | 981.0 | 737.7 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -14.59 | 128.37 | -3.10 | 157.83 | 0.1392 | 851.0 | 648.1 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -10.71 | 128.33 | -3.14 | 138.59 | 0.0817 | 697.0 | 435.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -15.88 | 128.19 | -3.27 | 159.97 | 0.1610 | 748.0 | 621.7 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -13.66 | 127.83 | -3.63 | 151.25 | 0.1286 | 788.0 | 533.7 | |
| 0.00 | 1.04 | 0.00 | 0.51 | -5.36 | 127.48 | -3.98 | 64.95 | 0.0767 | 871.0 | 798.6 | |
| 0.00 | 1.81 | 0.00 | 0.90 | -7.05 | 127.04 | -4.42 | 87.90 | 0.0769 | 862.0 | 658.1 | |
| 0.00 | 1.64 | 0.00 | 0.81 | -5.03 | 127.00 | -4.46 | 63.85 | 0.0867 | 935.0 | 757.1 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -6.27 | 126.99 | -4.47 | 78.14 | 0.0796 | 860.0 | 698.2 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -15.59 | 126.25 | -5.21 | 149.03 | 0.1709 | 1005.0 | 844.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -15.77 | 126.21 | -5.25 | 149.42 | 0.1739 | 710.0 | 539.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -7.27 | 126.02 | -5.44 | 90.80 | 0.0946 | 731.0 | 508.8 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -16.69 | 125.53 | -5.93 | 149.05 | 0.1934 | 857.0 | 698.3 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -6.70 | 125.55 | -5.92 | 85.23 | 0.1032 | 925.0 | 678.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -4.80 | 125.54 | -5.92 | 67.93 | 0.1115 | 721.0 | 533.5 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -16.68 | 124.53 | -6.93 | 145.00 | 0.2024 | 857.0 | 692.5 | |
| 0.00 | 2.76 | 0.00 | 1.39 | -15.74 | 124.20 | -7.27 | 140.74 | 0.1933 | 121.0 | 233.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.28 | 123.86 | -7.60 | 141.27 | 0.2038 | 758.0 | 689.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.58 | 123.85 | -7.61 | 142.17 | 0.2079 | 792.0 | 588.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -16.57 | 123.63 | -7.83 | 141.38 | 0.2102 | 829.0 | 737.6 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -22.02 | 120.76 | -10.70 | 146.21 | 0.3109 | 654.0 | 468.4 | |
| 0.00 | 3.45 | 0.00 | 1.75 | -13.48 | 120.72 | -10.75 | 121.49 | 0.2136 | 948.0 | 733.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -21.90 | 116.73 | -14.73 | 137.47 | 0.3506 | -14.0 | -7.4 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -11.46 | 116.89 | -14.57 | 107.52 | 0.2597 | -836.0 | -617.8 | |
| 1.90 | 14.32 | 0.99 | 7.45 | -16.44 | 116.24 | -15.23 | 123.13 | 0.3021 | 1083.4 | 691.8 | |
| 0.00 | 4.92 | 0.00 | 2.56 | -17.04 | 116.09 | -15.37 | 124.59 | 0.3092 | 538.0 | 650.1 | |
| 1.64 | -28.00 | 0.85 | -28.00 | -16.65 | 116.03 | -15.43 | 123.38 | 0.3067 | 1000.8 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -17.25 | 115.85 | -15.62 | 124.75 | 0.3143 | 736.0 | 582.4 | |
| 0.60 | 6.12 | 0.31 | 3.18 | -16.19 | 115.91 | -15.56 | 121.88 | 0.3047 | 1108.1 | 922.2 | |
| 2.93 | -28.00 | 1.53 | -28.00 | -16.82 | 115.76 | -15.71 | 123.44 | 0.3119 | 948.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -17.57 | 115.59 | -15.87 | 125.22 | 0.3206 | 690.0 | 518.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -16.30 | 115.64 | -15.82 | 121.80 | 0.3093 | 752.0 | 594.6 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -17.20 | 115.43 | -16.03 | 123.98 | 0.3196 | 792.0 | 670.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -16.51 | 115.40 | -16.07 | 122.02 | 0.3144 | 485.0 | 428.9 | |
| 1.21 | 2.50 | 0.63 | 1.31 | -16.74 | 115.31 | -16.15 | 122.55 | 0.3175 | 793.3 | 642.2 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -7.64 | 115.39 | -16.08 | 92.50 | 0.2760 | 686.0 | 564.4 | |
| 0.00 | 3.02 | 0.00 | 1.58 | -16.24 | 114.81 | -16.66 | 120.45 | 0.3206 | 568.0 | 614.8 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -17.81 | 114.63 | -16.84 | 124.39 | 0.3356 | 623.0 | 427.0 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -10.92 | 114.97 | -16.49 | 104.00 | 0.2885 | 1062.0 | 871.3 | |
| 0.00 | 4.74 | 0.00 | 2.52 | -18.73 | 113.45 | -18.02 | 125.03 | 0.3592 | -875.0 | -863.4 | |
| 0.00 | 3.54 | 0.00 | 1.87 | -17.46 | 113.39 | -18.07 | 121.80 | 0.3498 | -775.0 | -667.3 | |
| 0.00 | 5.95 | 0.00 | 3.17 | -19.12 | 113.17 | -18.29 | 125.57 | 0.3661 | -921.0 | -789.6 | |
| 6.73 | 52.62 | 3.57 | 27.94 | -18.44 | 112.99 | -18.48 | 123.71 | 0.3630 | -1085.1 | -572.1 | |
| 11.73 | -46.00 | 6.23 | -46.00 | -18.20 | 112.95 | -18.52 | 123.07 | 0.3616 | -1130.0 | 999999 | |
| 0.43 | -46.00 | 0.23 | -46.00 | -18.40 | 112.76 | -18.70 | 123.33 | 0.3658 | -674.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -16.15 | 111.72 | -19.74 | 116.57 | 0.3643 | -829.0 | -647.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 0.61 | 112.55 | -18.91 | 68.21 | 0.3506 | 4.0 | 3.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -14.92 | 111.75 | -19.72 | 113.39 | 0.3567 | -824.0 | -663.5 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -0.92 | 112.01 | -19.45 | 72.87 | 0.3499 | 16.0 | 6.1 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -20.92 | 110.28 | -21.18 | 125.93 | 0.4187 | -689.0 | -587.8 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -19.88 | 110.36 | -21.10 | 123.84 | 0.4094 | -719.0 | -534.4 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -20.82 | 110.09 | -21.37 | 125.51 | 0.4203 | -627.0 | -532.7 | |
| 3.45 | 5.43 | 1.84 | 2.90 | -15.35 | 110.52 | -20.94 | 113.41 | 0.3772 | -1028.8 | -800.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -4.26 | 111.16 | -20.30 | 82.74 | 0.3503 | -13.0 | -3.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -8.70 | 110.91 | -20.56 | 95.54 | 0.3503 | 8.0 | 0.4 | |
| 0.00 | 3.19 | 0.00 | 1.75 | -21.32 | 109.53 | -21.93 | 125.90 | 0.4314 | -788.0 | -667.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -12.26 | 110.55 | -20.91 | 105.37 | 0.3633 | 904.0 | 781.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -19.09 | 109.73 | -21.74 | 121.45 | 0.4120 | -740.0 | -624.3 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -18.75 | 109.44 | -22.03 | 120.40 | 0.4135 | -804.0 | -693.2 | |
| 2.76 | 4.74 | 1.49 | 2.56 | -16.44 | 109.43 | -22.03 | 115.16 | 0.3991 | -962.2 | -744.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -15.65 | 109.29 | -22.17 | 113.16 | 0.3969 | -797.0 | -581.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.79 | 109.59 | -21.87 | 106.22 | 0.3800 | -751.0 | -576.2 | |
| 0.00 | 2.16 | 0.00 | 1.18 | -18.95 | 108.63 | -22.84 | 120.07 | 0.4259 | 948.0 | 779.8 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -24.61 | 107.64 | -23.82 | 130.03 | 0.4816 | -746.0 | -523.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -11.15 | 109.18 | -22.29 | 101.80 | 0.3817 | 771.0 | 671.1 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -13.26 | 108.89 | -22.58 | 107.04 | 0.3925 | -750.0 | -602.8 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -11.23 | 108.97 | -22.49 | 101.93 | 0.3851 | 716.0 | 623.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.33 | 108.75 | -22.72 | 104.62 | 0.3916 | -620.0 | -415.1 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -19.16 | 107.88 | -23.59 | 119.82 | 0.4375 | -638.0 | -594.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -16.50 | 108.12 | -23.35 | 114.23 | 0.4185 | -800.0 | -600.1 | |
| 19.58 | 478.52 | 10.61 | 261.26 | -13.70 | 108.08 | -23.38 | 107.66 | 0.4064 | -1183.7 | 96.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -17.89 | 107.42 | -24.05 | 116.74 | 0.4361 | -790.0 | -677.9 | |
| 7.76 | -74.00 | 4.23 | -74.00 | -13.99 | 107.24 | -24.22 | 107.89 | 0.4201 | -1017.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -1.30 | 107.50 | -23.97 | 77.19 | 0.4182 | -697.0 | -529.1 | |
| 78.42 | -74.00 | 42.84 | -74.00 | -12.83 | 106.77 | -24.70 | 104.95 | 0.4234 | 1308.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -14.87 | 105.10 | -26.36 | 108.73 | 0.4551 | -574.0 | -430.8 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -14.30 | 105.10 | -26.36 | 107.50 | 0.4530 | 606.0 | 409.9 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -8.26 | 104.12 | -27.34 | 94.03 | 0.4575 | -721.0 | -558.6 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -4.74 | 103.39 | -28.07 | 86.50 | 0.4718 | -810.0 | -724.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -7.74 | 102.80 | -28.66 | 92.91 | 0.4778 | -692.0 | -602.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -8.27 | 102.73 | -28.74 | 94.03 | 0.4789 | -688.0 | -548.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -2.70 | 100.38 | -31.08 | 83.26 | 0.5213 | -639.0 | -507.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
